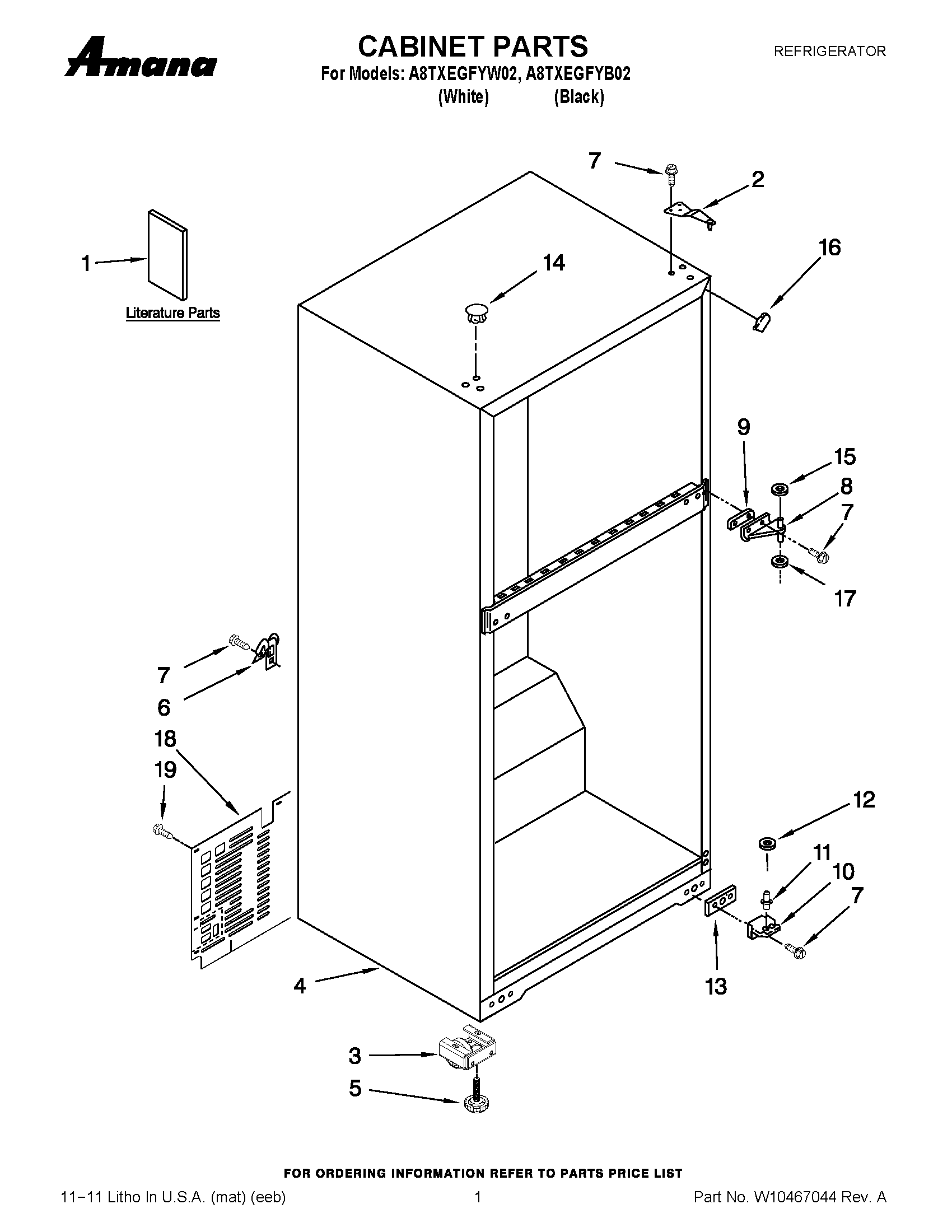

A8TXEGFYB02 01 – CABINET PARTS – Aparts

A8TXEGFYB02 01 – CABINET PARTS

Products

Position	Product
1	DO-IT-YOURSELF MANUAL REF./ FRZ.
1	MAY W10344152
1	MAY W10214129
1	MAY W10315504
2	MAY 2261963
3	ROLLER, FRONT
4	LINER (NOT A SERVICEABLE PART)
5	LEVELER SCREW
6	MAY 549193
7	MAY 489497
8	MAY 2166086
9	SHIM, HINGE CENTER (WHITE)
10	Hinge Butt, Btm
11	Hinge-Pin, Btm
13	MAY 2201567
14	MAY 2183998
14	HOLE PLUG
15	WASHER, PLASTIC
16	Corner Filler (Black)
16	Corner Filler
17	Washer (1/16)
18	MAY 2264132
19	MAY 489442
