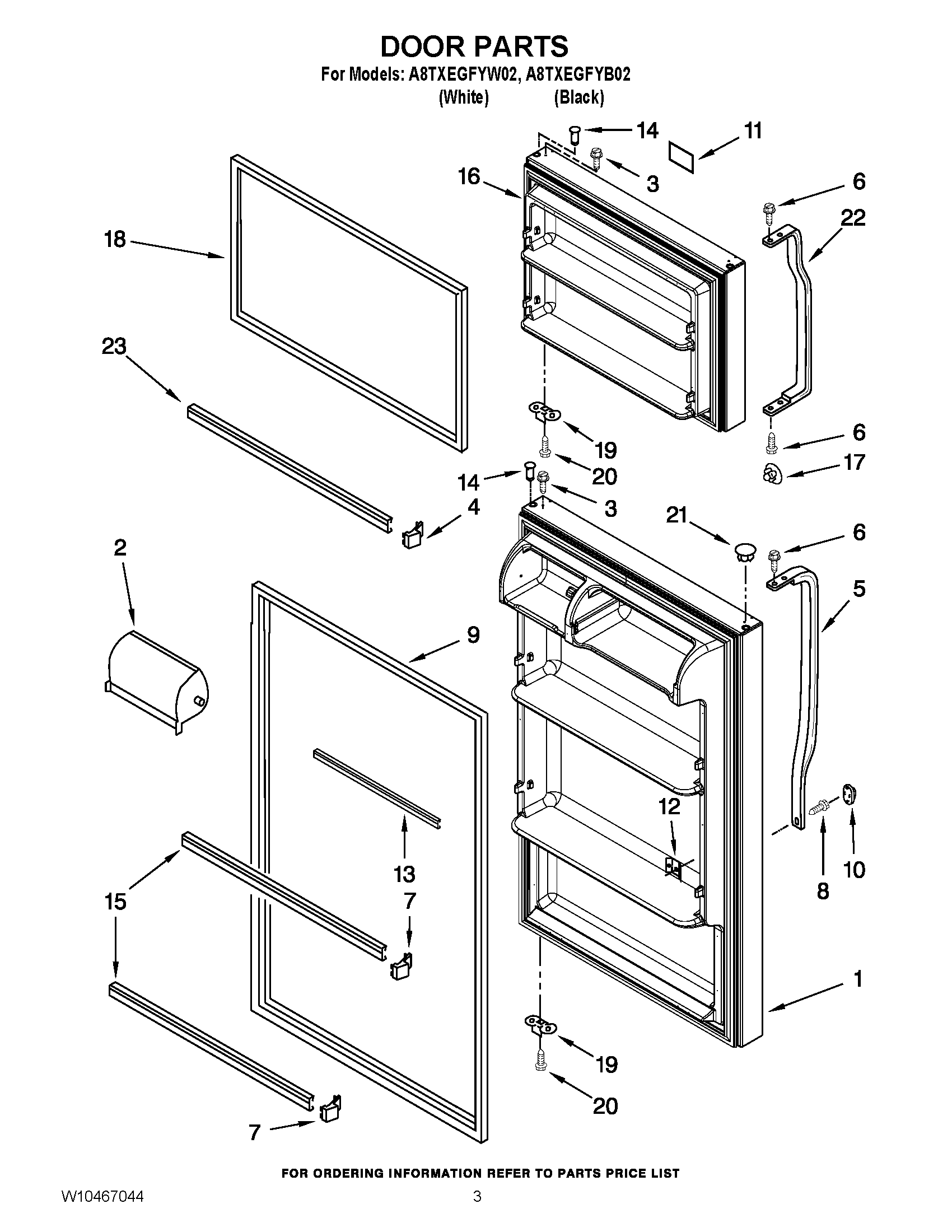

A8TXEGFYB02 02 – DOOR PARTS

Products

Position	Product
1	REFRIGERATOR DOOR (INCLUDES ILLUS. 9 & 14) (WHITE)
1	REFRIGERATOR DOOR (INCLUDES ILLUS. 9 & 14) (BLACK)
2	MAY 2207942
4	END CAP, TRIM
5	Handle, Refrigerator (White)
5	Handle, Refrigerator (Black)
6	MAY 489357
7	PLUG-TRIM
8	MAY 8281206
9	DOOR GASKET, MAGNETIC
9	GASKET, RC (BLACK)
10	SCREW COVER (BLACK)
10	Screw Cover (White)
11	NAMEPLATE (SILVER)
12	SCREW ANCHOR
13	MAY W10234242
14	MAY 2262054
15	MAY 2266738
16	FREEZER DOOR (INCLUDES ILLUS. 14, & 18) (WHITE)
16	FREEZER DOOR (INCLUDES ILLUS. 14, & 18) (BLACK)
17	MAY 2189009
17	Hole Plug, Handle
18	GASKET, FC (BLACK)
18	Door Gasket, Magnetic
19	MAY 2189202
20	MAY 488921
21	Hole Plug (Black)
21	MAY 2212648
22	Handle, Freezer (Black)
22	Handle, Freezer (White)
23	MAY 2266727
