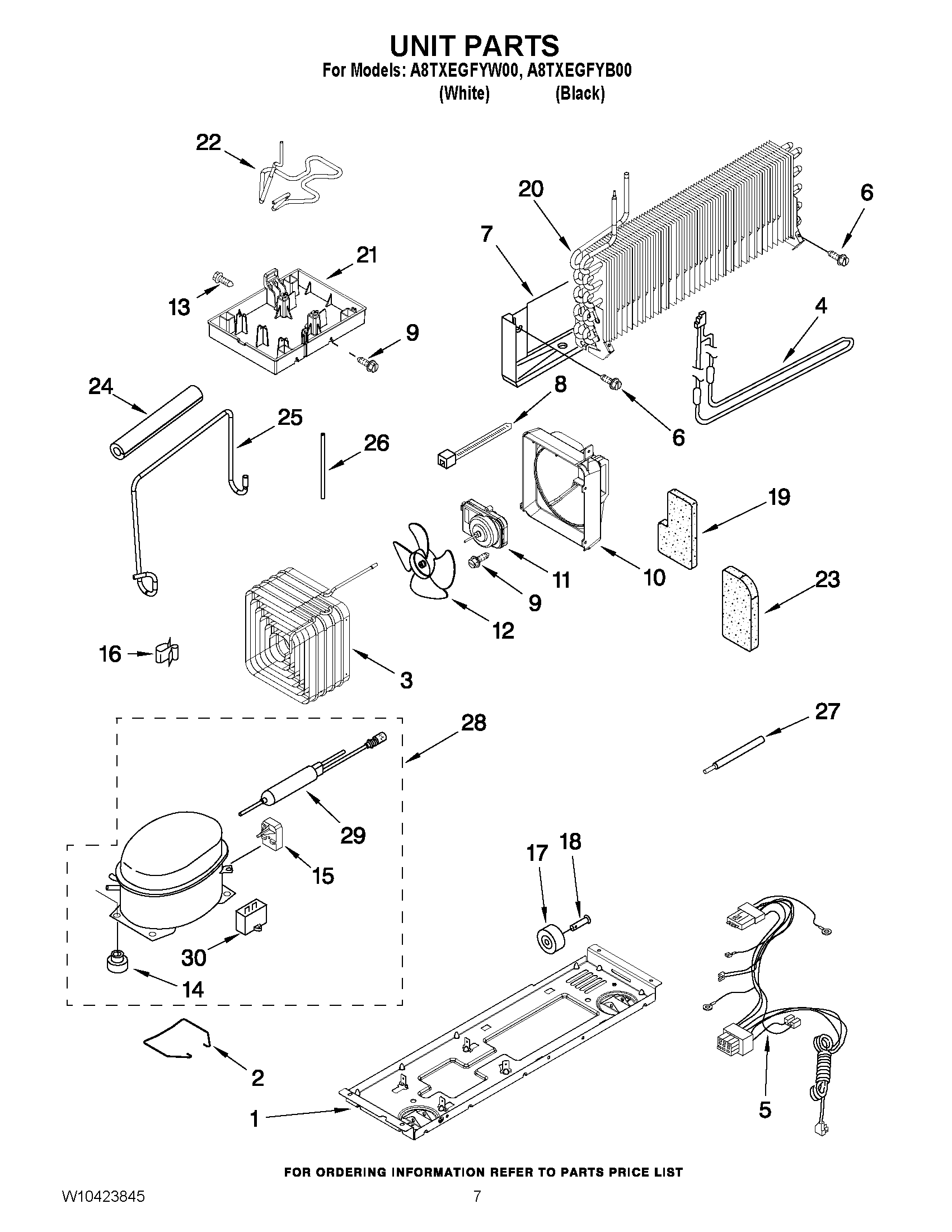

A8TXEGFYW00 04 – UNIT PARTSadmin2025-04-26T08:55:02+00:00A8TXEGFYW00 04 – UNIT PARTS
Products
| Position | Product |
|---|
| NI | MAY 876764 |
| NI | LINER (NOT A SERVICEABLE PART) |
| NI | Valve, Access (3/4``) |
| NI | Valve, Access (5/8``) |
| NI | Valve, Access (1/2``) |
| NI | VALVE, ACCESS (3/8``) |
| NI | Valve, Access (5/16``) |
| NI | VALVE, ACCESS (1/4``) |
| 1 | MAY W10222450 |
| 2 | MAY 2264835 |
| 3 | MAY 2264597 |
| 4 | MAY 2176942 |
| 5 | Wire Assy. Unit |
| 6 | MAY 489442 |
| 7 | MAY 2319224 |
| 8 | MAY 2263990 |
| 9 | MAY 8533859 |
| 10 | AIR BAFFLE |
| 11 | MOTOR, CONDENSOR |
| 12 | MAY 2264129 |
| 13 | MAY 2264841 |
| 14 | GROMMET (SERVICE) |
| 14 | Grommet (Production) |
| 15 | START DEVICE, COMBINATION (START RELAY AND OVERLOAD FOR PRODUCTION COMPRESSOR ONLY) (PRODUCTION) |
| 15 | START DEVICE, COMBINATION (START RELAY AND OVERLOAD FOR PRODUCTION COMPRESSOR ONLY) (SERVICE) |
| 16 | MAY 939054 |
| 17 | Roller |
| 18 | RIVET, AXLE |
| 19 | Wedge-Evap. |
| 20 | EVAPORATOR ASSY |
| 21 | Evaporating Tray |
| 22 | TUBE, DISCHARGE (INCL. PRE-COOLER) |
| 23 | MAY 2262192 |
| 24 | MAY 2264838 |
| 25 | MAY W10209727 |
| 26 | MAY 2264278 |
| 27 | PROCESS TUBE |
| 28 | COMPRESSOR (INCLUDES ITEMS 10, 16, 22 & 35) |
| 29 | Drier |
| 29 | DRIER (PRODUCTION) |
| 30 | Capacitator (Production) |
