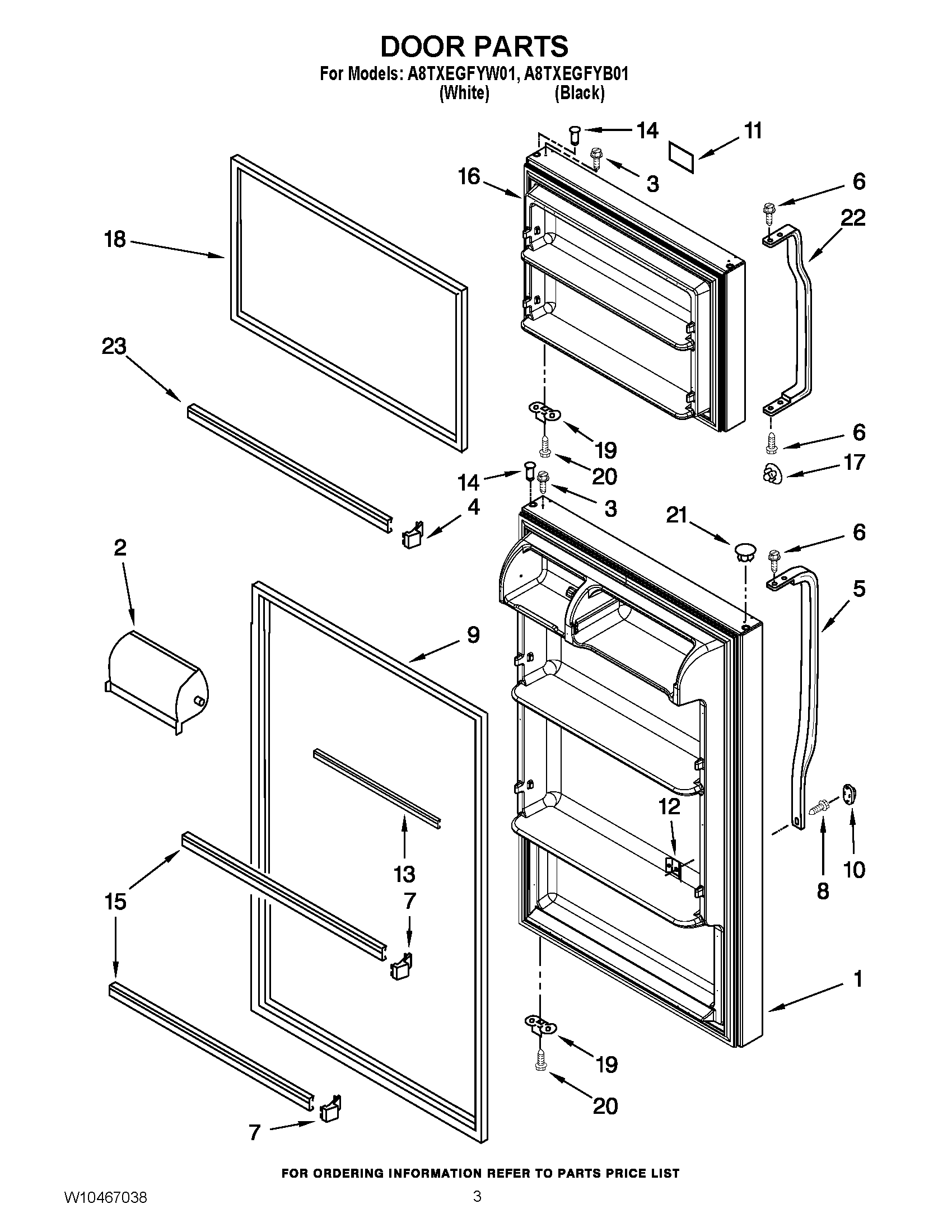

A8TXEGFYW01 02 – DOOR PARTSadmin2025-04-26T08:54:46+00:00A8TXEGFYW01 02 – DOOR PARTS
Products
| Position | Product |
|---|
| 1 | REFRIGERATOR DOOR (INCLUDES ILLUS. 9 & 14) (BLACK) |
| 1 | MAY 2264750W |
| 2 | MAY 2207942 |
| 4 | END CAP, TRIM |
| 5 | Handle, Refrigerator (Black) |
| 5 | Handle, Refrigerator (White) |
| 6 | MAY 489357 |
| 7 | PLUG-TRIM |
| 8 | MAY 8281206 |
| 9 | GASKET, RC (BLACK) |
| 9 | DOOR GASKET, MAGNETIC |
| 10 | Screw Cover (White) |
| 10 | SCREW COVER (BLACK) |
| 11 | NAMEPLATE (SILVER) |
| 12 | SCREW ANCHOR |
| 13 | MAY W10234242 |
| 14 | MAY 2262054 |
| 15 | MAY 2266738 |
| 16 | FREEZER DOOR (INCLUDES ILLUS. 14,18 & 24) (WHITE) |
| 16 | FREEZER DOOR (INCLUDES ILLUS. 14,18 & 24) (BLACK) |
| 17 | Hole Plug, Handle |
| 17 | MAY 2189009 |
| 18 | GASKET, FC (BLACK) |
| 18 | Door Gasket, Magnetic |
| 19 | MAY 2189202 |
| 20 | MAY 488921 |
| 21 | Hole Plug (Black) |
| 21 | MAY 2212648 |
| 22 | Handle, Freezer (White) |
| 22 | Handle, Freezer (Black) |
| 23 | MAY 2266727 |
