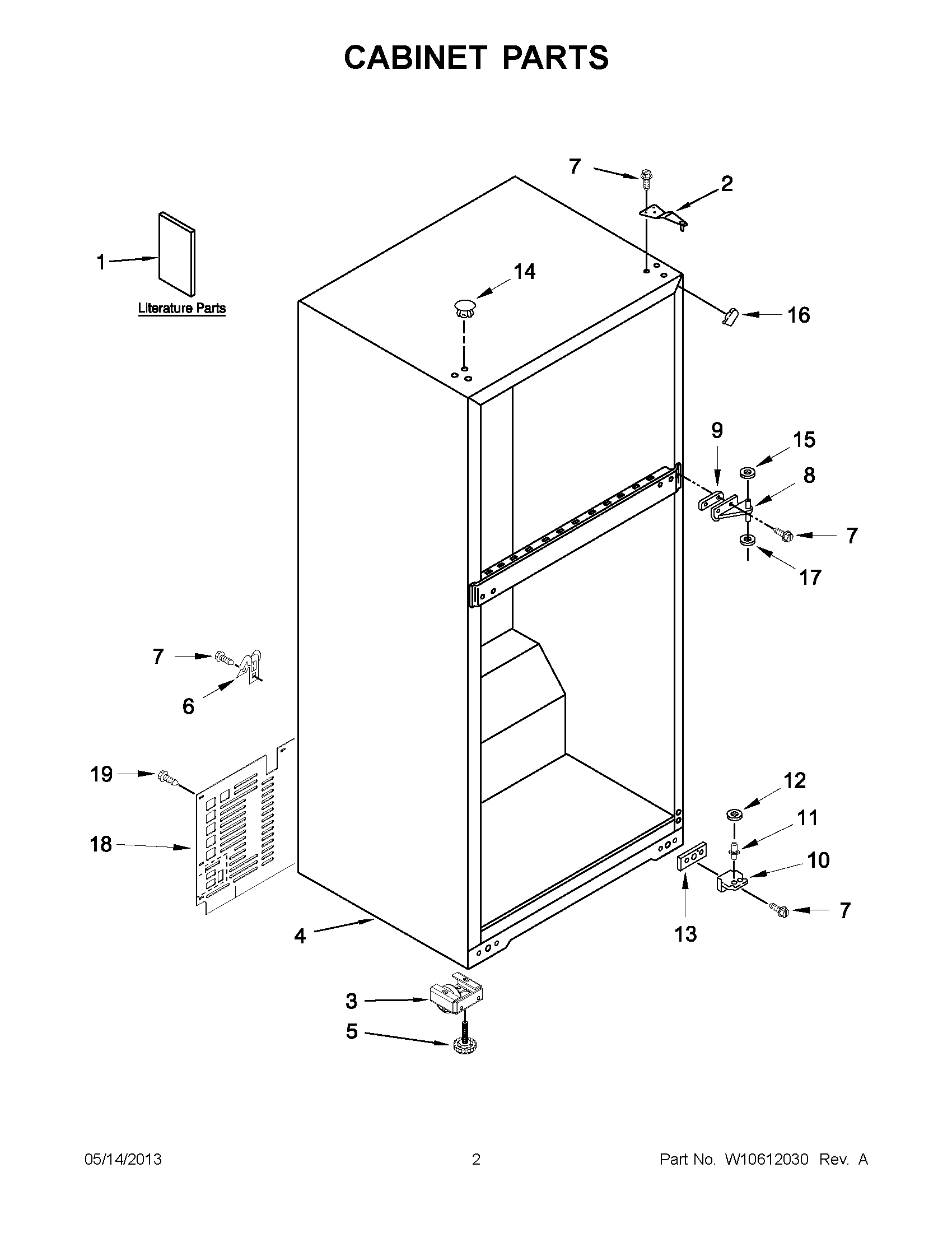

A8TXNGFBW00 01 – CABINET PARTS

A8TXNGFBW00 01 – CABINET PARTS

Written by

in

A8TXNGFBW00 01 – CABINET PARTS

Products

PositionProduct
1DO-IT-YOURSELF MANUAL REF./ FRZ.
1MAY W10594984
1MAY W10402929
1MAY W10214129
2MAY 2261963
3ROLLER, FRONT
4LINER (NOT A SERVICEABLE PART)
5LEVELER SCREW
6MAY 549193
7MAY 489497
8MAY 2166086
9SHIM, HINGE CENTER (WHITE)
10Hinge Butt, Btm
11Hinge-Pin, Btm
13MAY 2201567
14MAY W10520304
15WASHER, PLASTIC
16Corner Filler
17Washer (1/16)
18MAY 2264132
19MAY 489442
