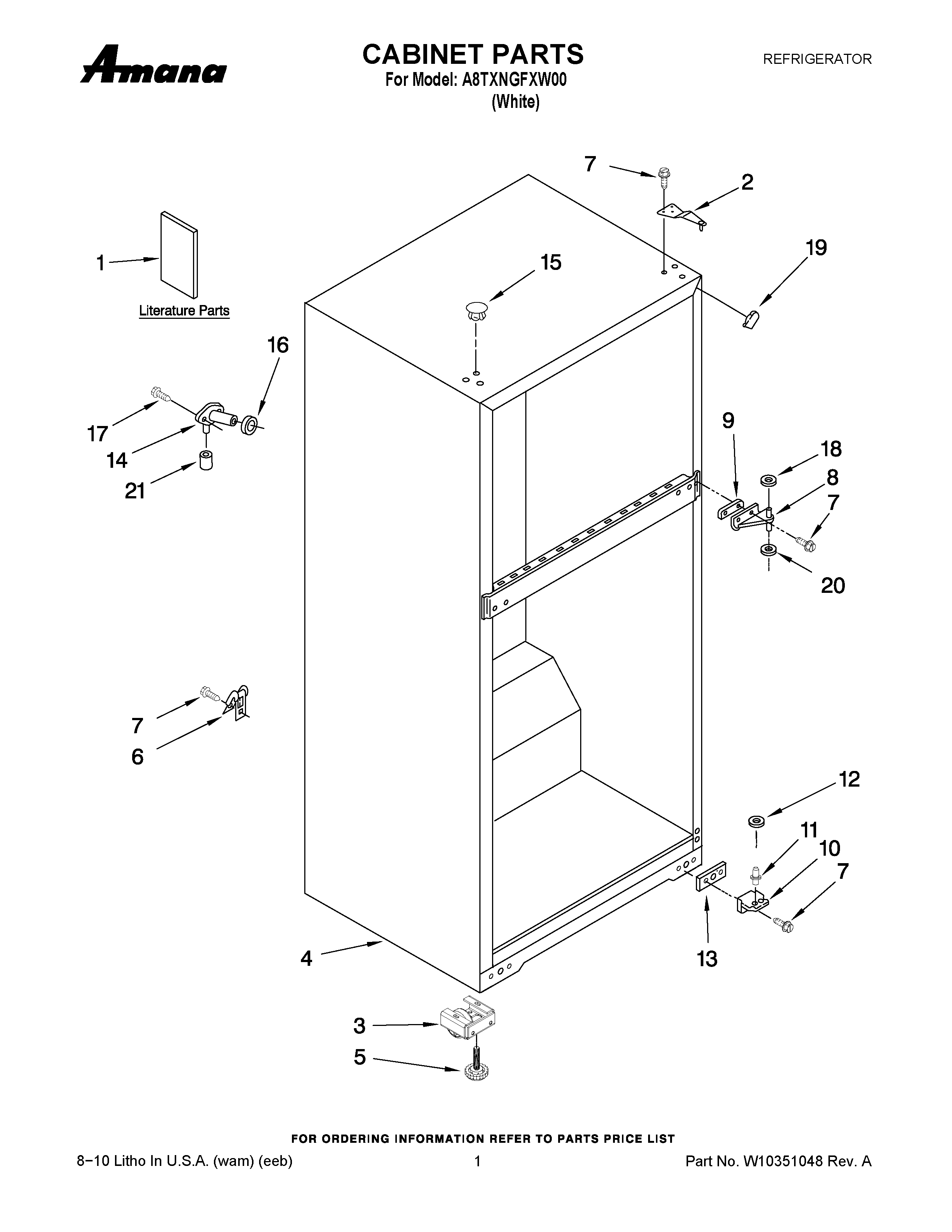

A8TXNGFXW00 01 – CABINET PARTS

A8TXNGFXW00 01 – CABINET PARTS

Written by

in

A8TXNGFXW00 01 – CABINET PARTS

Products

PositionProduct
1DO-IT-YOURSELF MANUAL REF./ FRZ.
1MAY W10287912
1MAY W10283801
1MAY W10214129
2MAY 2261963
3ROLLER, FRONT
4LINER (NOT A SERVICEABLE PART)
5LEVELER SCREW
6MAY 549193
7MAY 489497
8MAY 2166086
9SHIM, HINGE CENTER (WHITE)
10Hinge Butt, Btm
11Hinge-Pin, Btm
13MAY 2201567
14MAY 2174760
15HOLE PLUG
16Seal
17MAY 2262176
18WASHER, PLASTIC
19Corner Filler
20Washer (1/16)
21CAP BUSHING
