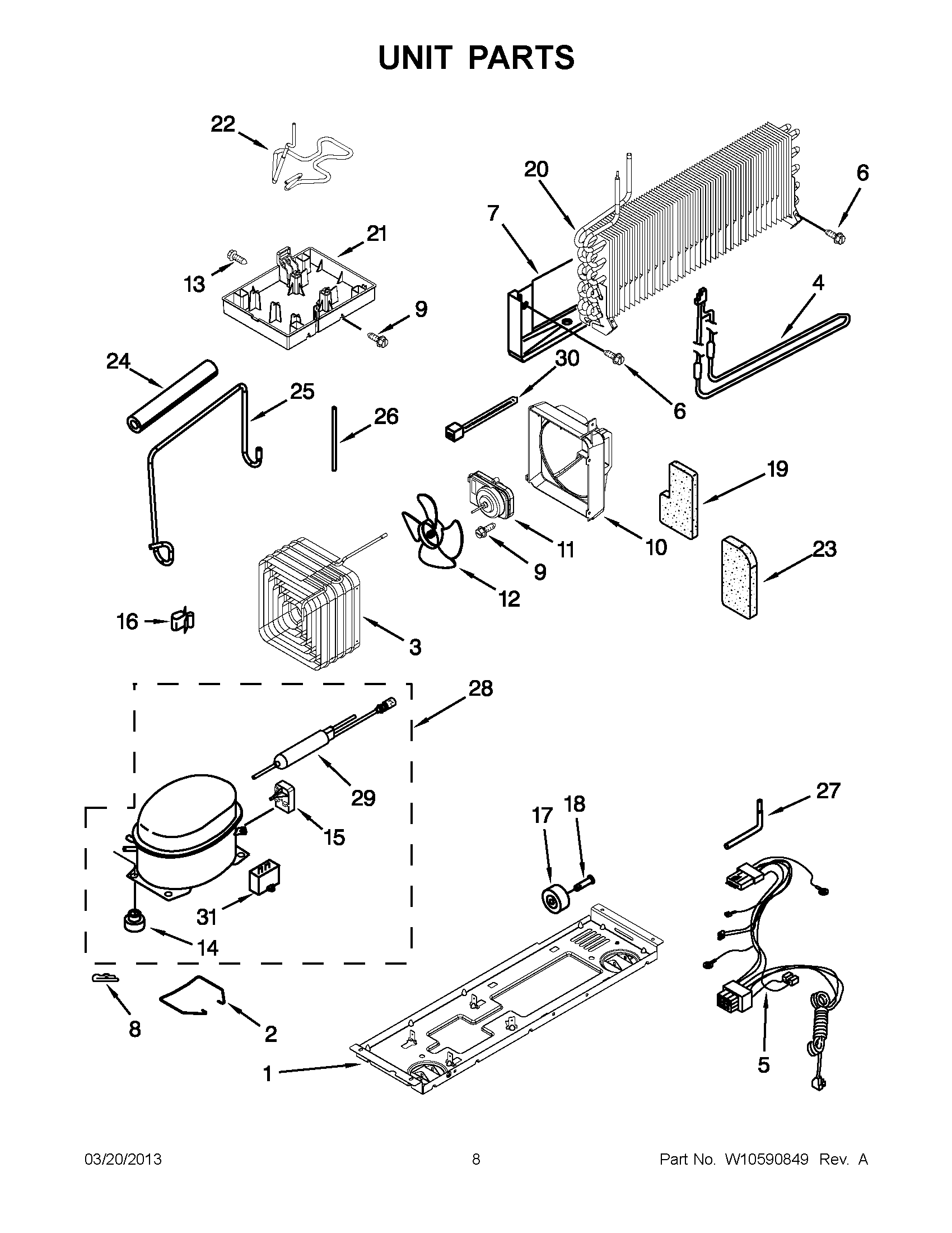

A8TXNGFXW02 04 – UNIT PARTS

Products

Position	Product
NI	MAY 876764
NI	LINER (NOT A SERVICEABLE PART)
NI	Valve, Access (3/4``)
NI	Valve, Access (5/8``)
NI	Valve, Access (1/2``)
NI	VALVE, ACCESS (3/8``)
NI	Valve, Access (5/16``)
NI	VALVE, ACCESS (1/4``)
1	MAY W10222450
2	MAY 2264835
3	MAY 2264004
4	MAY 2176942
5	Wire Assy. Unit
6	MAY 489442
7	MAY 2319224
8	MAY 24364001
9	MAY 8533859
10	AIR BAFFLE
11	MAY 2188875
12	MAY 2264129
13	MAY 2264841
14	Grommet (Production)
15	START DEVICE,
16	MAY 939054
17	MAY W10475495
18	RIVET, AXLE
19	Wedge-Evap.
20	EVAPORATOR ASSY
21	Evaporating Tray
22	TUBE, DISCHARGE (INCL. PRE-COOLER)
23	MAY 2262192
24	MAY 2264838
25	MAY W10401891
26	MAY 2264278
27	MAY VS20001
28	COMPRESSOR (ALSO ORDER 482801 INSTALLATION KIT & 876765 TUBE KIT)
29	DRIER (PRODUCTION)
30	MAY 2263990
31	CAPACITOR
