A8TXNWFBW00 01 – CABINET PARTS – Aparts

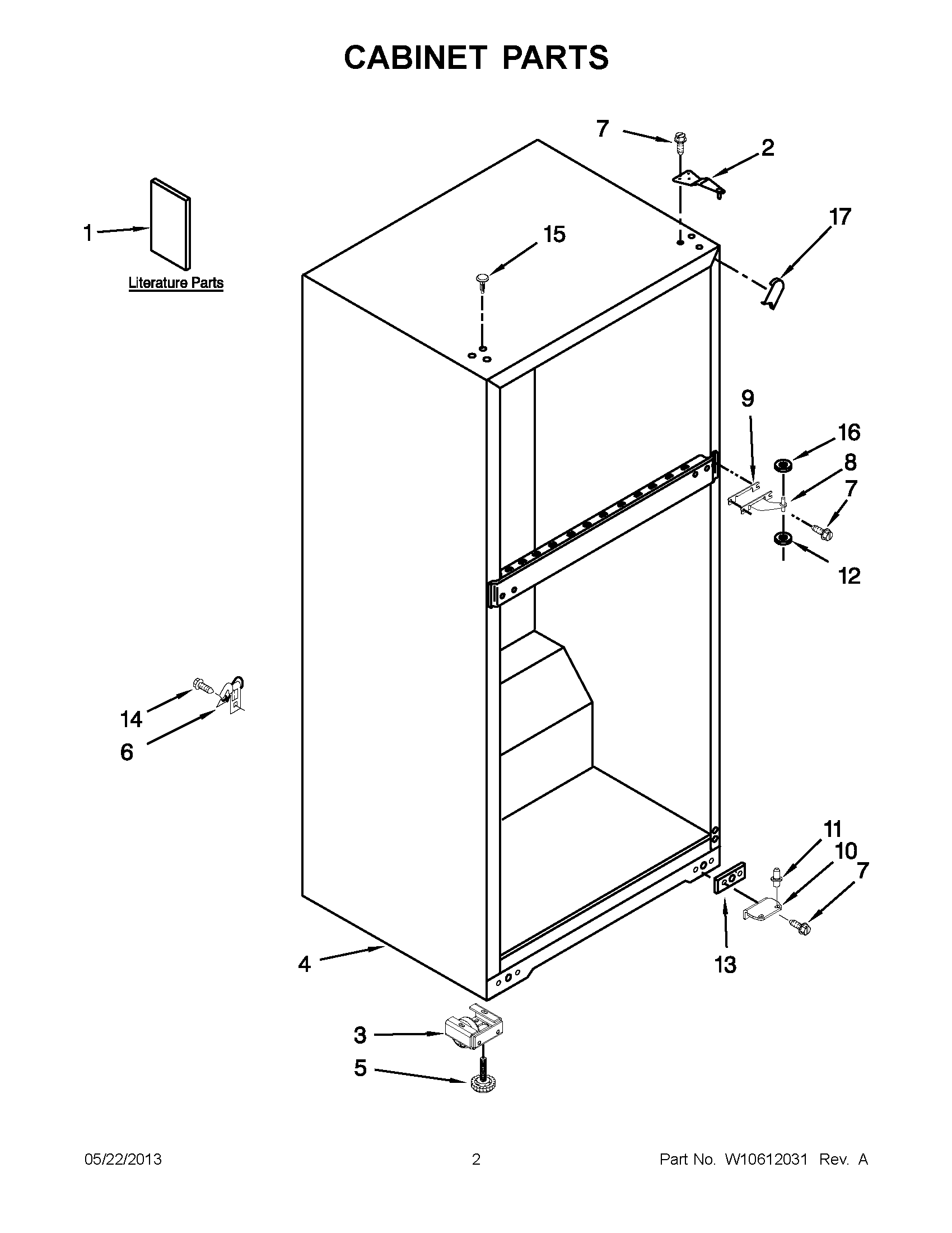

A8TXNWFBW00 01 – CABINET PARTS

Products

Position	Product
1	DO-IT-YOURSELF MANUAL REF./ FRZ.
1	MAY W10594983
1	MAY W10499330
1	MAY W10214129
2	MAY 2261963
3	ROLLER, FRONT
4	LINER (NOT A SERVICEABLE PART)
5	LEVELER SCREW
6	MAY 549193
7	MAY 489497
8	MAY 2166086
9	SHIM, HINGE CENTER (WHITE)
10	Hinge Butt, Btm
11	Hinge-Pin, Btm
12	Washer (1/16)
13	MAY 2201567
14	MAY 489442
15	HOLE PLUG (BLACK)
15	MAY W10520304
16	WASHER, PLASTIC
17	Corner Filler (Black)
17	Corner Filler
