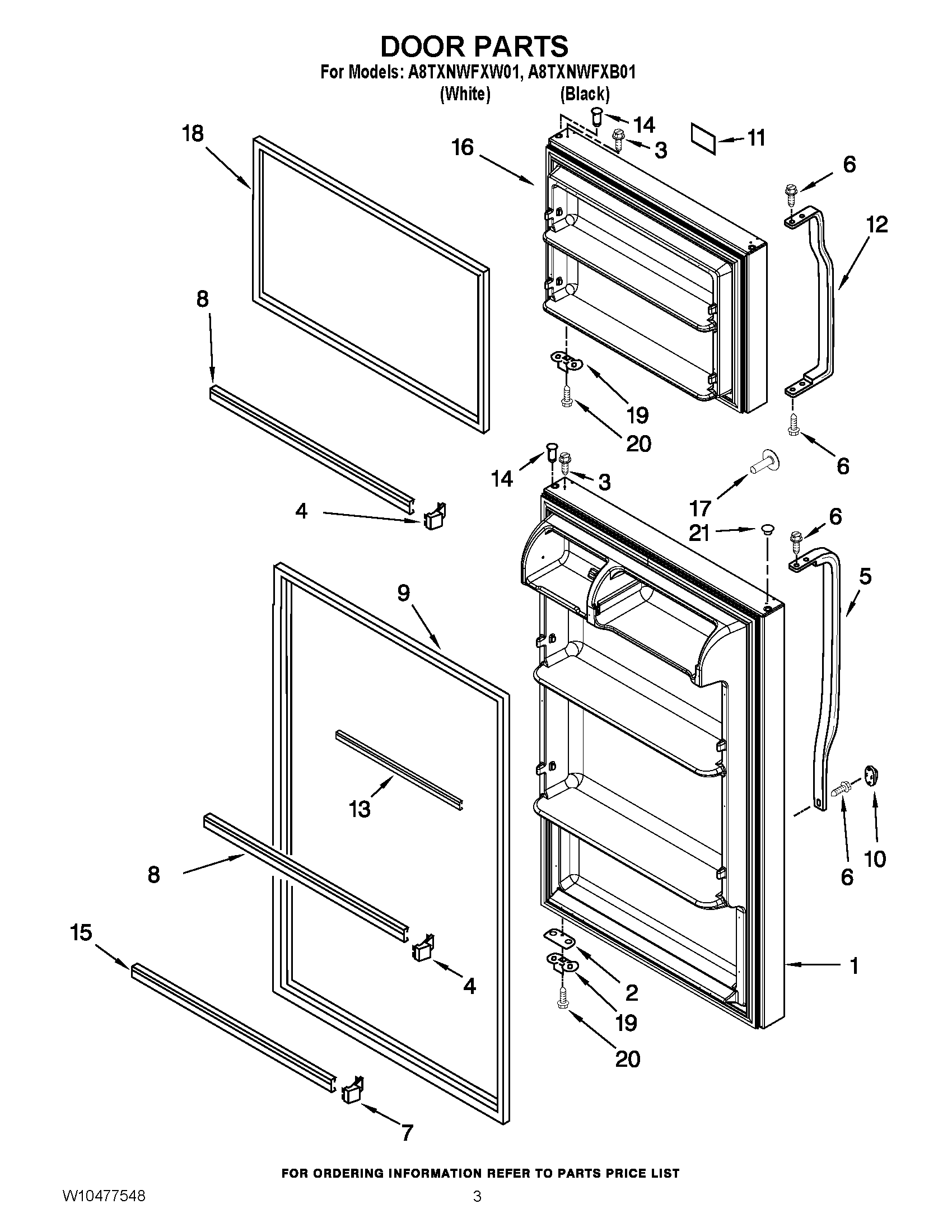

A8TXNWFXB01 02 – DOOR PARTS

Products

Position	Product
1	MAY 2263256B
1	REFRIGERATOR DOOR (INCLUDES ILLUS. 2, 9, 12 & 14) (WHITE)
2	Shim, Door Stop (Black)
2	Shim, Door Stop (White)
3	MAY 8281206
4	END CAP, TRIM
5	Handle, Refrigerator (White)
5	Handle, Refrigerator (Black)
6	MAY 489357
7	PLUG-TRIM
8	MAY 2266727
9	DOOR GASKET, MAGNETIC
9	GASKET, RC (BLACK)
10	SCREW COVER (BLACK)
10	Screw Cover (White)
11	NAMEPLATE (SILVER)
12	Handle, Freezer (White)
12	Handle, Freezer (Black)
13	MAY W10234242
14	MAY 2262054
15	MAY 2266738
16	FREEZER DOOR (INCLUDES ILLUS. 14,18 & 24) (WHITE)
16	FREEZER DOOR (INCLUDES ILLUS. 14,18 & 24) (BLACK)
17	MAY 2189009
17	Hole Plug, Handle
18	Door Gasket, Magnetic
18	GASKET, FC (BLACK)
19	MAY 2189202
20	MAY 488921
21	Hole Plug (Black)
21	MAY 2212648
