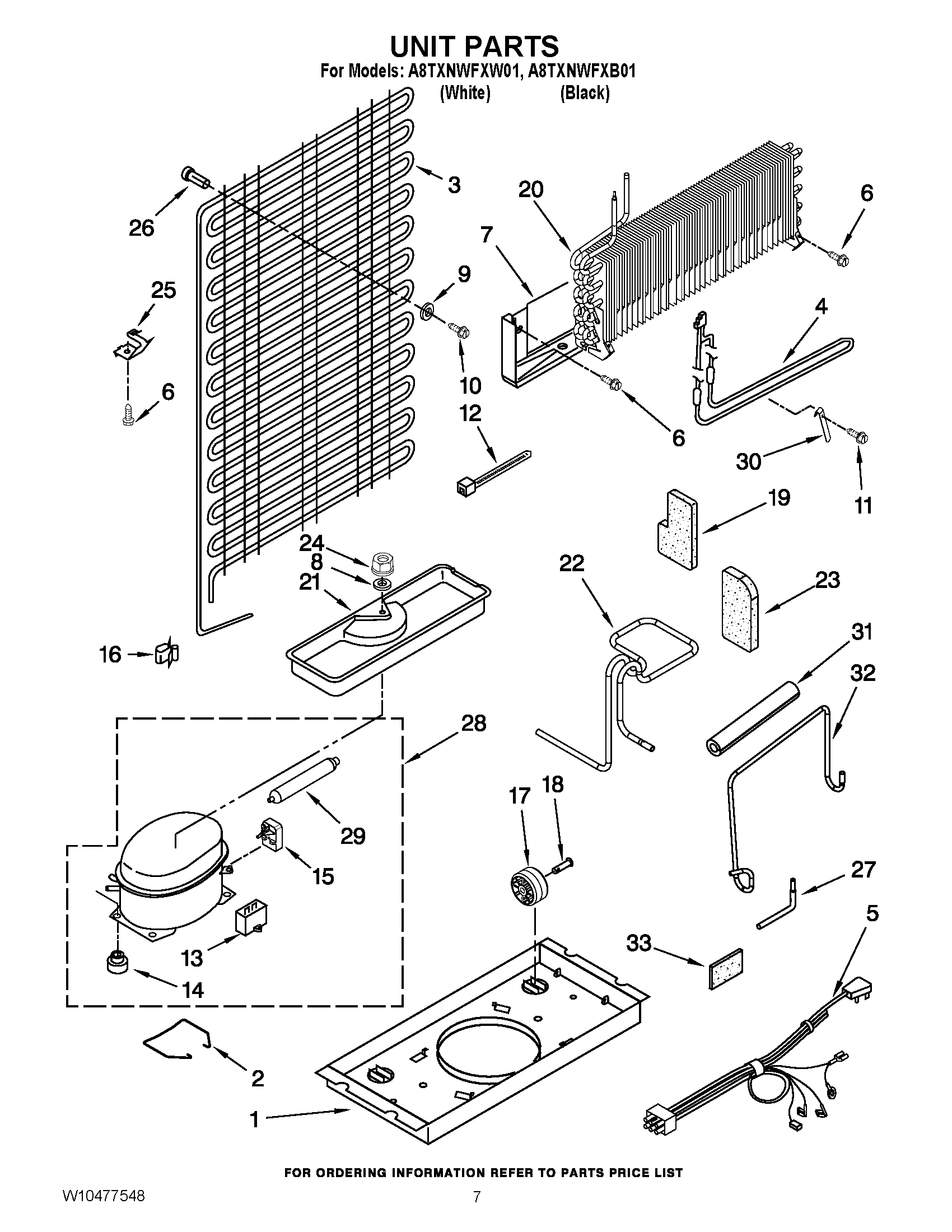

A8TXNWFXW01 04 – UNIT PARTS

Products

Position	Product
NI	MAY 876764
NI	VALVE, ACCESS (1/4``)
NI	Valve, Access (5/16``)
NI	VALVE, ACCESS (3/8``)
NI	Valve, Access (1/2``)
NI	Valve, Access (5/8``)
NI	Valve, Access (3/4``)
NI	LINER (NOT A SERVICEABLE PART)
1	MAY W10222451
2	STRAP, BALE
3	MAY W10219349
4	MAY 2176942
5	WIRE ASSEMBLY UNIT
6	MAY 489442
7	MAY 2319224
8	Washer (7/64)
9	MAY VS611
10	MAY 8533892
11	MAY 489478
12	MAY 2263990
13	CAPACITOR
14	Grommet (Production)
15	START DEVICE,
16	MAY 939054
17	Roller
18	RIVET, AXLE
19	Wedge-Evap.
20	EVAPORATOR ASSY
21	TRAY, EVAPORATOR
22	MAY W10442467
23	MAY 2262192
24	MAY 489153
25	MAY 2172892
26	MAY 2258452
27	MAY VS20001
28	COMPRESSOR (ALSO ORDER 482801 INSTALLATION KIT & 876765 TUBE KIT)
29	DRIER (PRODUCTION)
30	MAY 2258429
31	MAY 2264838
32	MAY W10442468
33	MAY 2215468
