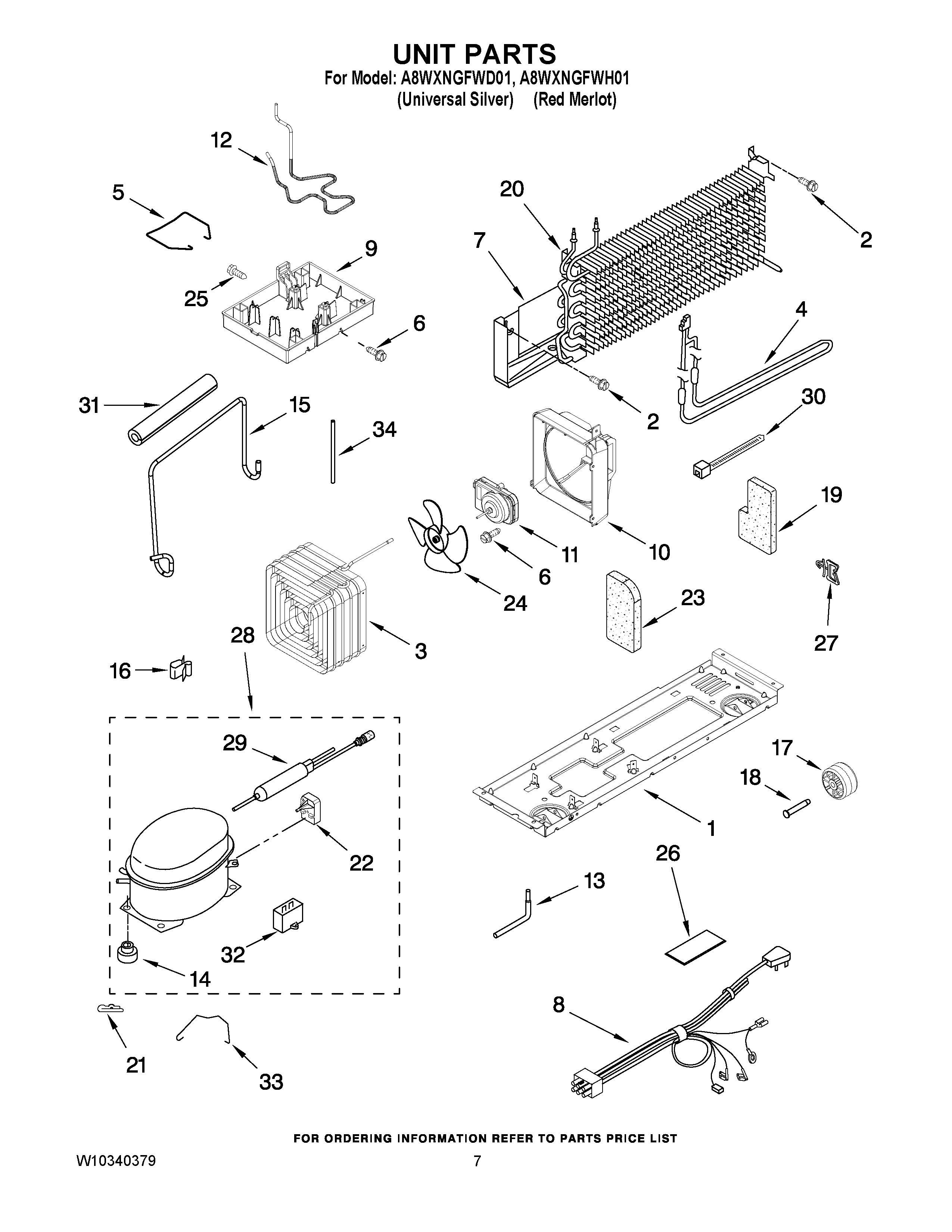

A8WXNGFWH01 04 – UNIT PARTS

Products

Position	Product
NI	Valve, Access (1/2``)
NI	MAY 876764
NI	VALVE, ACCESS (1/4``)
NI	Valve, Access (5/16``)
NI	VALVE, ACCESS (3/8``)
NI	LINER (NOT A SERVICEABLE PART)
NI	Valve, Access (5/8``)
NI	Valve, Access (3/4``)
1	MAY W10222450
2	MAY 489442
3	MAY 2264004
4	MAY 2176942
5	MAY 2264835
6	MAY 8533859
7	MAY 2319224
8	Wire Assy. Unit
9	Evaporating Tray
10	MAY 2263929
11	MAY 2188875
12	TUBE, DISCHARGE (INCL. PRE-COOLER)
13	MAY VS20001
14	Grommet (Production)
15	MAY 2264131
16	MAY 939054
17	Roller
18	RIVET, AXLE
19	Wedge-Evap.
20	EVAPORATOR ASSY
21	MAY 24364001
22	START-DEVICE, COMBINATION (START RELAY AND OVERLOAD) (SERVICE)
23	MAY 2262192
24	MAY 2264129
25	MAY 2264841
26	SHIELD-ELECTRICAL
27	CLIP-HARNESS
28	COMPRESSOR (INCLUDES ITEMS 12,13,14 & 27) (ALSO ORDER 482801 INSTALLATION KIT & 876765 TUBE KIT)
29	Drier
29	DRIER (PRODUCTION)
30	MAY 2263990
31	MAY 2264838
32	CAPACITATOR (SERVICE)
32	Capacitator (Production)
33	STRAP, BALE
34	MAY 2264278
