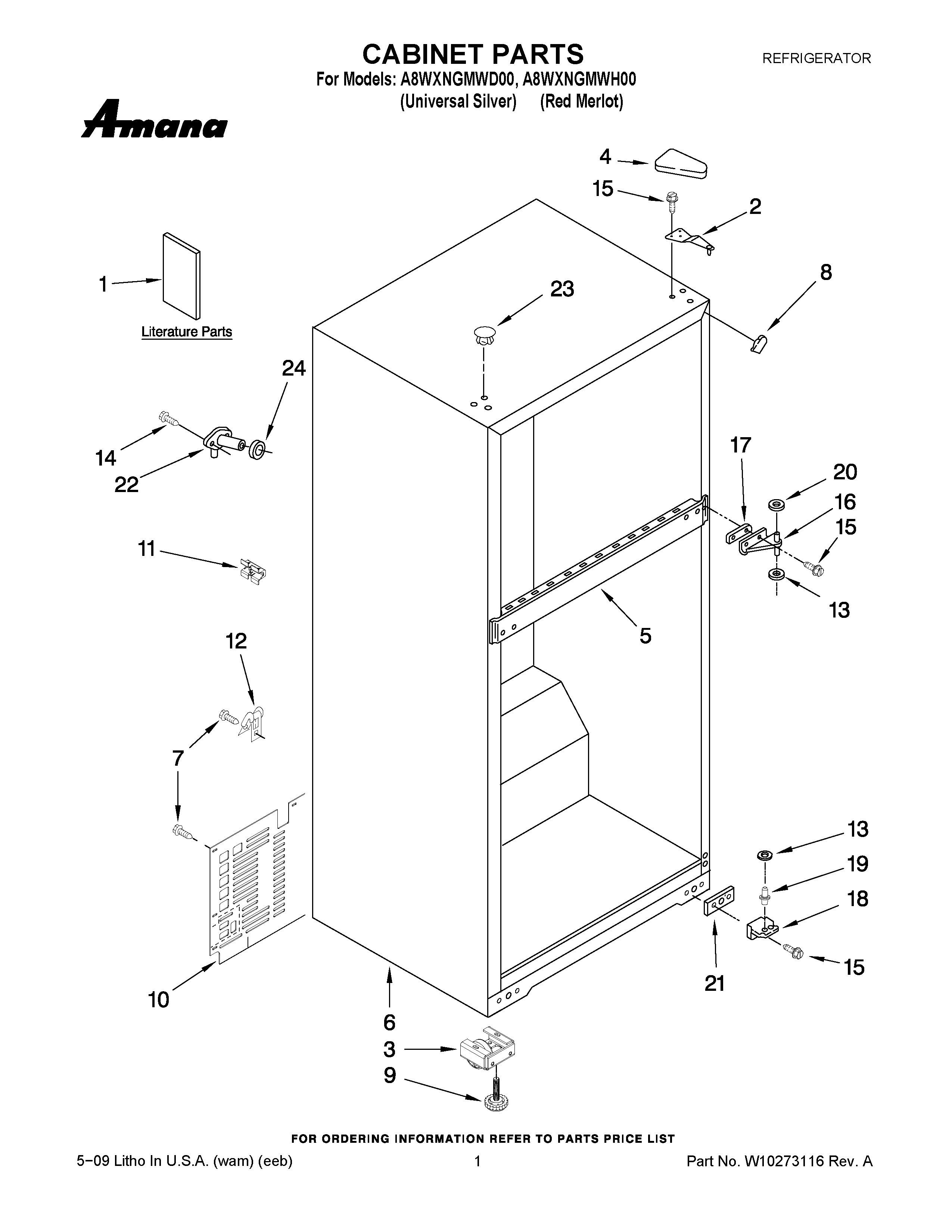

A8WXNGMWH00 01 – CABINET PARTS

Products

Position	Product
1	MAY 2265591
1	MAY W10211589
1	MAY W10211588
1	DO-IT-YOURSELF MANUAL REF./ FRZ.
2	MAY 2261963
3	ROLLER, FRONT
4	COVER, HINGE
7	MAY 489442
8	CORNER FILLER
9	LEVELER SCREW
10	MAY 2266389
11	SPACER, BACK CB
12	MAY 549193
13	Washer (1/16)
14	MAY 2262176
15	MAY 489497
16	MAY 2166086
17	SHIM, HINGE CENTER (WHITE)
18	Hinge Butt, Btm
19	Hinge-Pin, Btm
20	WASHER, PLASTIC
21	MAY 2201567
22	MAY 2174760
23	HOLE PLUG
24	Seal
