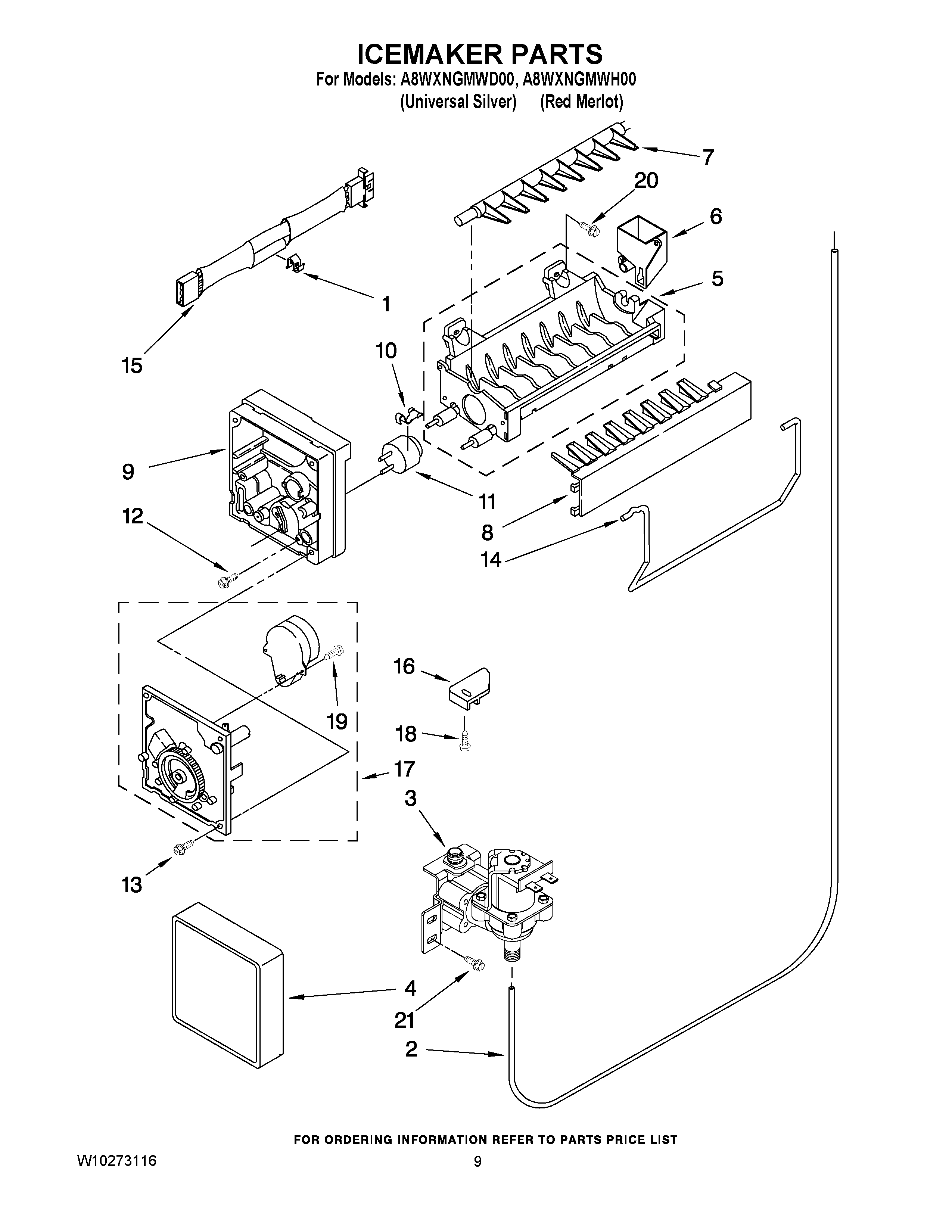

A8WXNGMWH00 05 – ICEMAKER PARTS

Products

Position	Product
1	Clip
2	TUBE WATER
3	Valve Solenoid (Single)
4	MAY 2174157
5	MAY W10122527
6	Cup, Fill
7	MAY 627843
8	ICE STRIPPER
9	MAY 2194712
10	MAY 2315522
11	Thermostat (Also Order 542369 Cement Alumilastic)
12	MAY 8533917
13	MAY 489276
14	MAY 627792
15	MAY 2187464
16	MAY 628320
17	MODULE ASSEMBLY (INCLUDES ITEM 24)
18	MAY 489478
19	MAY 489136
20	Screw
21	MAY 489442
100	MAY W10190952
