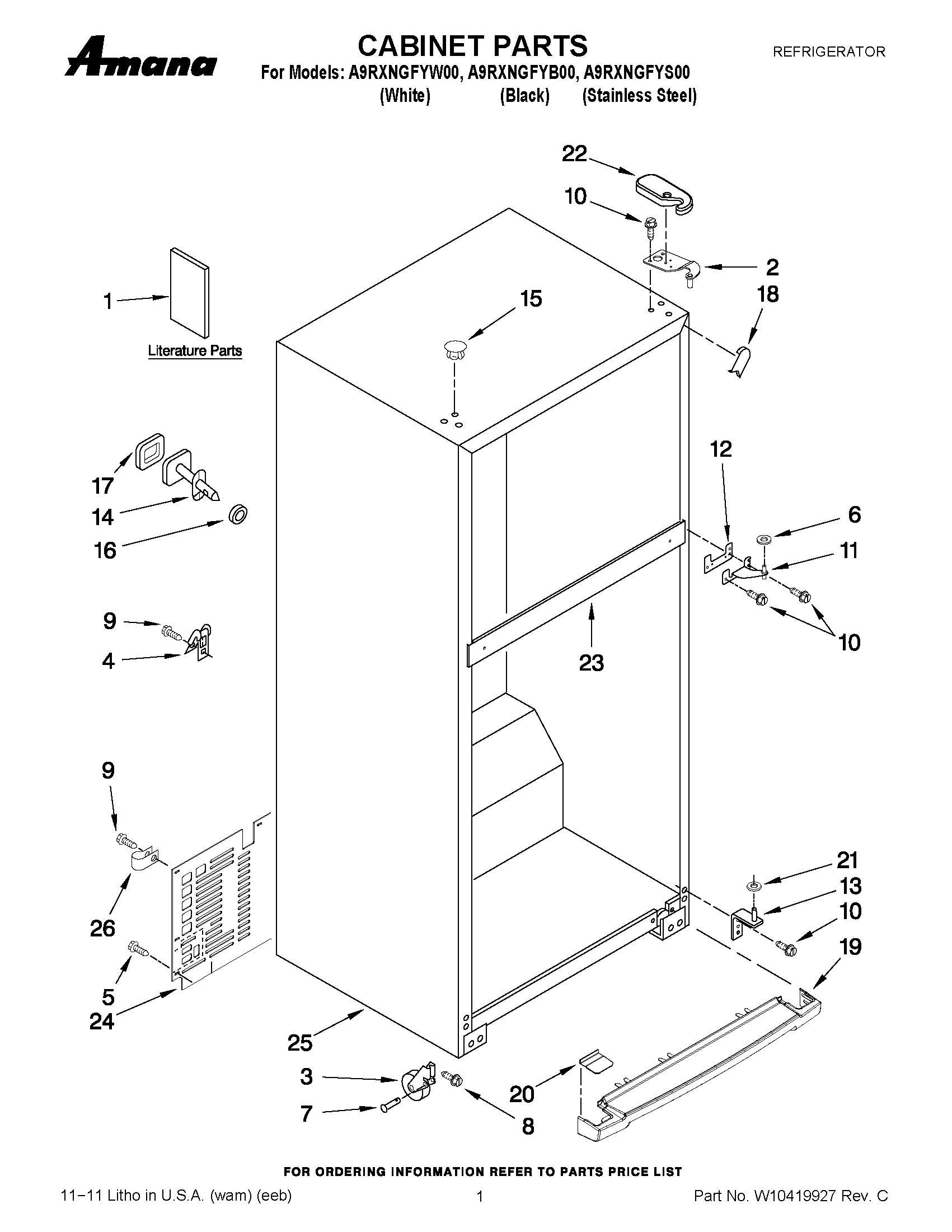

A9RXNGFYS00 01 – CABINET PARTSadmin2025-04-26T08:55:32+00:00A9RXNGFYS00 01 – CABINET PARTS
Products
| Position | Product |
|---|
| NI | DO-IT-YOURSELF MANUAL REF./ FRZ. |
| 1 | SERVICE & WIRING SHEET |
| 1 | MAY W10359281 |
| 1 | MAY W10359280 |
| 2 | HINGE (TOP) |
| 3 | ROLLER, FRONT |
| 4 | MAY 549193 |
| 5 | MAY 489427 |
| 6 | WASHER, PLASTIC |
| 7 | MAY 2179826 |
| 8 | MAY 3400517 |
| 9 | MAY 8281265 |
| 10 | MAY 489497 |
| 11 | MAY 2254618 |
| 12 | MAY 2183852 |
| 13 | MAY 2254473 |
| 15 | MAY 2183998 |
| 15 | HOLE PLUG |
| 18 | CORNER FILLER (WHITE) |
| 18 | CORNER FILLER (BLACK) |
| 19 | GRILLE (INCLUDES ILLUS. 20) (WHITE) |
| 19 | GRILLE (INCLUDES ILLUS. 20) (BLACK) |
| 20 | ENDCAP, GRILLE (WHITE) |
| 20 | ENDCAP, GRILLE (BLACK) |
| 21 | Washer (1/16) |
| 22 | COVER, HINGE (WHITE, RS) |
| 22 | COVER, HINGE (WHITE, LS) |
| 22 | COVER, HINGE (BLACK, RS) |
| 22 | COVER, HINGE (BLACK, LS) |
| 24 | MAY W10384413 |
| 25 | LINER (NOT A SERVICEABLE PART) |
| 26 | CLAMP, TUBE |
