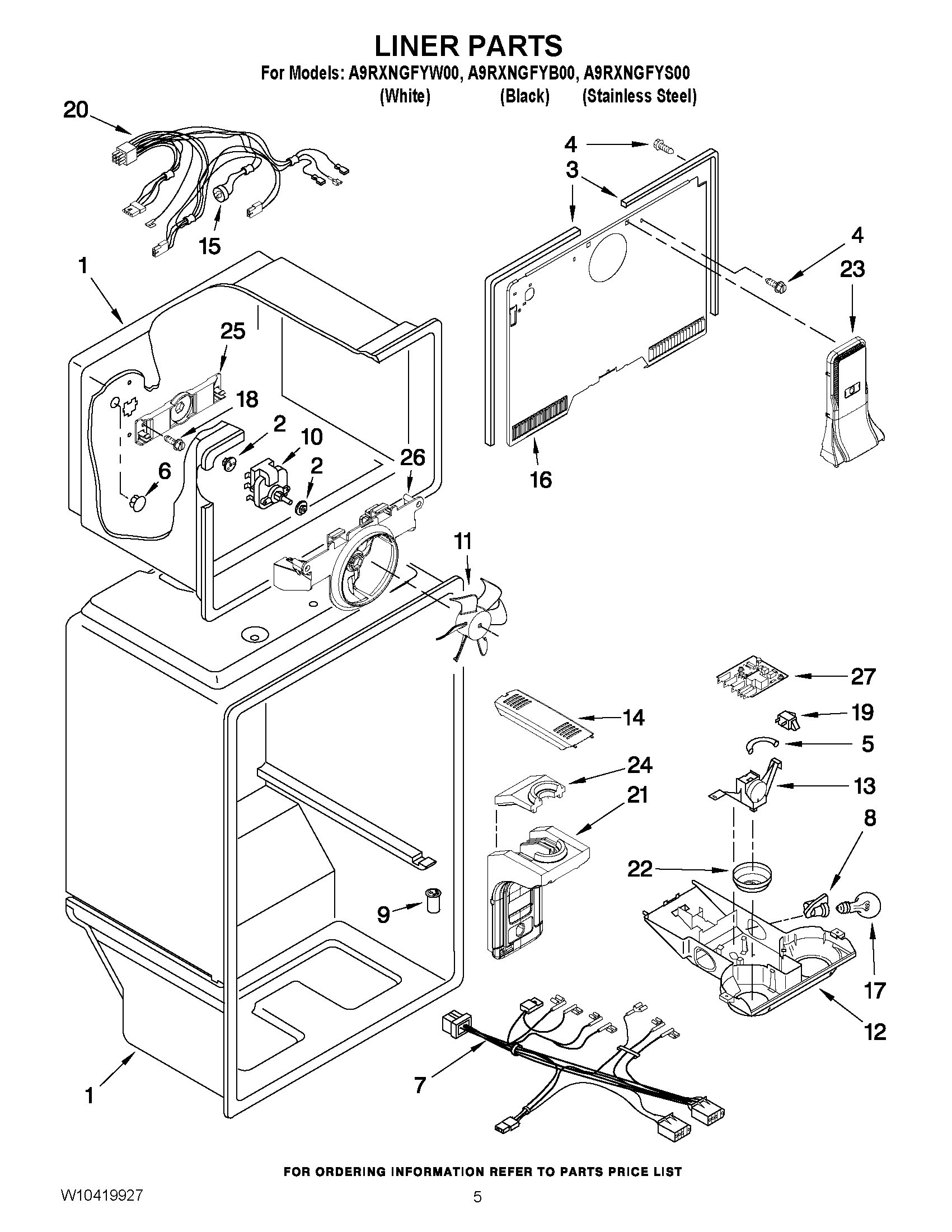

A9RXNGFYS00 03 – LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	MAY 2197380
3	MAY 2254359
4	MAY 489478
5	THERMOSTAT TUBE BARRIER
6	MAY 941839
7	WIRE ASSY. CONTROL BOX
8	Socket, Light
9	MAY 2210509
10	MAY W10208121
11	MAY 2200509
12	MAY W10394915
13	THERMOSTAT
14	LIGHT COVER, RC
15	DEFROST, BI-METAL
16	COVER-EVAPORATOR
17	LIGHT BULB
18	Screw
19	MAY 1118894
20	WIRE ASSEMBLY, FREEZER COMPARTMENT (INCLUDES ITEM 15)
21	AIR DIFFUSER ASSEMBLY
22	KNOB, THERMOSTAT
23	MAY W10394363
24	MAY W10319850
25	Bracket, Fan Back
26	MAY W10321162
27	ELEC. CONTROL, DEFROST
