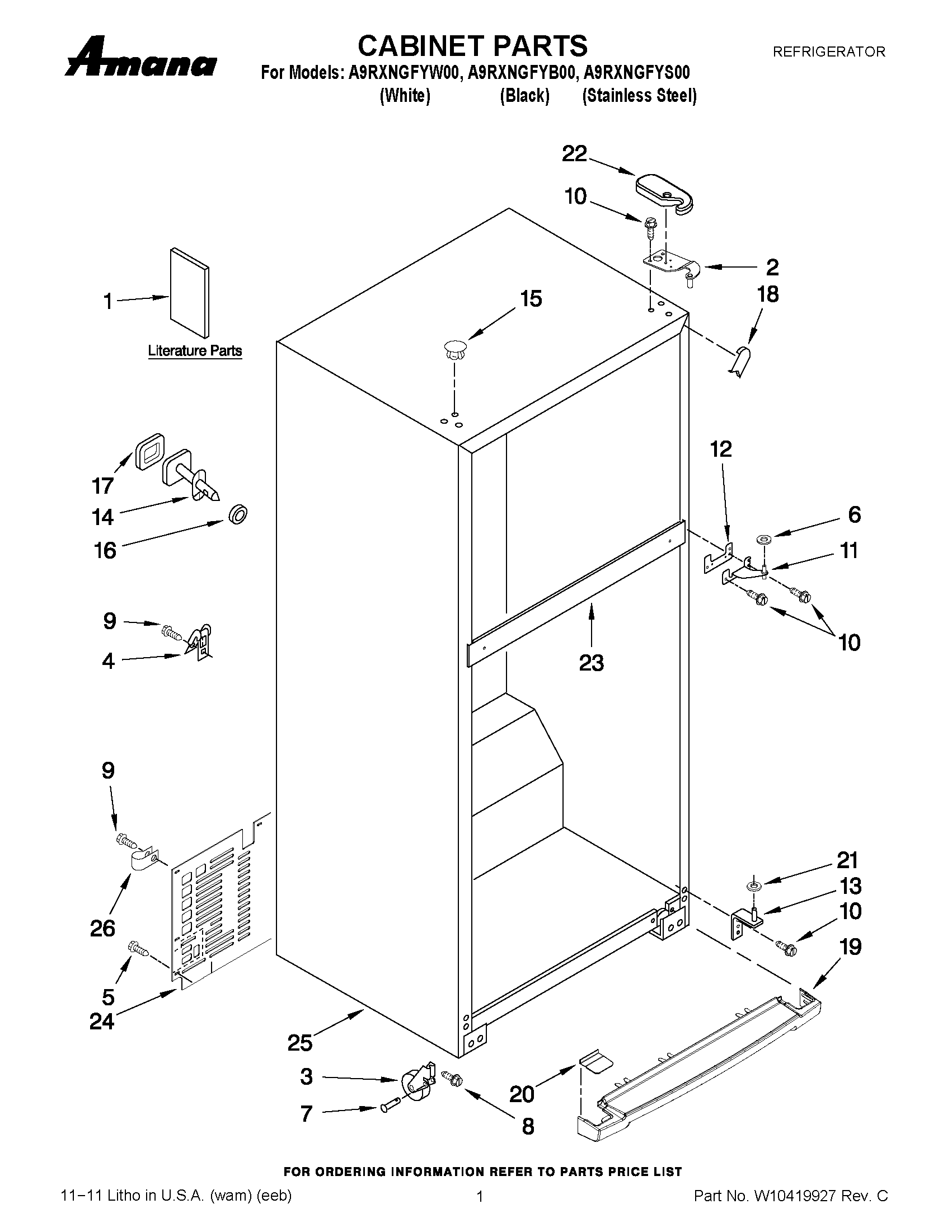

A9RXNGFYW00 01 – CABINET PARTS

A9RXNGFYW00 01 – CABINET PARTS

Written by

in

A9RXNGFYW00 01 – CABINET PARTS

Products

Position	Product
NI	DO-IT-YOURSELF MANUAL REF./ FRZ.
1	SERVICE & WIRING SHEET
1	MAY W10359281
1	MAY W10359280
2	HINGE (TOP)
3	ROLLER, FRONT
4	MAY 549193
5	MAY 489427
6	WASHER, PLASTIC
7	MAY 2179826
8	MAY 3400517
9	MAY 8281265
10	MAY 489497
11	MAY 2254618
12	MAY 2183852
13	MAY 2254473
15	MAY 2183998
15	HOLE PLUG
18	CORNER FILLER (WHITE)
18	CORNER FILLER (BLACK)
19	GRILLE (INCLUDES ILLUS. 20) (WHITE)
19	GRILLE (INCLUDES ILLUS. 20) (BLACK)
20	ENDCAP, GRILLE (WHITE)
20	ENDCAP, GRILLE (BLACK)
21	Washer (1/16)
22	COVER, HINGE (WHITE, RS)
22	COVER, HINGE (WHITE, LS)
22	COVER, HINGE (BLACK, RS)
22	COVER, HINGE (BLACK, LS)
24	MAY W10384413
25	LINER (NOT A SERVICEABLE PART)
26	CLAMP, TUBE
