A9RXNMFWB02 01 – CABINET PARTS – Aparts

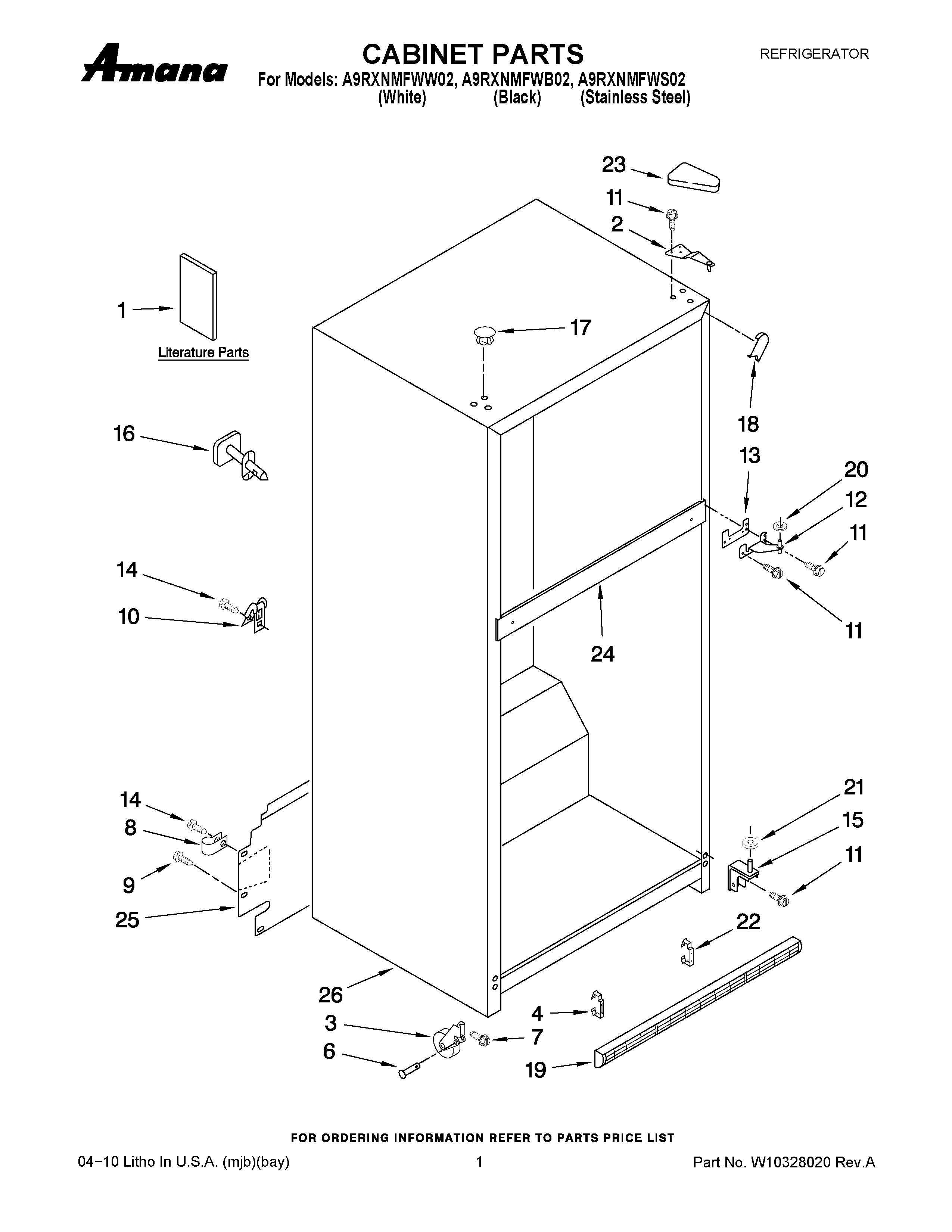

A9RXNMFWB02 01 – CABINET PARTS

Products

Position	Product
1	MAY W10251538
1	MAY W10312255
1	MAY W10249208
1	MAY W10249209
1	DO-IT-YOURSELF MANUAL REF./ FRZ.
2	MAY 2261963
3	MAY 2166108
4	MAY 2189356
6	MAY 2221797
7	MAY 3400504
8	CLAMP, TUBE
9	MAY 489427
10	MAY 549193
11	MAY 489497
12	MAY 2254618
13	MAY 2183852
14	MAY 8281265
15	MAY 2254473
17	MAY 2183998
17	HOLE PLUG
18	CORNER FILLER (WHITE)
18	CORNER FILLER (BLACK)
19	Grille (Includes Illus. 4 & 22) (White)
19	Grille (Includes Illus. 4 & 22) (Black)
20	WASHER, PLASTIC
21	Washer (1/16)
22	MAY 2254385
23	MAY 2213363
23	Cover, Hinge (White)
25	MAY 2254578
26	LINER (NOT A SERVICEABLE PART)
