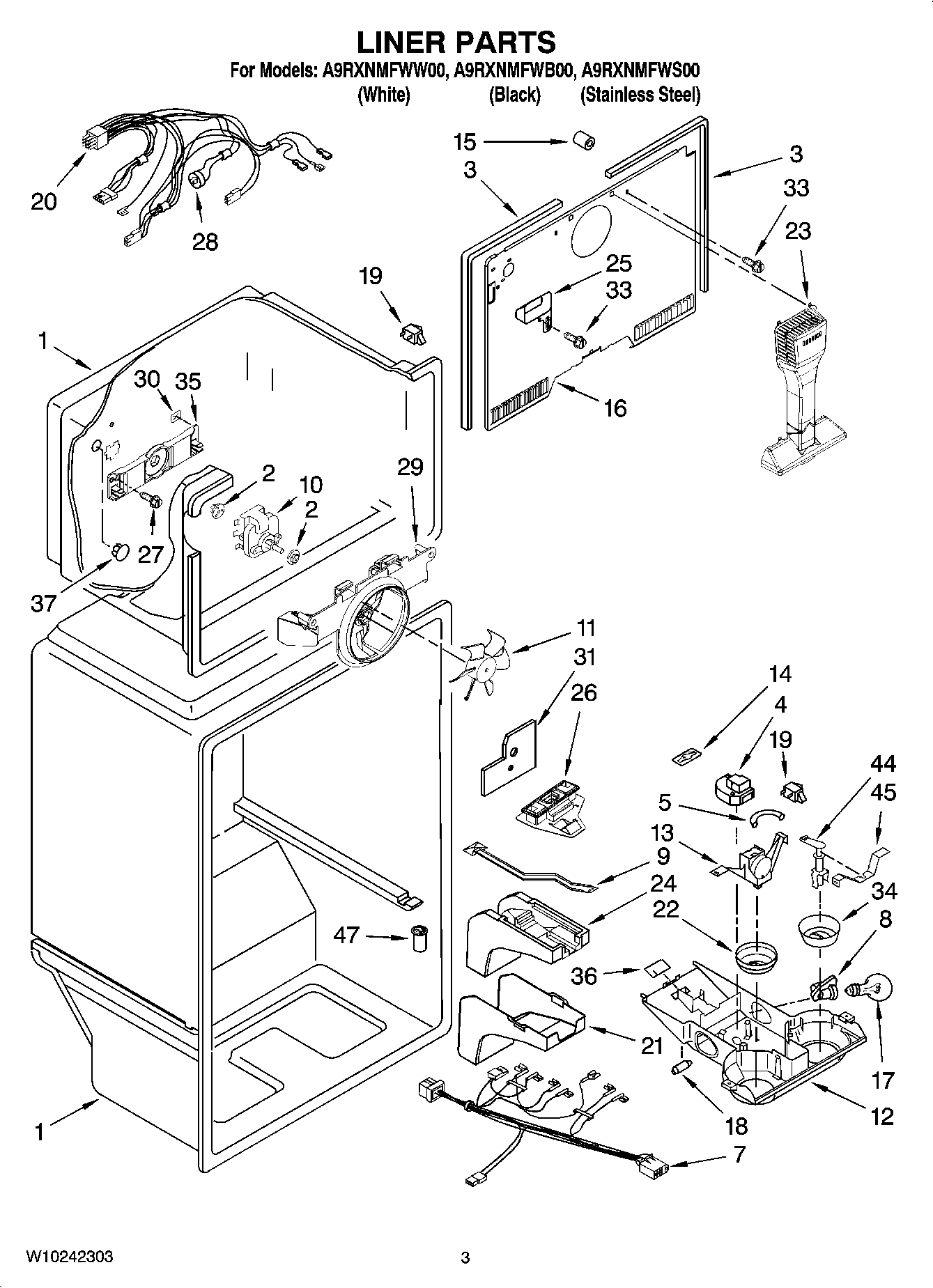

A9RXNMFWS00 02 – LINER PARTS

Products

Position	Product
2	MAY 2197380
3	MAY 2254359
4	MAY 2314156
5	MAY 2212485
7	Wire Assembly, Control Box
8	Socket, Light
9	MAY 2179858
10	MAY W10189703
11	Fan Blade
12	MAY 2200820
13	THERMOSTAT
14	Clip-Defrost Timer
15	CAP BUSHING
16	MAY 2320192
17	MAY 527949
18	MAY 2200831
19	MAY 1118894
20	Wire Assembly, Frzr. Compartment (Includes Illus. 28)
21	MAY 2176281
22	MAY 2200863
23	MAY 2254354
24	MAY 2189452
25	MAY 2205003
26	MAY 2210390
27	Screw
28	MAY 2321800
29	Bracket,
30	Retainer-Screw Fan Motor
31	MAY 2204639
33	MAY 489478
34	MAY 2302536
35	Bracket, Fan Back
36	MAY 2205079
37	MAY 941839
44	MAY 2179859
45	MAY 2163810
47	Valve
