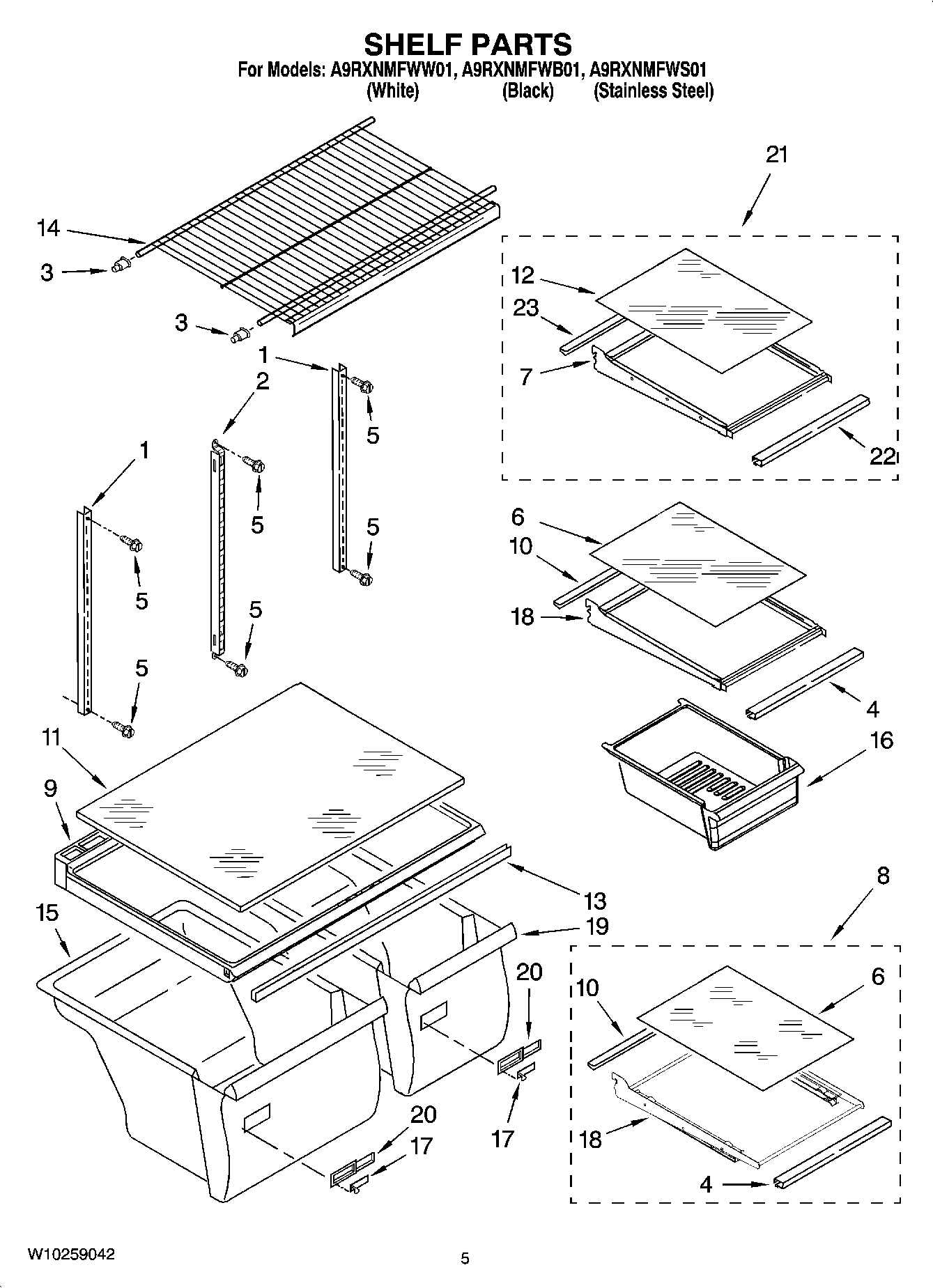

A9RXNMFWS01 03 – SHELF PARTS

Products

Position	Product
1	MAY 2210522
2	MAY 2300520
3	MAY 2163762
4	Trim-Shelf, Front
5	MAY 489478
6	Glass, Shelf
7	Shelf-Cantilever Meat Pan
8	Shelf Assy
9	MAY W10221199
10	Trim-Shelf, Rear
11	MAY 2221693
12	Glass, Half Shelf
13	Support, Crisper
14	MAY 2189453
15	Pan, Crisper (13-Inch) (Includes 17,20)
16	MAY 2218127K
17	Slide, Humidity Control
18	Shelf-Cantilever
19	Pan, Crisper (10-Inch) (Includes 17, 20)
20	MAY 2212446
21	Shelf Assembly
22	TRIM,SHELF FRONT
23	Trim, Shelf Rear
