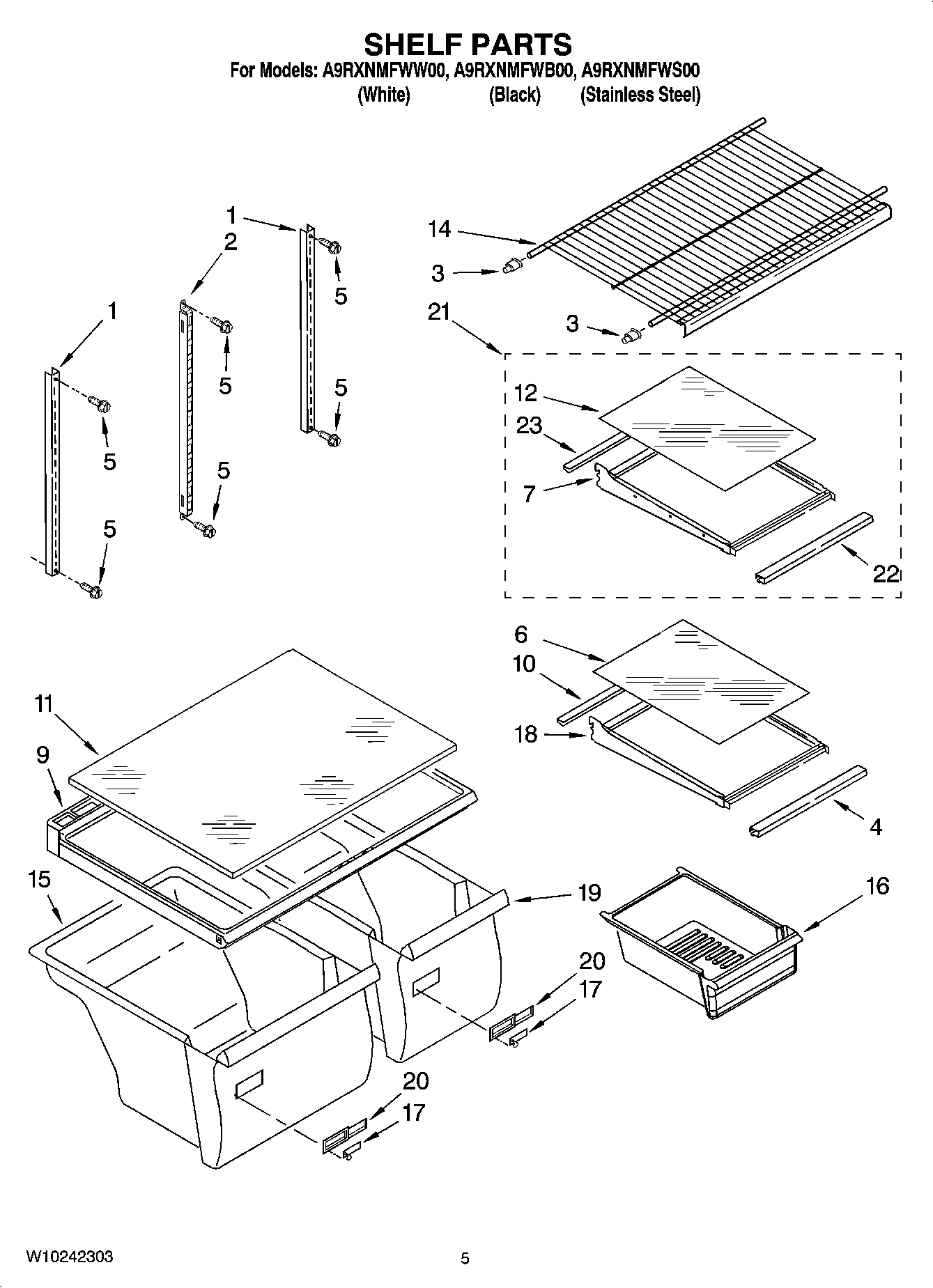

A9RXNMFWW00 03 – SHELF PARTSadmin2025-04-26T08:55:29+00:00A9RXNMFWW00 03 – SHELF PARTS
Products
| Position | Product |
|---|
| 1 | MAY 2210522 |
| 2 | MAY 2300520 |
| 3 | MAY 2163762 |
| 4 | Trim-Shelf, Front |
| 5 | MAY 489478 |
| 6 | Glass, Shelf |
| 7 | Shelf-Cantilever Meat Pan |
| 9 | Crisper Cover |
| 10 | Trim-Shelf, Rear |
| 11 | MAY 2221693 |
| 12 | Glass, Half Shelf |
| 14 | MAY 2189453 |
| 15 | Pan, Crisper (13-Inch) (Includes 17,20) |
| 16 | MAY 2218127K |
| 17 | Slide, Humidity Control |
| 18 | Shelf-Cantilever |
| 19 | Pan, Crisper (10-Inch) (Includes 17, 20) |
| 20 | MAY 2212446 |
| 21 | Shelf Assembly |
| 22 | Trim, Shelf Front |
| 23 | Trim, Shelf Rear |
