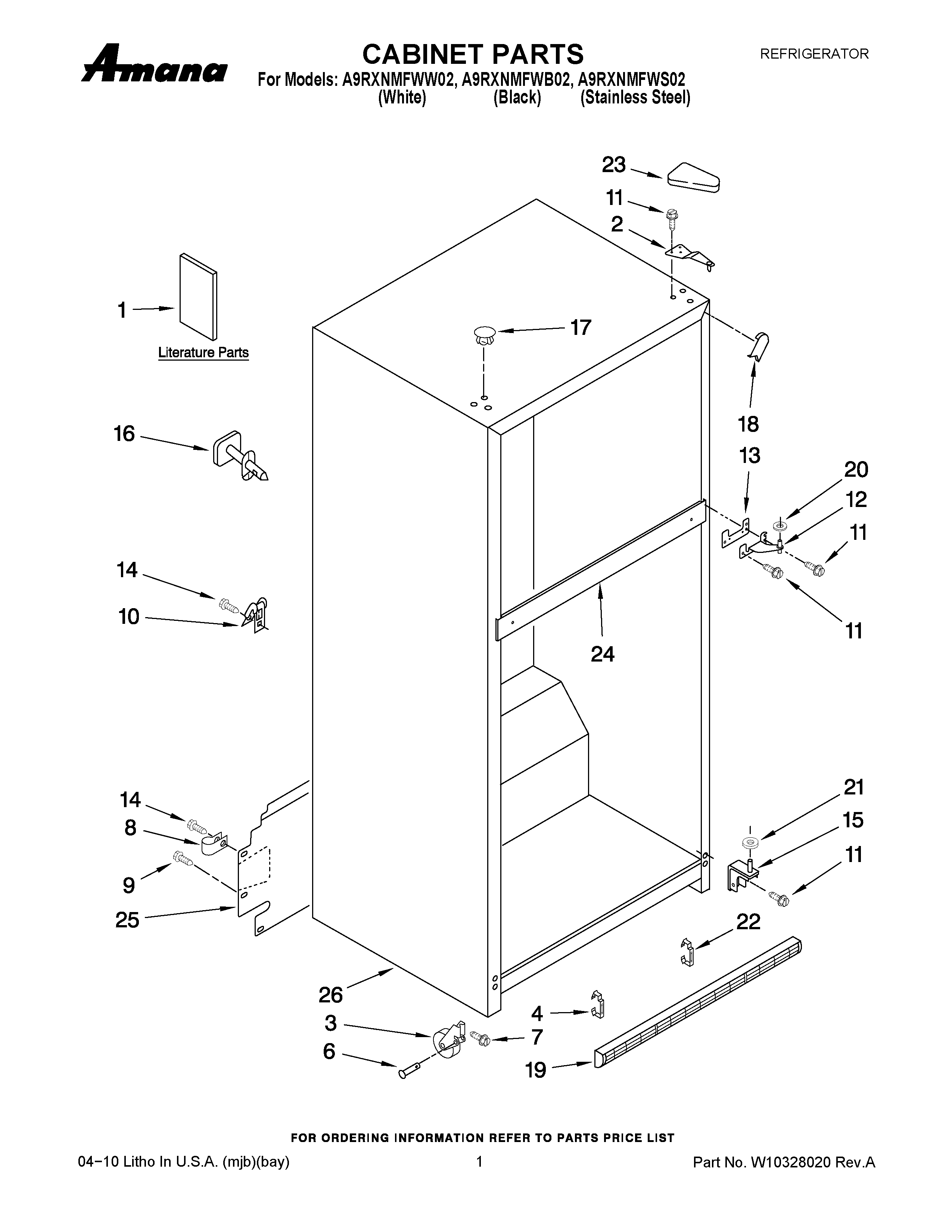

A9RXNMFWW02 01 – CABINET PARTS

A9RXNMFWW02 01 – CABINET PARTS

Written by

in

A9RXNMFWW02 01 – CABINET PARTS

Products

PositionProduct
1MAY W10251538
1MAY W10312255
1MAY W10249208
1MAY W10249209
1DO-IT-YOURSELF MANUAL REF./ FRZ.
2MAY 2261963
3MAY 2166108
4MAY 2189356
6MAY 2221797
7MAY 3400504
8CLAMP, TUBE
9MAY 489427
10MAY 549193
11MAY 489497
12MAY 2254618
13MAY 2183852
14MAY 8281265
15MAY 2254473
17MAY 2183998
17HOLE PLUG
18CORNER FILLER (WHITE)
18CORNER FILLER (BLACK)
19Grille (Includes Illus. 4 & 22) (White)
19Grille (Includes Illus. 4 & 22) (Black)
20WASHER, PLASTIC
21Washer (1/16)
22MAY 2254385
23MAY 2213363
23Cover, Hinge (White)
25MAY 2254578
26LINER (NOT A SERVICEABLE PART)
