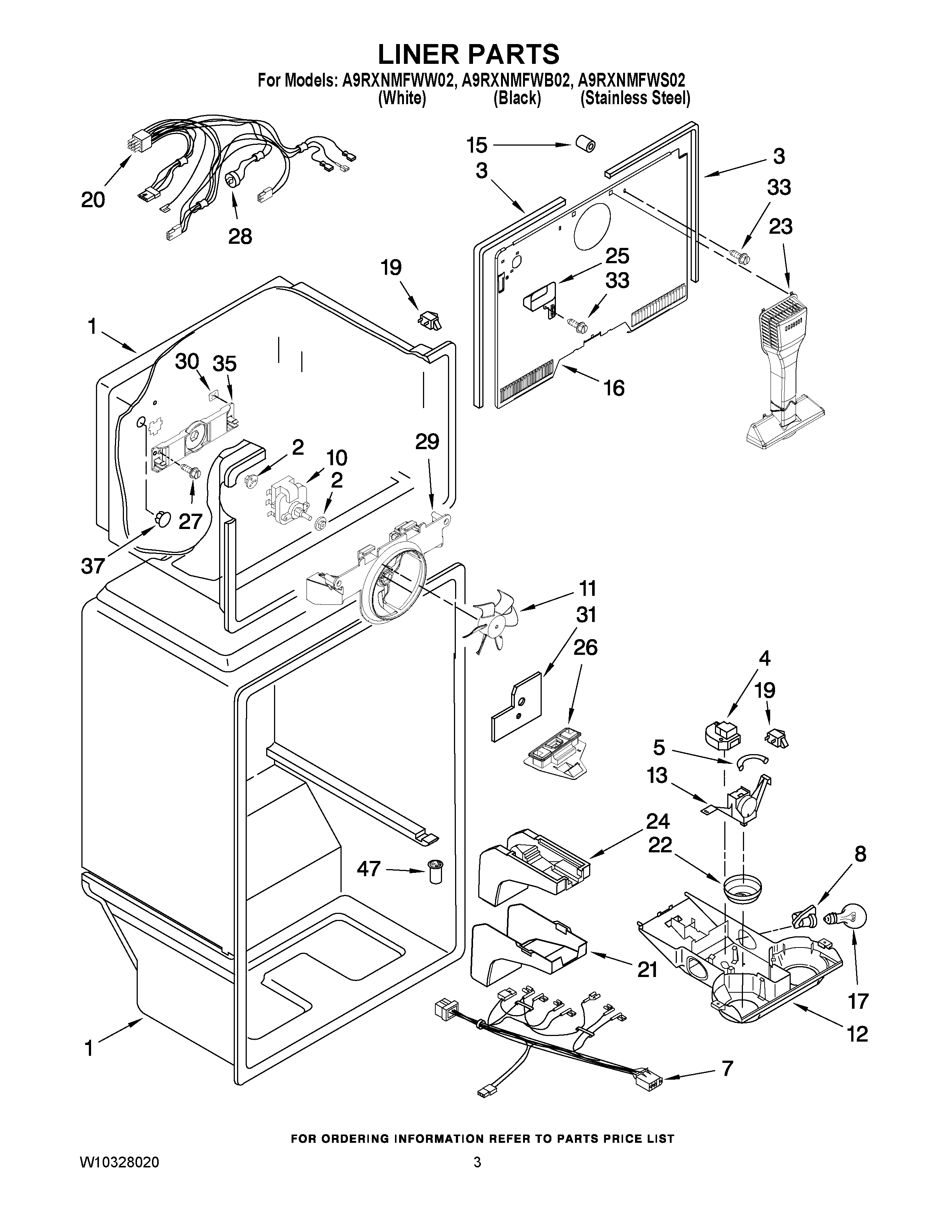

A9RXNMFWW02 02 – LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	MAY 2197380
3	MAY 2254359
4	MAY 2314156
5	Thermostat Tube Barrier
7	Wire Assembly, Control Box
8	Socket, Light
10	MAY W10189703
11	Fan Blade
12	MAY 2218381
13	THERMOSTAT
15	CAP BUSHING
16	MAY 2320192
17	Light Bulb (2)
19	MAY 1118894
20	Wire Assembly, Frzr. Compartment (Includes Illus. 28)
21	MAY 2176281
22	MAY 2202885
23	MAY 2254354
24	MAY 2189452
25	MAY 2205003
26	MAY 2210390
27	Screw
28	MAY 2321800
29	Bracket,
30	MAY 8533961
31	MAY 2204639
33	MAY 489478
35	Bracket, Fan Back
37	MAY 941839
47	MAY 2210509
