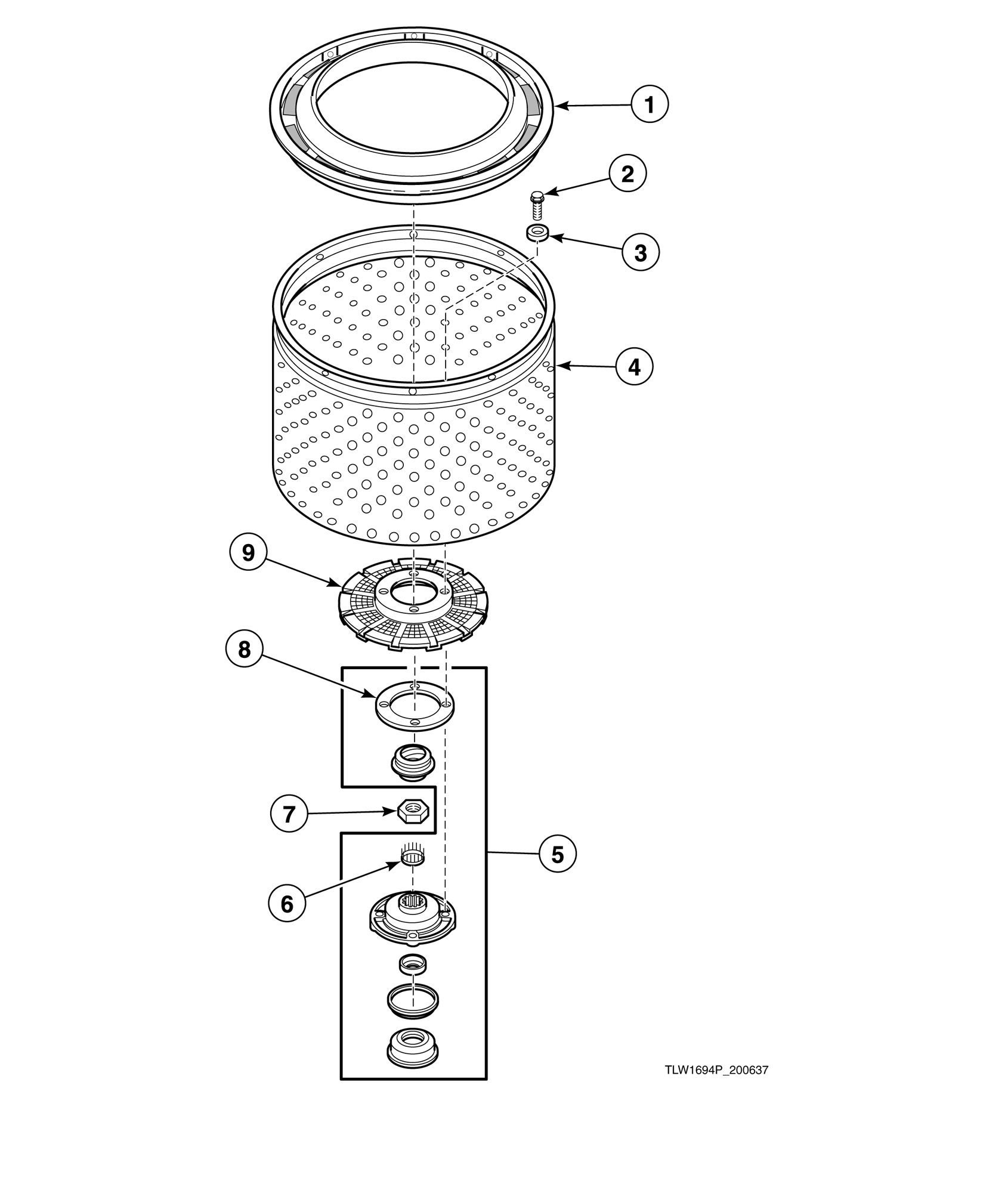

AA3111 Lint Filter, Washtub and Hub

AA3111 Lint Filter, Washtub and Hub

Written by

in

AA3111 Lint Filter, Washtub and Hub

Products

PositionProduct
1Lint Filter
2Screw
3Washer
4Tub Assembly (Comment: Porcelain)
4Tub Assembly (Comment: Stainless steel)
5Hub and Seal Kit (Comment: Replaces 441P3, Includes 27184 Cover Gasket and 442P3 Drive Bell Seal Kit)
6Spline Insert
7Nut
8Washtub Gasket (Comment: through Serial No. R1438801XN)
9Lint Filter (Comment: starting Serial No. R1438802XN)
