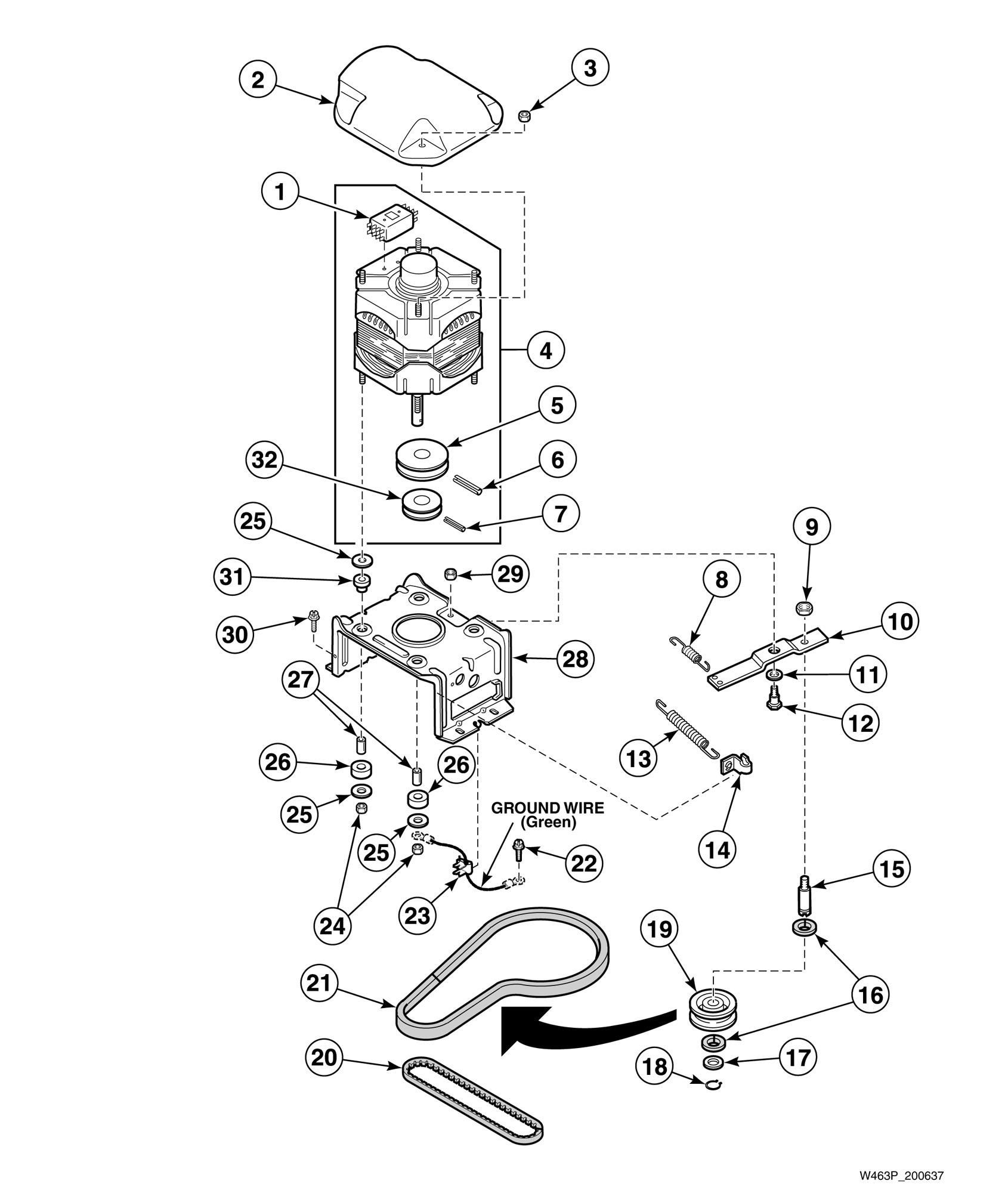

AA3210 Motor, Mounting Bracket, Belts and Idler Assembly

Products

PositionProduct
NAGEN 258P3
1Motor Switch (Comment: Used with 30895 Emerson motor)
1Motor Switch (Comment: Used with 30895 General Electric motor)
1Motor Switch (Comment: Used with 30897 General Electric motor)
1Motor Switch (Comment: Used with 30897 Emerson motor)
2Motor Shield
3Nut
4Motor and Pulley Assembly (Comment: 2 speed, 230 Volt/50 Hertz)
4Motor Kit (Comment: 1 speed, 120 Volt/50 Hertz)
4Motor Kit (Comment: 1 speed, 120 Volt/60 Hertz/1 Phase)
4Motor Kit (Comment: 1 speed, 230 Volt/50 Hertz)
4Motor Kit (Comment: 2 speed, 120 Volt/60 Hertz/1 Phase)
4Motor Kit (Comment: 2 speed, 230 Volt/50 Hertz, Australia)
4Motor Assembly (Comment: 1 speed, 230 Volt/60 Hertz)
4Motor and Pulley Assembly (Comment: 2 speed, 230 Volt/60 Hertz)
5Motor Pulley
6Roll Pin
7Roll Pin
8Idler Lever Helper Spring
9Nut
10Idler Lever
11Washer
12Screw
13Idler Lever Spring
14Spring Clip
15Idler Shaft
16Washer
17Washer
18Retaining Ring
19Idler Pulley
20Pump Belt (Comment: Pump)
21Belt (Comment: Agitate and spin)
22Screw (Comment: Green)
23Grounding Clip
24Nut
25Washer
26Rubber Motor Mount (Comment: Lower)
27Motor S
28GEN 28791
29Nut
30Screw
31GEN 01952A
32GEN 27104
