AA4110 Loading Door Switch and Bracket Assembly (All Models Except NA2110 Starting Serial No. R1624440YK)

AA4110 Loading Door Switch and Bracket Assembly (All Models Except NA2110 Starting Serial No. R1624440YK)

Written by

in

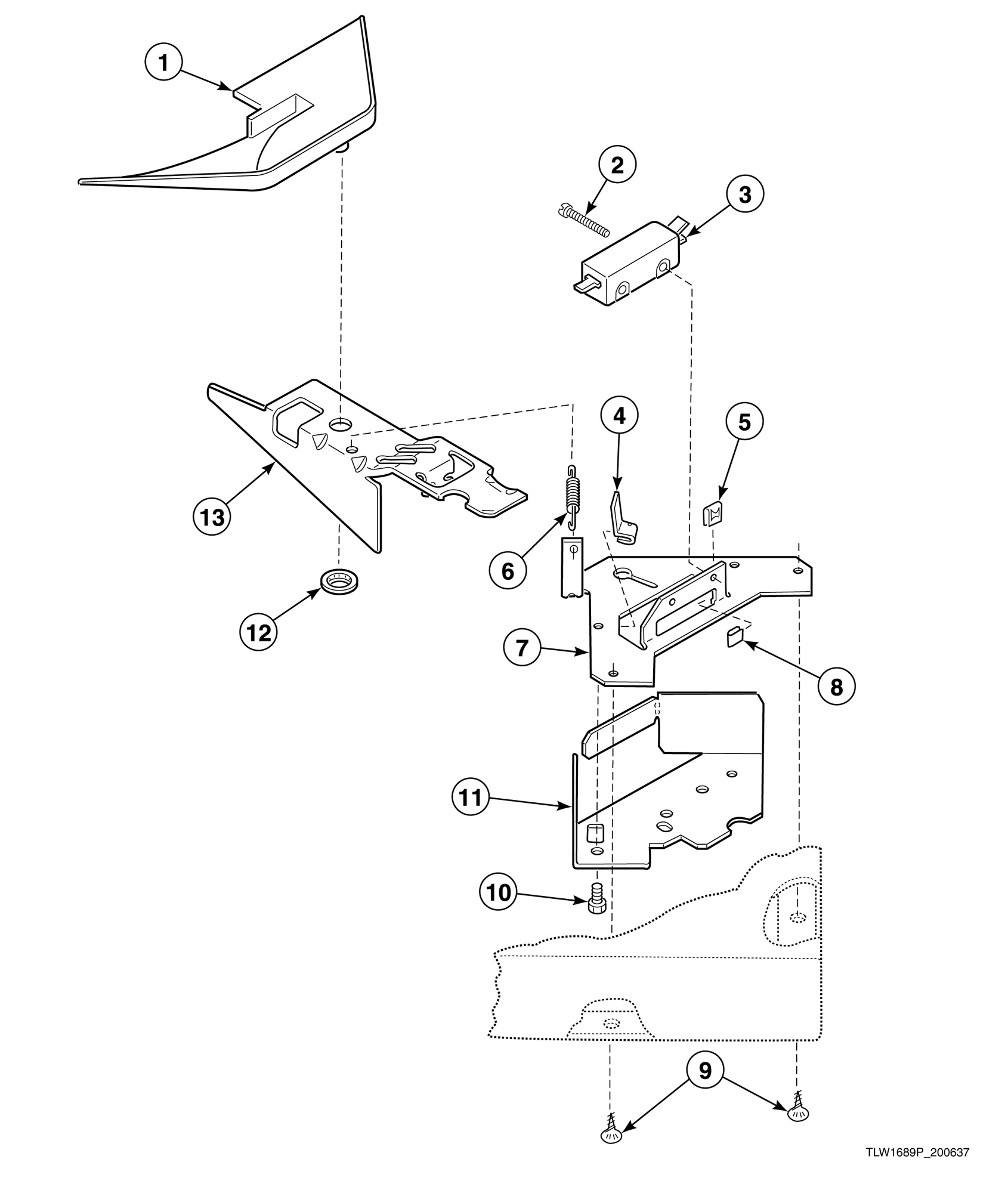

AA4110 Loading Door Switch and Bracket Assembly (All Models Except NA2110 Starting Serial No. R1624440YK)

Products

PositionProduct
1Lid Switch Shield
2Screw
3Switch
4U-Clip (Comment: Models through Serial No. R1339649XG)
5Nut
6Switch Lever Spring
7Out-of-Balance Switch Bracket
8U-Clip
9Screw
10Screw
11Lid Switch Guard (Comment: Models starting Serial No. R1339650XG and continuing through R1566483YG)
12Nut
13Out-of-Balance Switch Lever
