AA4110 Outer Tub, Cover and Pressure Hose

AA4110 Outer Tub, Cover and Pressure Hose

Written by

in

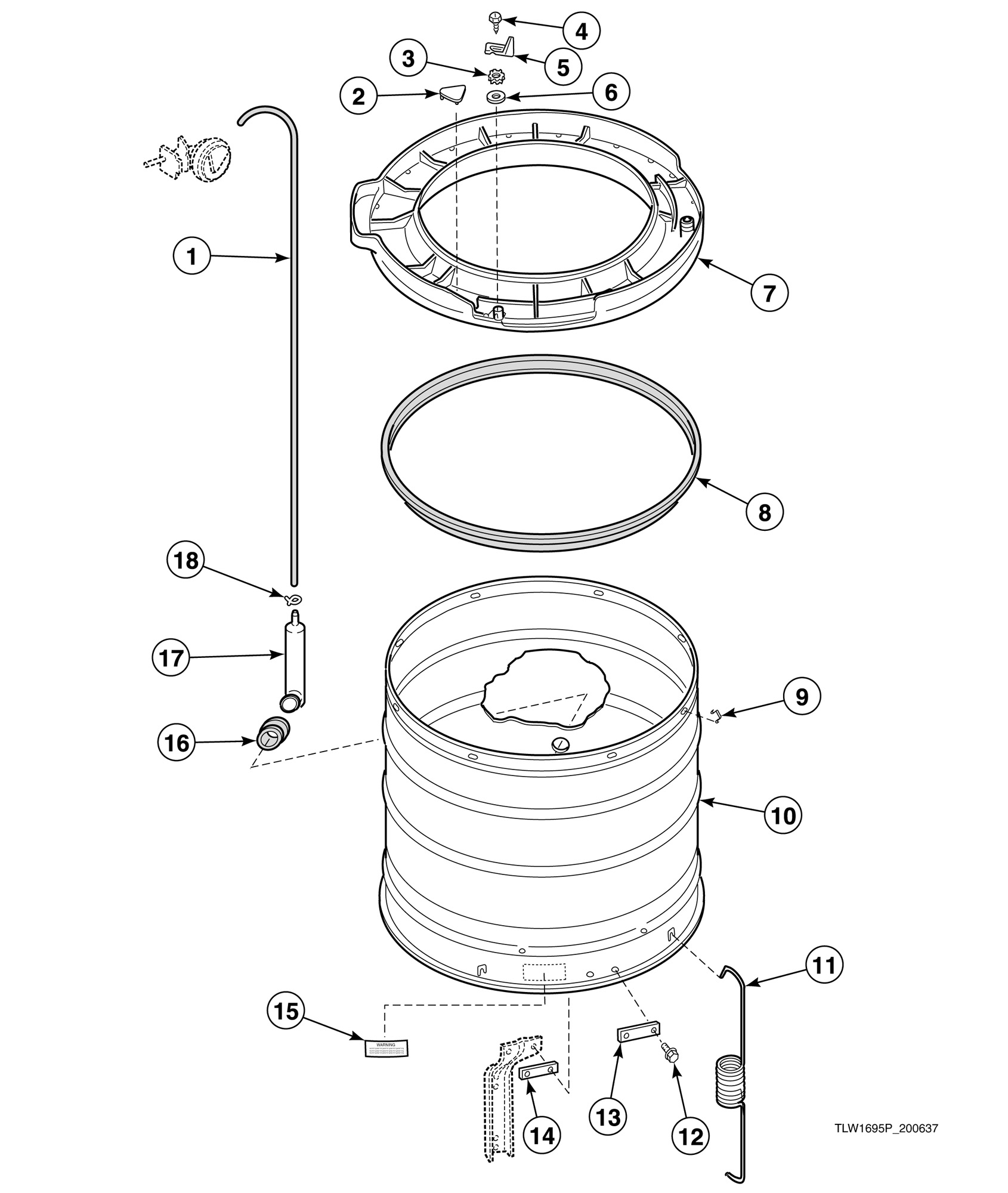

AA4110 Outer Tub, Cover and Pressure Hose

Products

PositionProduct
1Tubing
2Plug
3Washer
4Screw
5Out-of-Balance Switch Trigger
6Washer
7Outer Tub Cover (Comment: Includes item 2)
8Tub Cover Gasket (Comment: Includes 495P3 Hub and Seal Kit)
9Spring Clip
10Outer Tub (Comment: Models through Serial No. R1438801XN)
10Outer Tub Kit (Comment: starting Serial No. R1438802XN)
11Leg Spring
12Screw
13Leg Plate (Comment: .063 inches thick)
14Leg Plate (Comment: .032 inches thick)
15Warning Sticker
16Grommet
17Pressure Bulb
18Hose Clamp
