AA4110 Transmission Assembly and Balance Ring
Written by
in

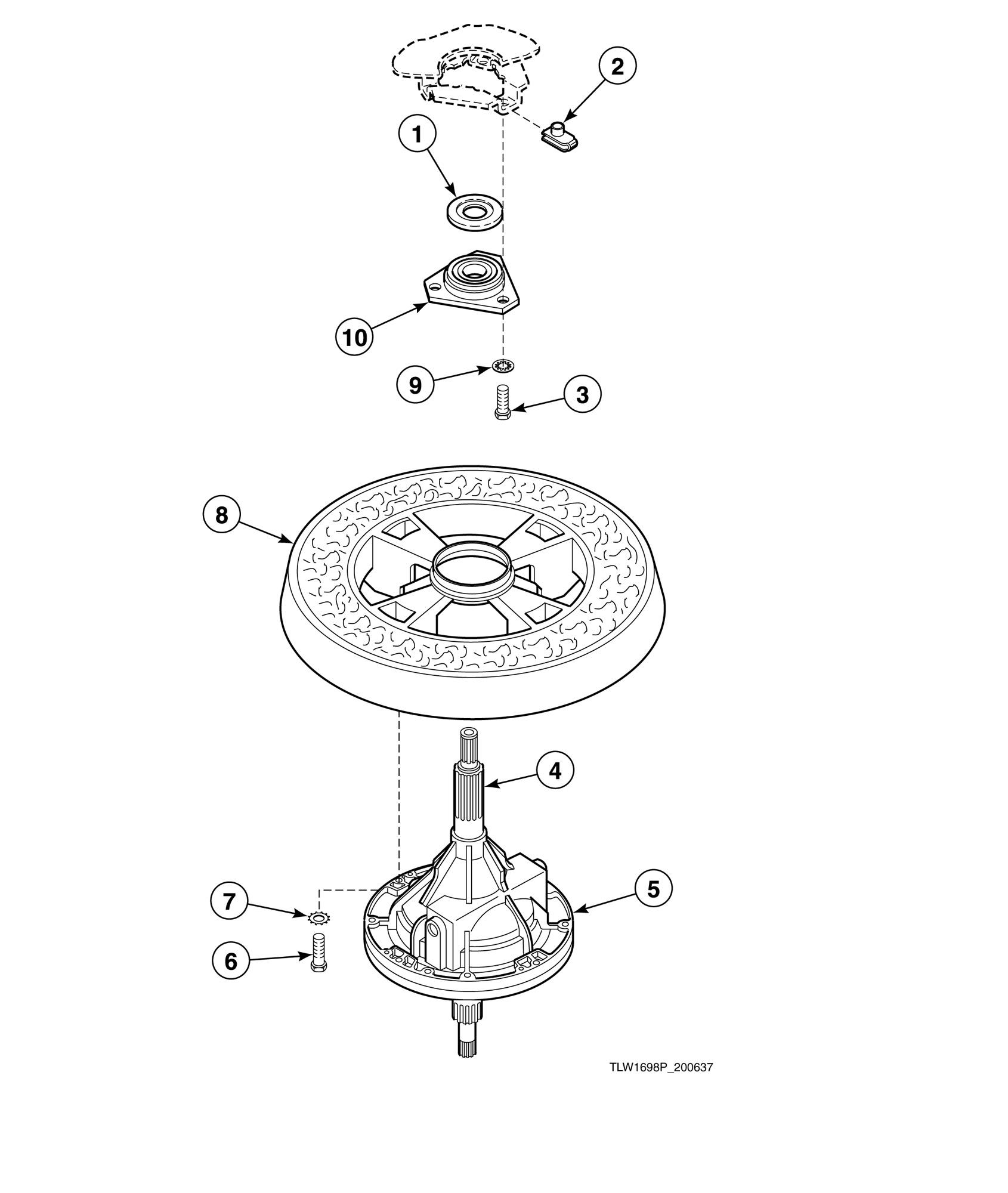

AA4110 Transmission Assembly and Balance Ring
Products
Position
Product
1
Flinger
2
Nut (Comment: Included with outer tub)
3
Screw
4
Anti-Seize Compound (Comment: Apply to motor shaft before installing blower fan assembly)
5
Transmission Assembly (Comment: Replaces 30978 Transmission Assembly)
6
Screw
7
Washer
8
Balance Ring Assembly
9
Washer
10
Bearing Housing Assembly (Comment: Upper)
←
MER6872BCS 06 – TOP ASSEMBLY
31FA-8W-02 02 – CONTROL PANEL
→
