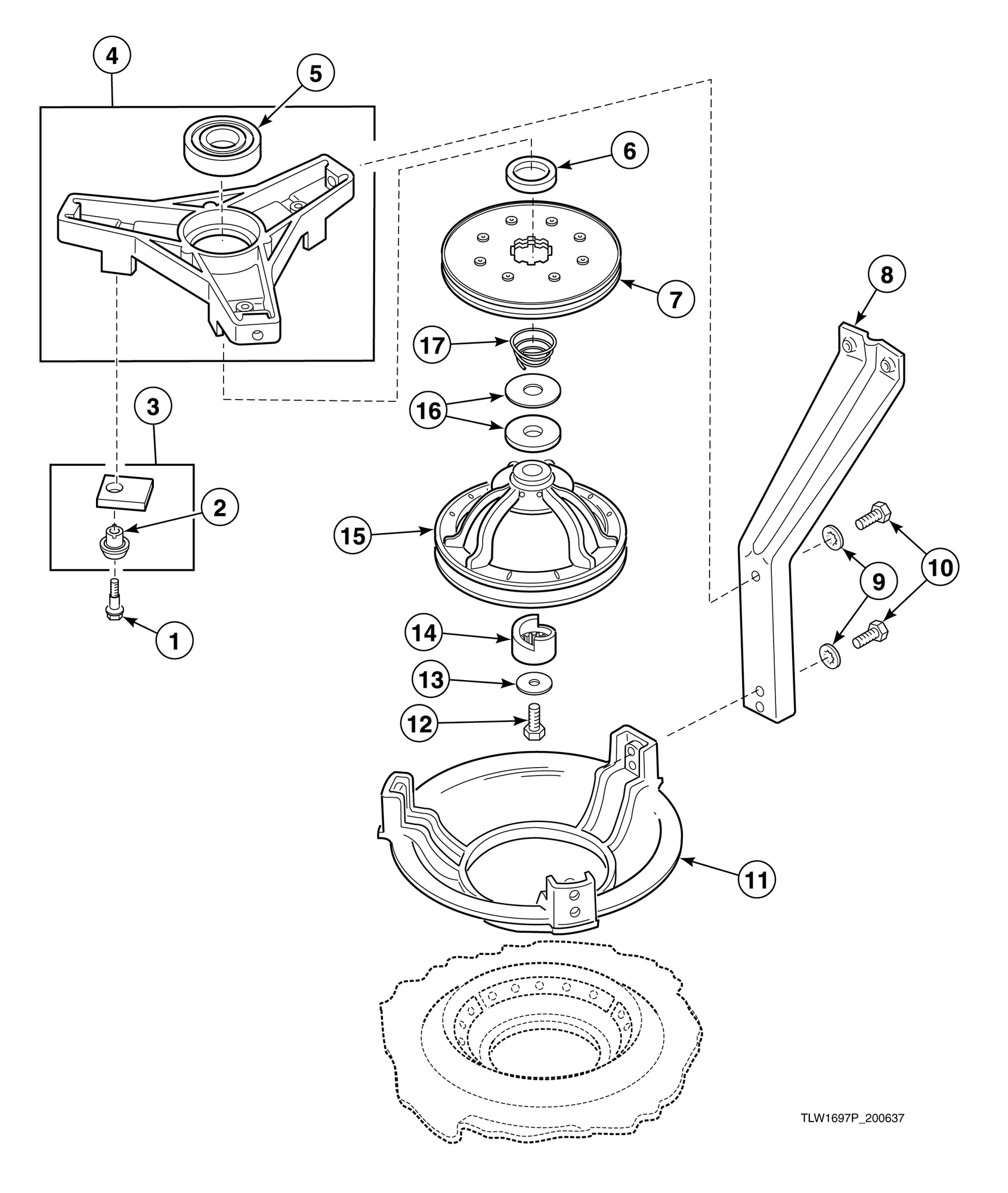

AA4211 Bearing Housing, Brake, Pulley and Pivot Dome

Products

PositionProduct
1Screw
2Anti-Rotation Sleeve
3Brake Pad Kit (Comment: Includes 3 pads and sleeves)
4Bearing Housing Assembly
5Lower Bearing
6Spacer (Comment: Use with item 7)
7Brake Kit
8Support Leg
9Washer
10Screw
11Pivot Dome
12Screw
13Washer
14Helix
15Pulley and Washers Kit
16Washer (Comment: Replaced 27015 Washer)
17Spring
