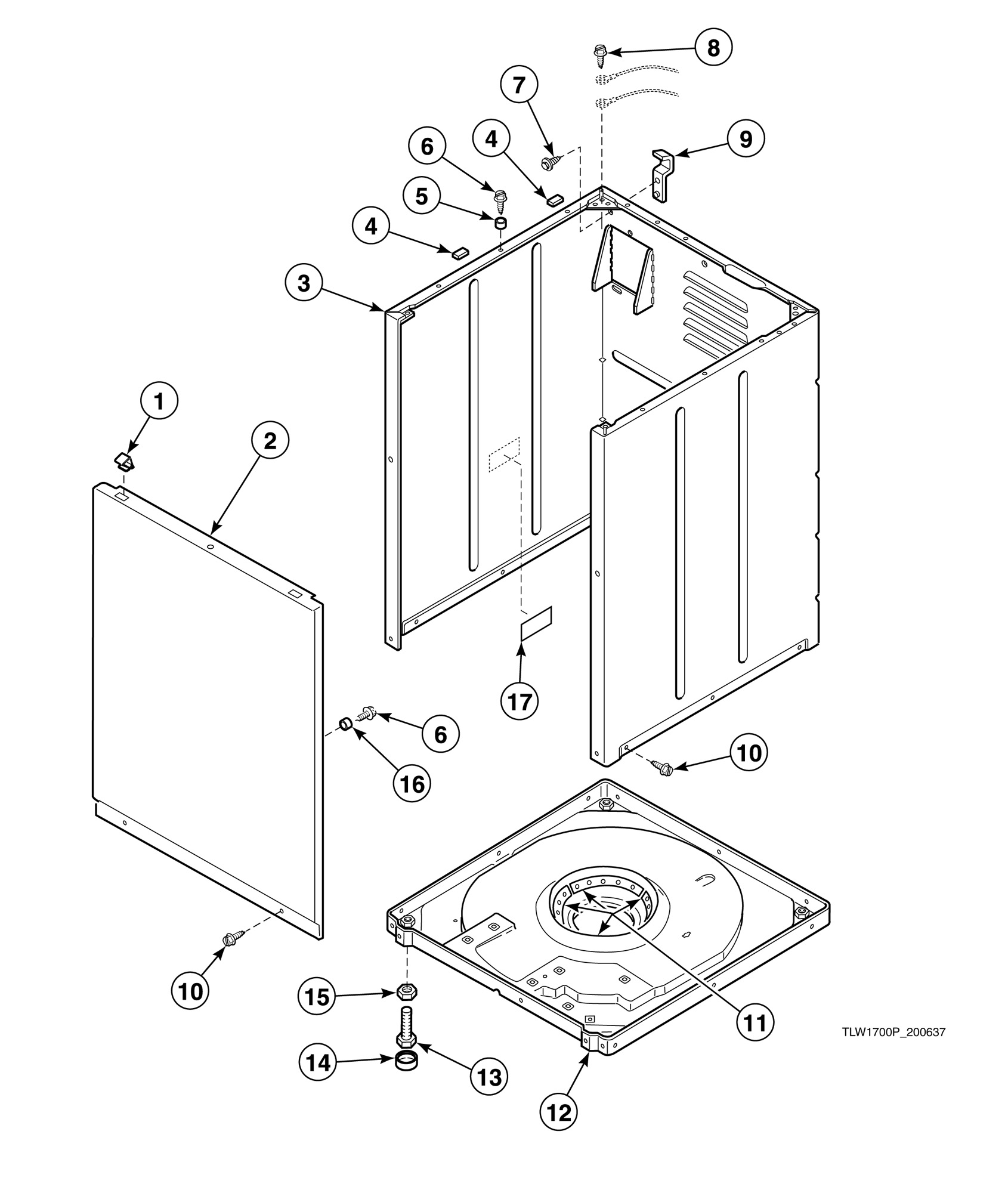

AA4211 Front Panel, Cabinet and Base

Products

PositionProduct
1Speed Clip
2Front Panel (Comment: Almond)
2Front Panel (Comment: White)
10Screw
11Snubber Pad Kit (Comment: Includes 4 pads)
12Base Assembly (Comment: Includes snubber pads and leveling legs)
13Leveling Leg
14Rubber Foot
15Nut
16Panel Locator
17Double-Sided Tape
