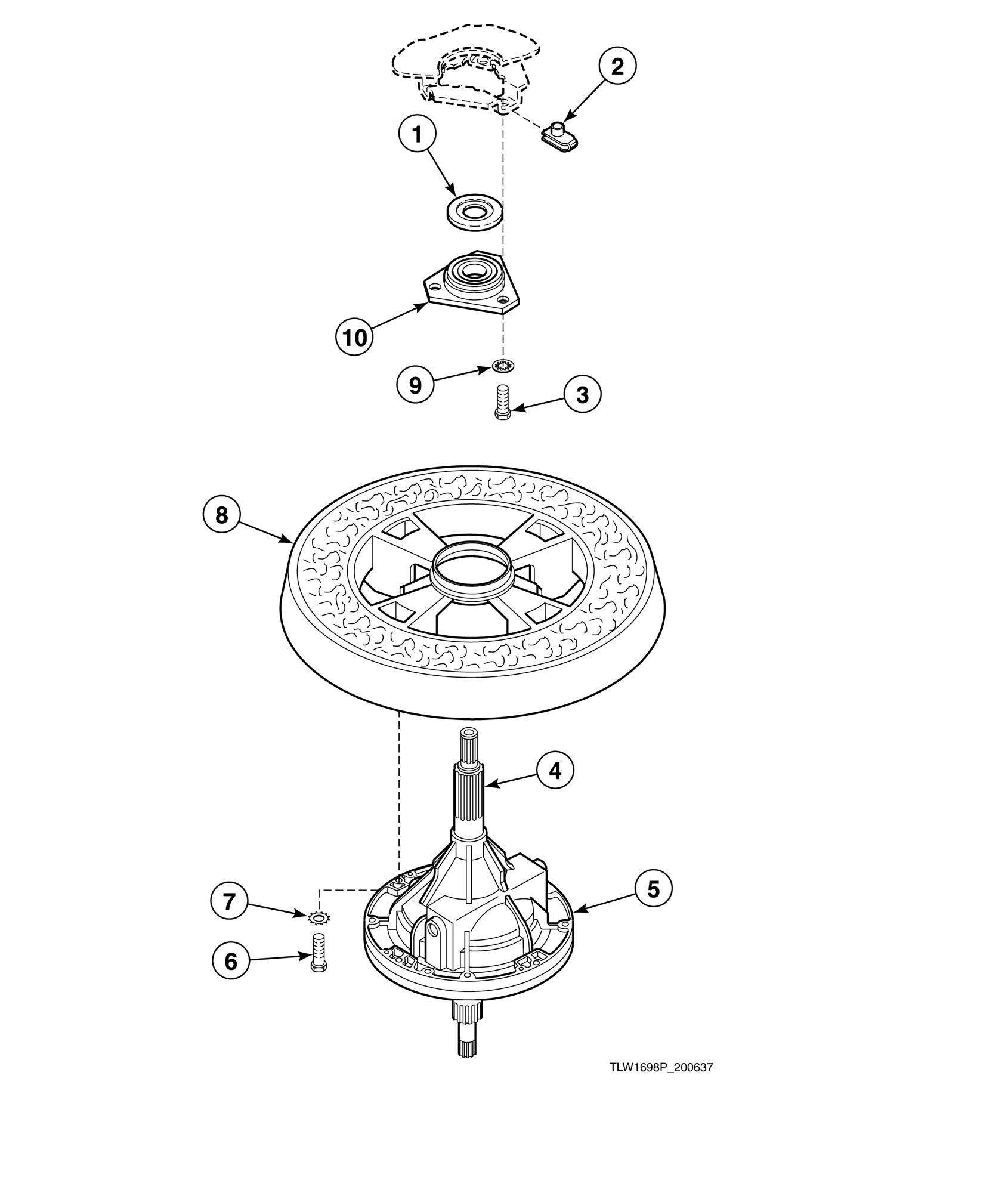

AA4211 Transmission Assembly and Balance Ring

Written by

Products

Position	Product
1	Flinger
2	Nut (Comment: Included with outer tub)
3	Screw
4	Anti-Seize Compound (Comment: Apply to motor shaft before installing blower fan assembly)
5	Transmission Assembly (Comment: Replaces 30978 Transmission Assembly)
6	Screw
7	Washer
8	Balance Ring Assembly
9	Washer
10	Bearing Housing Assembly (Comment: Upper)
