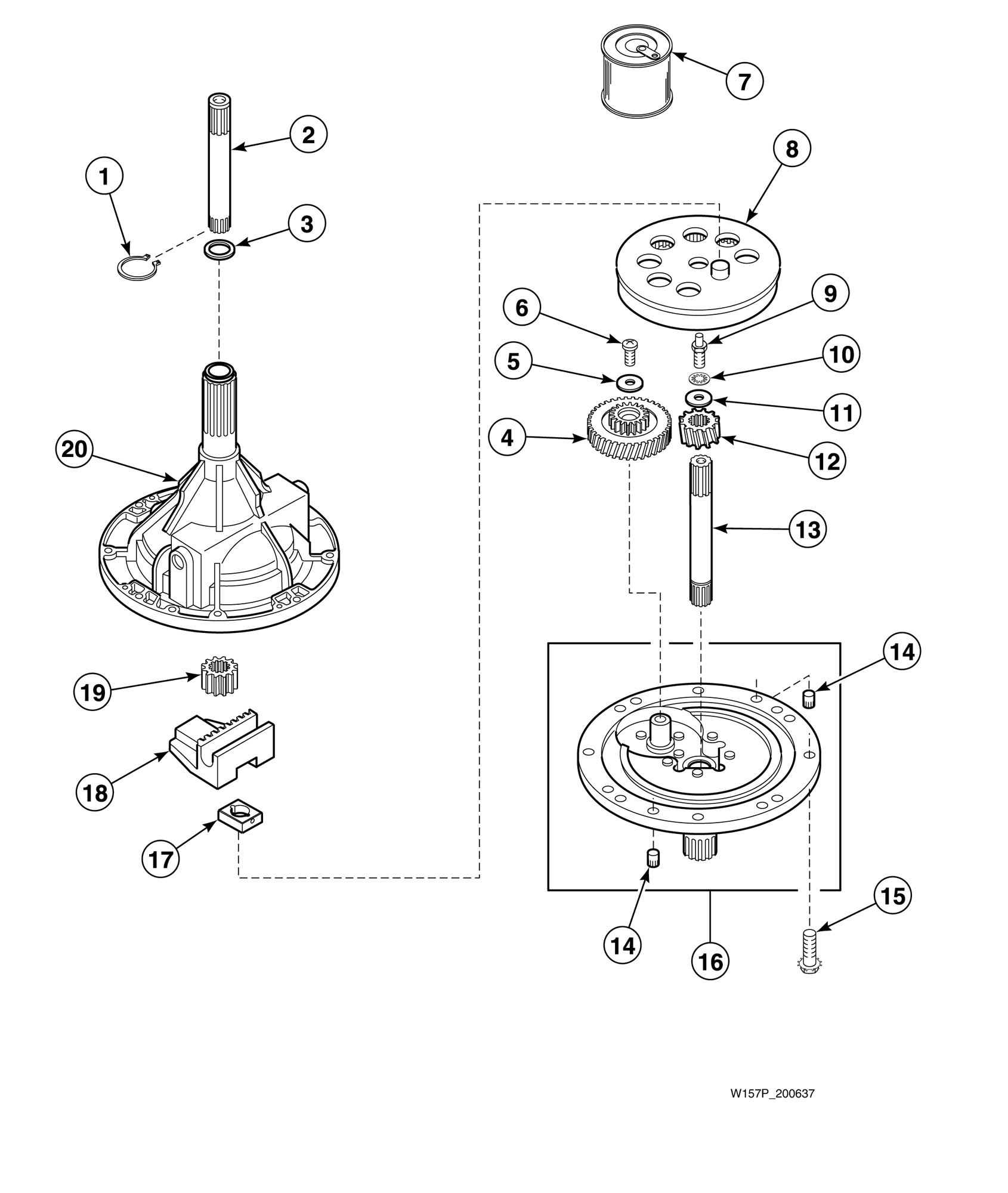

AA5121 Components for 33227P Transmission Assembly

Products

PositionProduct
NATransmission Sealant (Comment: Use as a sealant between transmission case and cover)
1Retaining Ring
2Output Shaft
3Washer
4Reduction Gear
5Washer
6Screw
7Transmission Oil (Comment: 1 fill)
8Gear and Stud Assembly
9Screw
10Washer
11Washer
12Drive Pinion
13Input Shaft
14Dowel Pin
15Screw
16Transmission Cover Assembly
17Slide
18Rack
19Agitator Pinion
20Transmission Case Assembly
