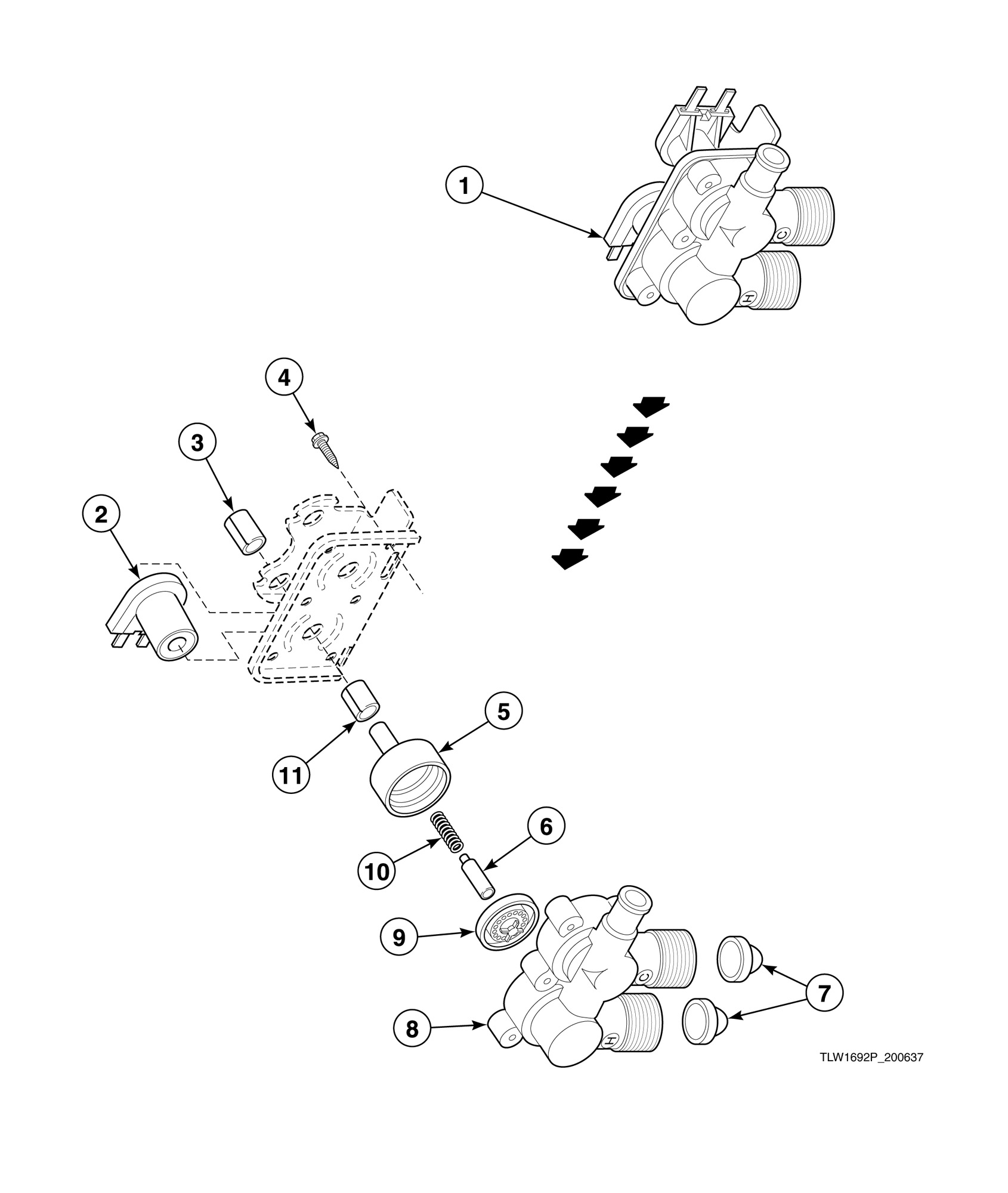

AA5221 Mixing Valve Assembly (Drawing 2 of 2) (Dole or Eaton Company)
Written by
in
AA5221 Mixing Valve Assembly (Drawing 2 of 2) (Dole or Eaton Company)
Products
| Position | Product |
|---|---|
| 2 | Mixing Valve |
| 3 | Sleeve (Comment: Long) |
| 4 | Screw |
| 5 | Armature Guide |
| 6 | Armature |
| 7 | Strainer |
| 8 | Valve Body (Comment: Yellow) |
| 9 | Diaphragm |
| 10 | Spring |
| 11 | Sleeve (Comment: Short) |
