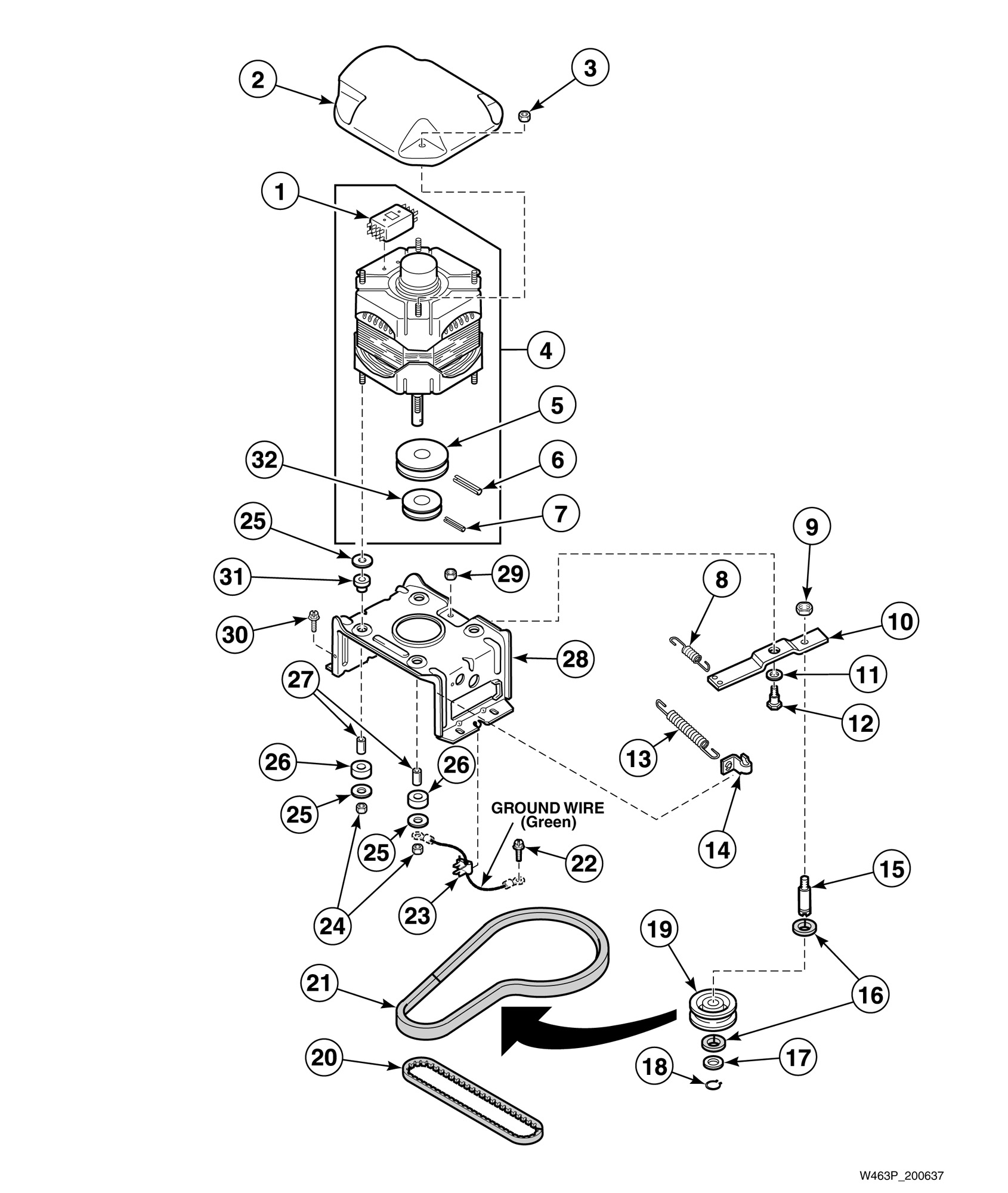

AA5221 Motor, Mounting Bracket, Belts and Idler Assembly

Products

Position	Product
NA	GEN 258P3
1	Motor Switch (Comment: Used with 30895 Emerson motor)
1	Motor Switch (Comment: Used with 30895 General Electric motor)
1	Motor Switch (Comment: Used with 30897 General Electric motor)
1	Motor Switch (Comment: Used with 30897 Emerson motor)
2	Motor Shield
3	Nut
4	Motor and Pulley Assembly (Comment: 2 speed, 230 Volt/50 Hertz)
4	Motor Kit (Comment: 1 speed, 120 Volt/50 Hertz)
4	Motor Kit (Comment: 1 speed, 120 Volt/60 Hertz/1 Phase)
4	Motor Kit (Comment: 1 speed, 230 Volt/50 Hertz)
4	Motor Kit (Comment: 2 speed, 120 Volt/60 Hertz/1 Phase)
4	Motor Kit (Comment: 2 speed, 230 Volt/50 Hertz, Australia)
4	Motor Assembly (Comment: 1 speed, 230 Volt/60 Hertz)
4	Motor and Pulley Assembly (Comment: 2 speed, 230 Volt/60 Hertz)
5	Motor Pulley
6	Roll Pin
7	Roll Pin
8	Idler Lever Helper Spring
9	Nut
10	Idler Lever
11	Washer
12	Screw
13	Idler Lever Spring
14	Spring Clip
15	Idler Shaft
16	Washer
17	Washer
18	Retaining Ring
19	Idler Pulley
20	Pump Belt (Comment: Pump)
21	Belt (Comment: Agitate and spin)
22	Screw (Comment: Green)
23	Grounding Clip
24	Nut
25	Washer
26	Rubber Motor Mount (Comment: Lower)
27	Motor S
28	GEN 28791
29	Nut
30	Screw
31	GEN 01952A
32	GEN 27104
