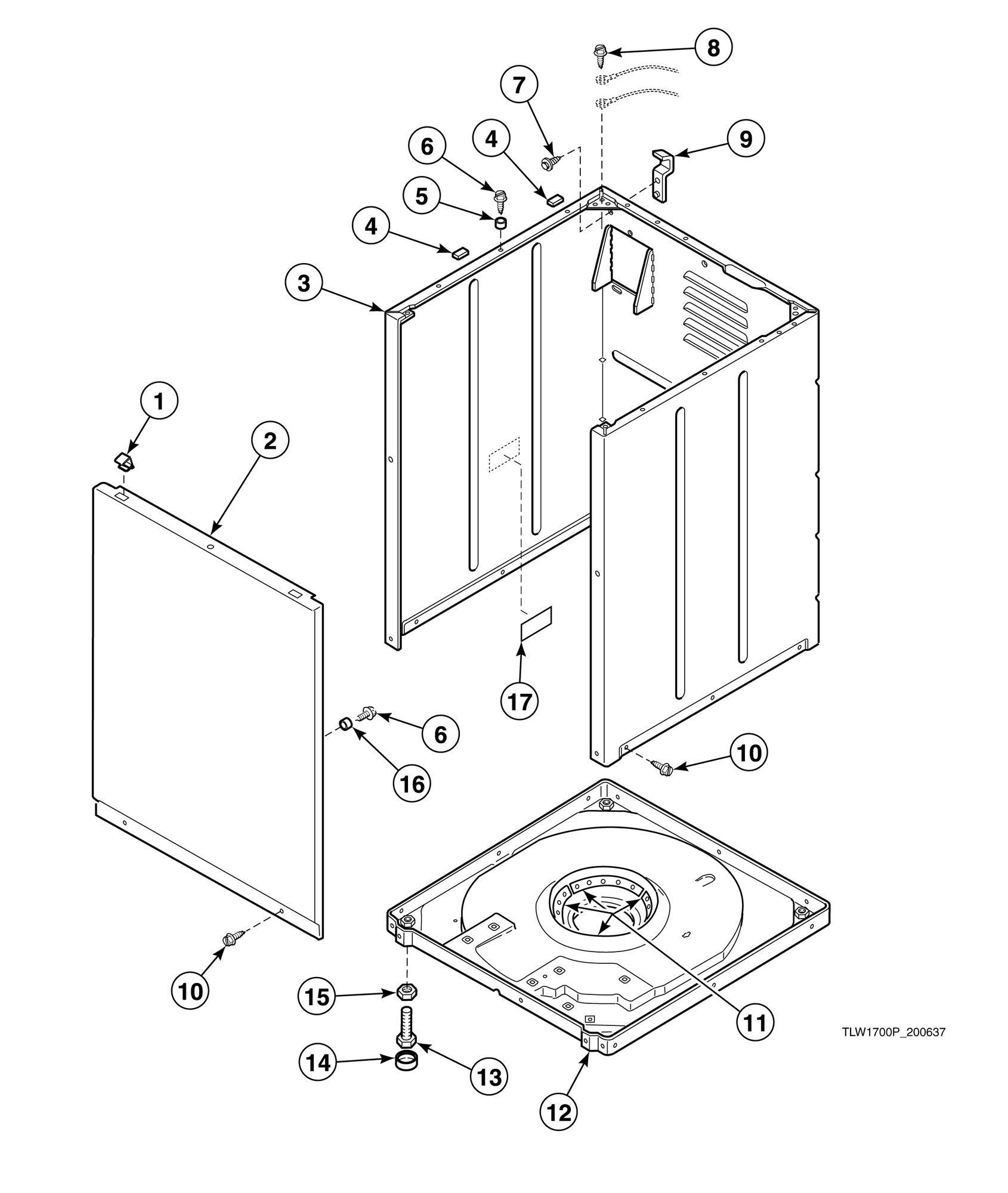

AA5222 Front Panel, Cabinet and Base

Products

PositionProduct
NASilicone Grease (Comment: For pads in base)
2Front Panel (Comment: Almond)
2Front Panel (Comment: White)
3Service Cabinet Kit (Comment: Almond)
3Service Cabinet Kit (Comment: White)
4Bumper Pad
5Panel Locator
6Screw
7Screw
8Screw
9Hold-Down Lug Hinge
11Snubber Pad Kit (Comment: Includes 4 pads)
12Base Assembly (Comment: Includes snubber pads and leveling legs)
13Leveling Leg
14Rubber Foot
15Nut
16Panel Locator
17Double-Sided Tape
