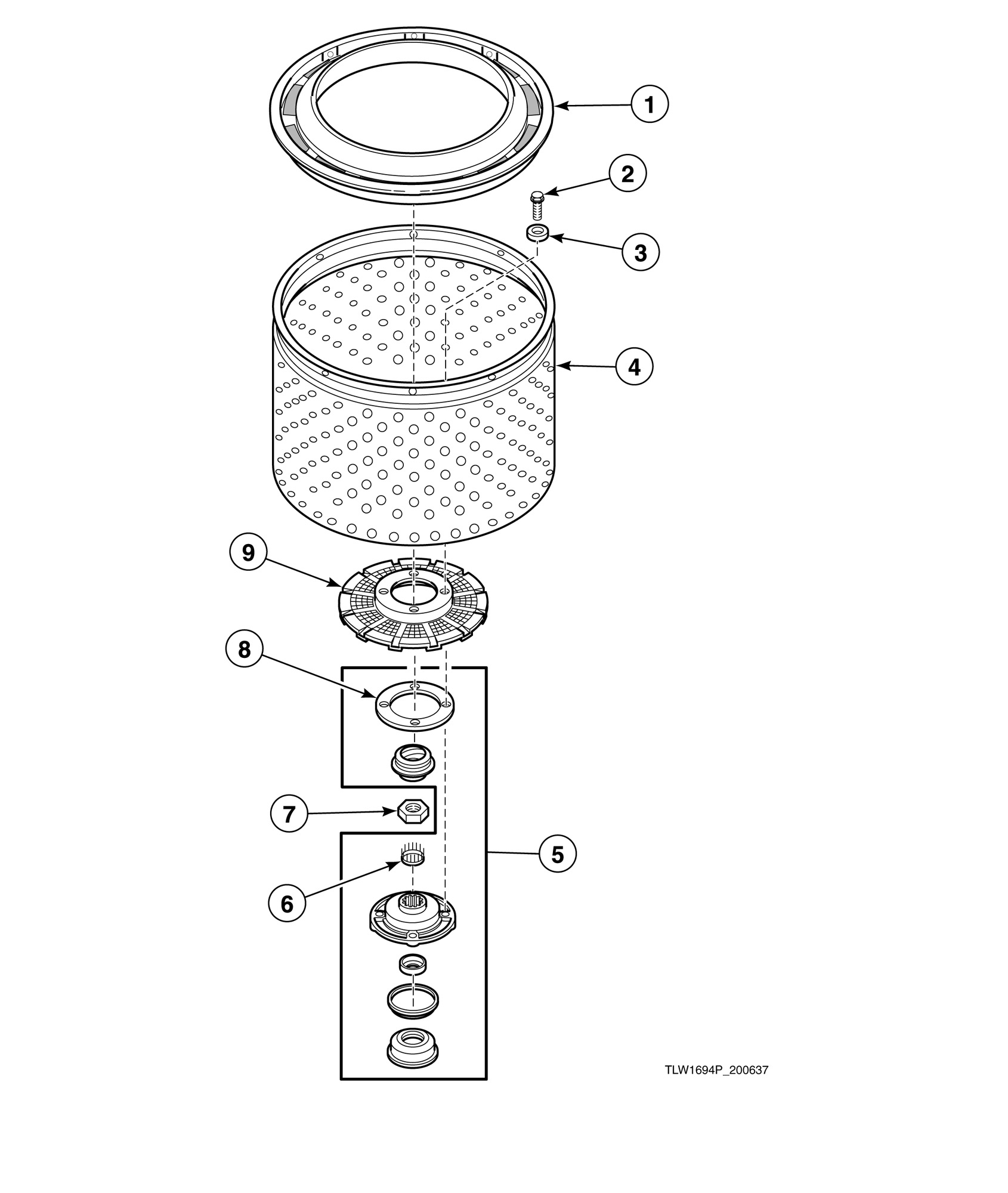

AA5222 Lint Filter, Washtub and Hub

AA5222 Lint Filter, Washtub and Hub

Written by

in

AA5222 Lint Filter, Washtub and Hub

Products

PositionProduct
1Lint Filter
2Screw
3Washer
4Tub Assembly
4Tub Assembly (Comment: Stainless steel)
4Tub Assembly (Comment: Porcelain)
5Hub and Seal Kit (Comment: Replaces 441P3, Includes 27184 Cover Gasket and 442P3 Drive Bell Seal Kit)
6Spline Insert
7Nut
8Washtub Gasket (Comment: through Serial No. R1438801XN)
9Lint Filter (Comment: starting Serial No. R1438802XN)
