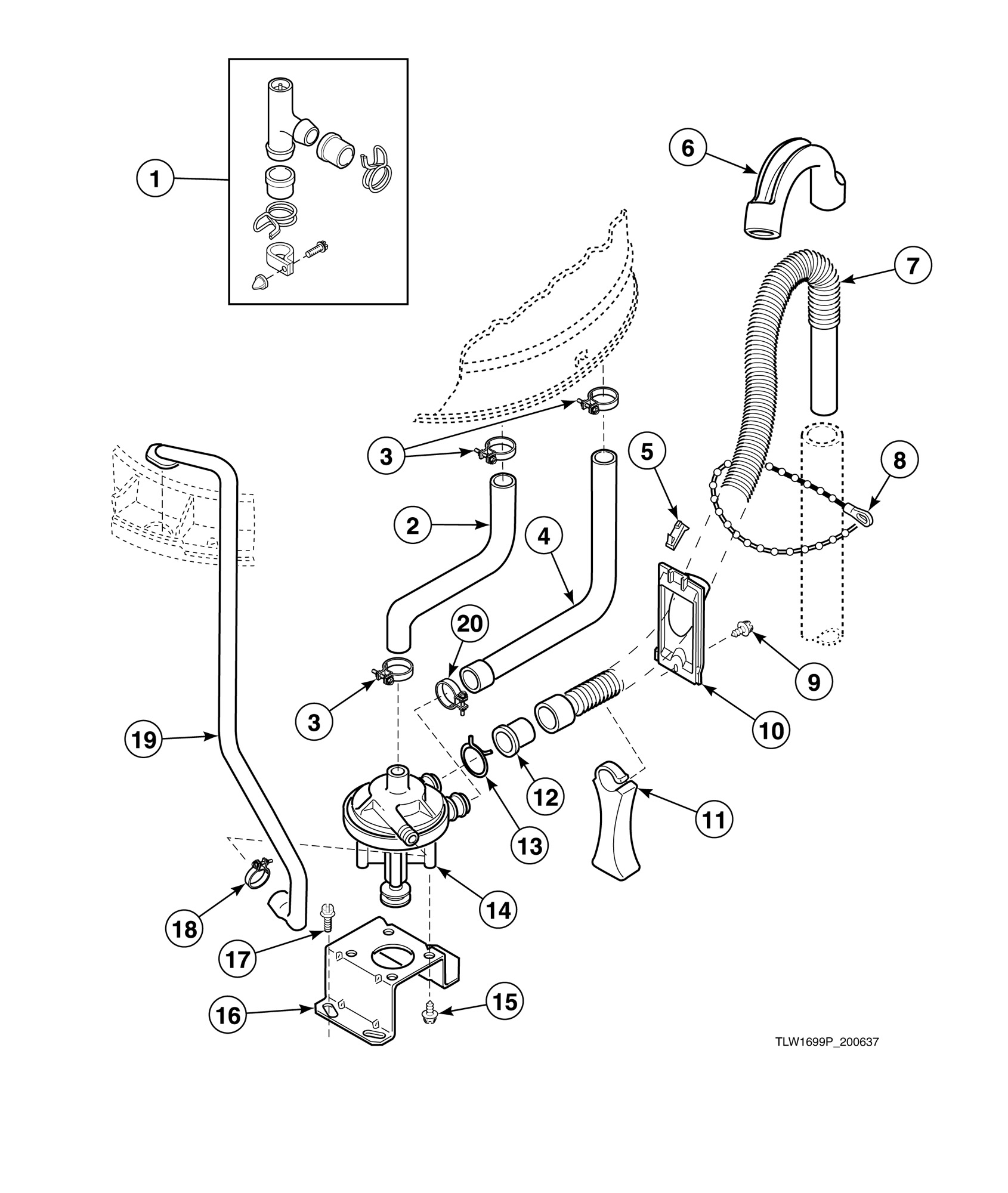

AA5222 Pump Assembly, Bracket, Hoses and Siphon Break Kit

Products

Position	Product
NA	Drain Extension Kit
1	Siphon Break Kit (Comment: Must be installed in drain hose if the drain receptacle is lower than the cabinet top of the washer)
2	Tub-to-Pump Hose (Comment: Models through Serial No. R1438801XN)
3	Hose Clamp
4	Drain Tub-to-Pump Hose
5	Hose Retainer Clip
6	Drain Hose Sleeve
7	Drain Hose
8	Standpipe Strap (Comment: Replaces 29999 Strap)
9	Screw
10	Hose Retainer (Comment: Mounts to rear of washer)
11	Hose Support (Comment: Mounts to base of washer)
12	Hose Adapter
13	Hose Clamp
14	Pump Assembly (Comment: starting Serial No. R1438802XN)
14	Pump Assembly (Comment: through Serial No. R1438801XN)
15	Screw
16	Pump Mounting Bracket
17	Screw
18	Hose Clamp
19	Recirculating Hose (Comment: Models through Serial No. R1438801XN)
20	Hose Clamp
