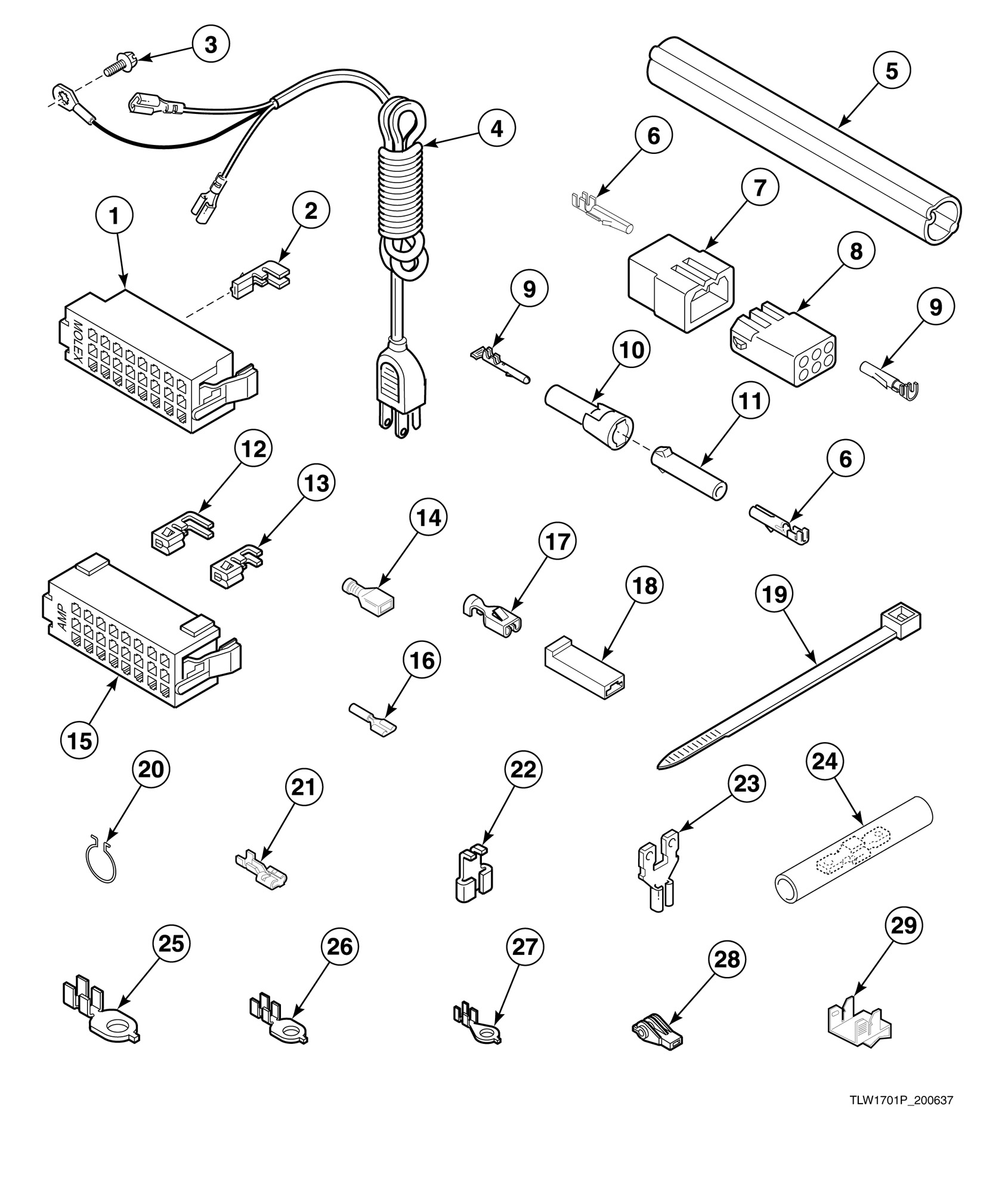

AA6121 Power Cord and Wire Terminals

Products

PositionProduct
124 Position Housing (Comment: Right)
124 Position Housing (Comment: Left)
2Female Terminal (Comment: Used for 1 or 2 wire application)
3Screw (Comment: Green)
4Lead-In Cord
5Wire Harness Enclosure (Comment: Models starting Serial No. R1339650XG and continuing through R1566483YG)
6Male Pin Terminal
76 Circuit Plug
86 Circuit Receptacle
9Female Pin Terminal
101 Circuit Plug
11Molex Receptacle
12Female Terminal (Comment: 2 wire)
13Female Terminal (Comment: 1 wire)
14Insulated Female Terminal (Comment: 3/16 inch)
14Ultra Pod Terminal (Comment: 1/4 inch)
1524 Position Housing
16Pre-Insulated Spade Terminal (Comment: 18 gauge)
16GEN 00215
17GEN 00115
18GEN 90789
19Harness Strap
20Wire Clip
21Female Spade Terminal (Comment: 1/4 inch, (2) 18 gauge wires)
21Female Spade Terminal (Comment: 1/4 inch, (1) 18 gauge wire)
22Female Flag Terminal
23Terminal Adapter
24Connector
25Ring Terminal (Comment: 1/4 inch ring)
26Ring Terminal (Comment: No. 10, (2) 18 gauge wire
27Ring Terminal (Comment: No. 10, (1) 18 gauge wire)
28GEN 70210
29Grounding Clip
