AA6121 Pump Assembly, Bracket, Hoses and Siphon Break Kit

Products

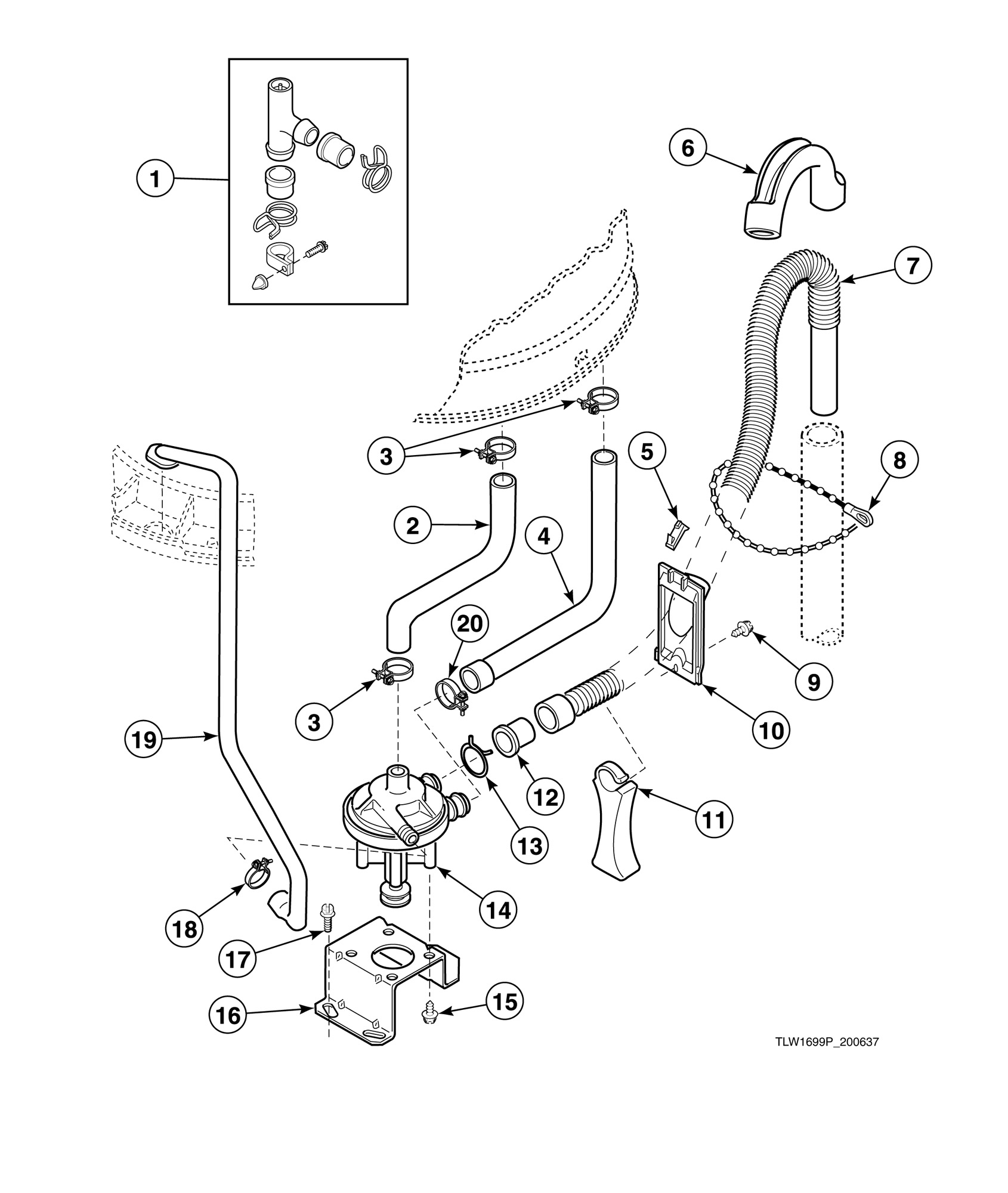

PositionProduct
NADrain Extension Kit
1Siphon Break Kit (Comment: Must be installed in drain hose if the drain receptacle is lower than the cabinet top of the washer)
2Tub-to-Pump Hose (Comment: Models through Serial No. R1438801XN)
3Hose Clamp
4Drain Tub-to-Pump Hose
5Hose Retainer Clip
6Drain Hose Sleeve
7Drain Hose
8Standpipe Strap (Comment: Replaces 29999 Strap)
9Screw
10Hose Retainer (Comment: Mounts to rear of washer)
11Hose Support (Comment: Mounts to base of washer)
12Hose Adapter
13Hose Clamp
14Pump Assembly (Comment: starting Serial No. R1438802XN)
14Pump Assembly (Comment: through Serial No. R1438801XN)
15Screw
16Pump Mounting Bracket
17Screw
18Hose Clamp
19Recirculating Hose (Comment: Models through Serial No. R1438801XN)
20Hose Clamp
