AA6221 Transmission Assembly and Balance Ring

AA6221 Transmission Assembly and Balance Ring

Written by

in

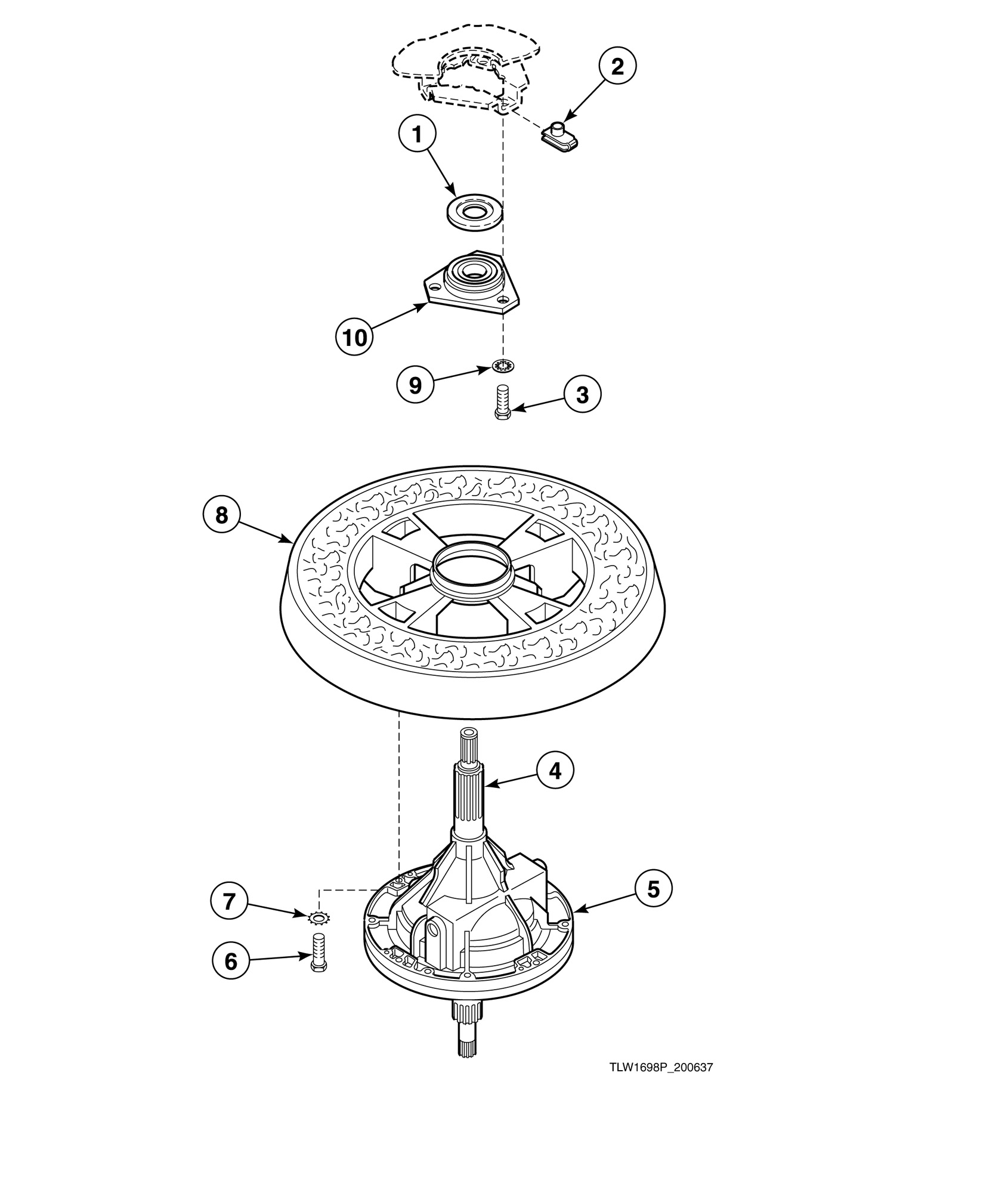

AA6221 Transmission Assembly and Balance Ring

Products

PositionProduct
1Flinger
2Nut (Comment: Included with outer tub)
3Screw
4Anti-Seize Compound (Comment: Apply to motor shaft before installing blower fan assembly)
5Transmission Assembly (Comment: Replaces 30978 Transmission Assembly)
6Screw
7Washer
8Balance Ring Assembly
9Washer
10Bearing Housing Assembly (Comment: Upper)
