AA7131 Graphic Panel, Control Hood and Controls (Drawing 3 of 9)

AA7131 Graphic Panel, Control Hood and Controls (Drawing 3 of 9)

Written by

in

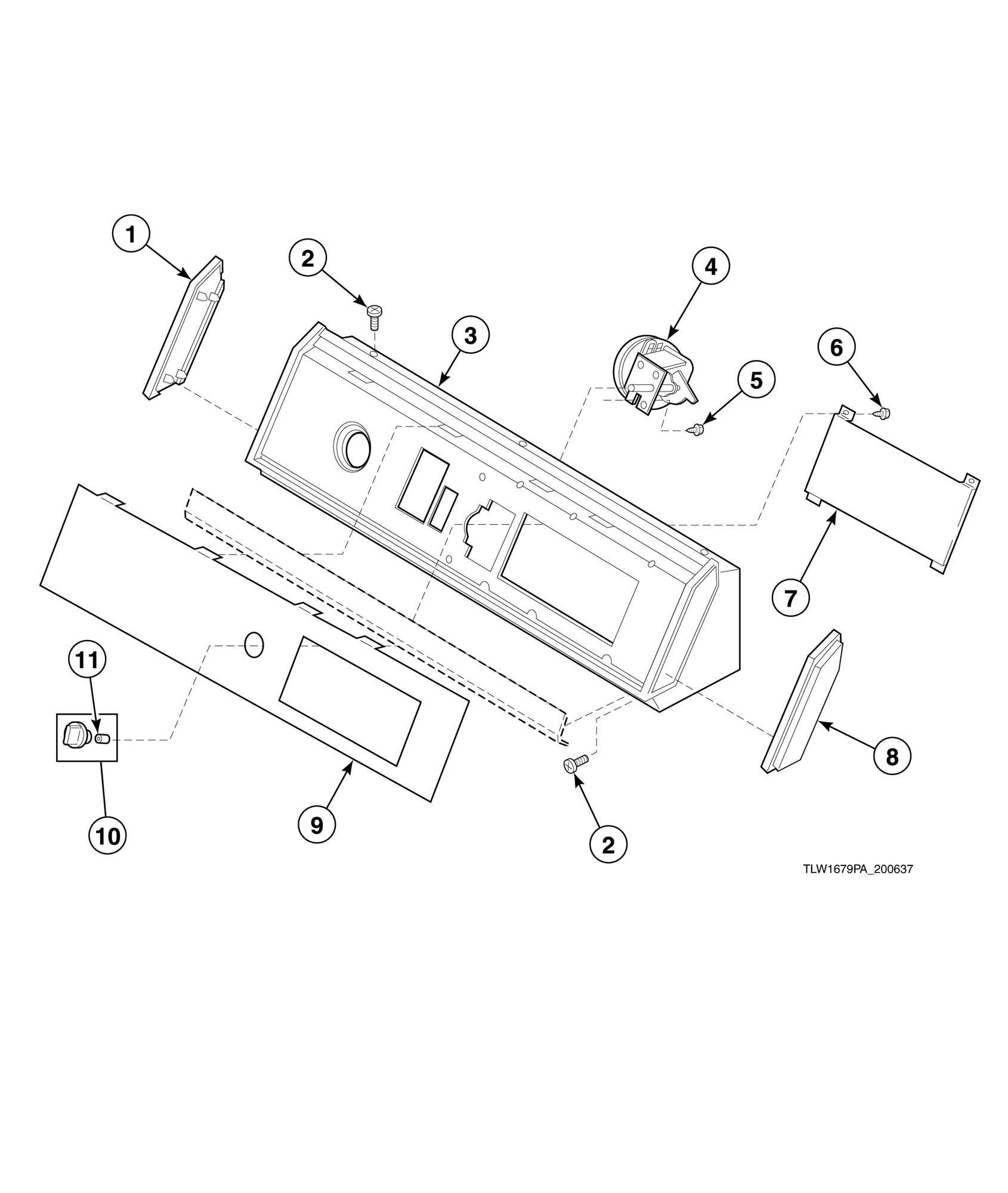

AA7131 Graphic Panel, Control Hood and Controls (Drawing 3 of 9)

Products

PositionProduct
1Control Hood Insert (Comment: Left)
2Screw
3Hood and Mounting Bracket Assembly
4Rotary Pressure Switch
5Screw
6Screw
7Electronic Control Assembly
8Control Hood Insert (Comment: Right)
9Graphic Panel
10Rotary Knob Assembly
11Retainer
