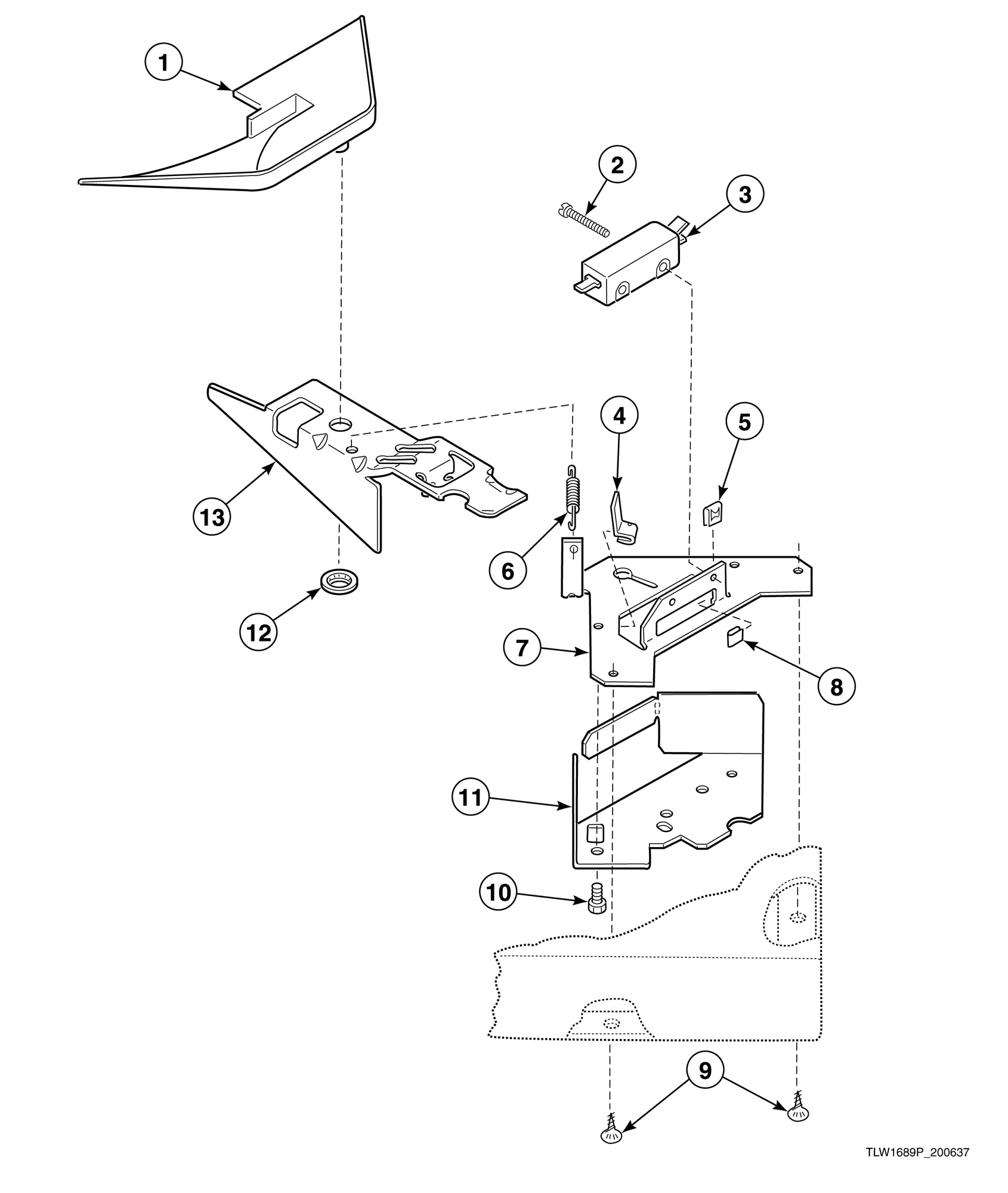

AA7131 Loading Door Switch and Bracket Assembly (All Models Except NA2110 Starting Serial No. R1624440YK)

Written by

Products

Position	Product
1	Lid Switch Shield
2	Screw
3	Switch
4	U-Clip (Comment: Models through Serial No. R1339649XG)
5	Nut
6	Switch Lever Spring
7	Out-of-Balance Switch Bracket
8	U-Clip
9	Screw
10	Screw
11	Lid Switch Guard (Comment: Models starting Serial No. R1339650XG and continuing through R1566483YG)
12	Nut
13	Out-of-Balance Switch Lever
