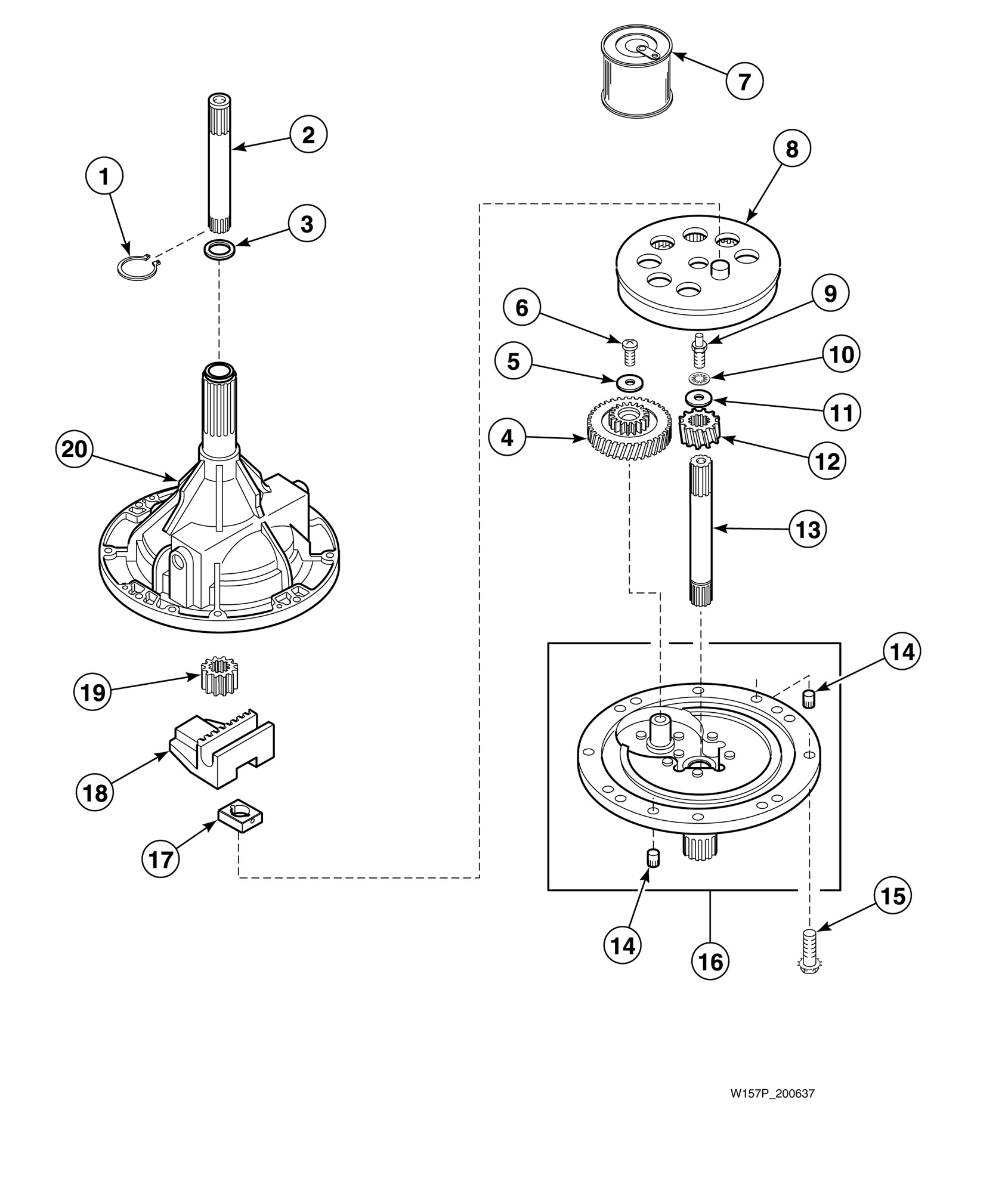

AA9131 Components for 33227P Transmission Assembly

Products

Position	Product
1	Retaining Ring
2	Output Shaft
3	Washer
4	Reduction Gear
10	Washer
11	Washer
12	Drive Pinion
13	Input Shaft
14	Dowel Pin
15	Screw
16	Transmission Cover Assembly
17	Slide
18	Rack
19	Agitator Pinion
20	Transmission Case Assembly
