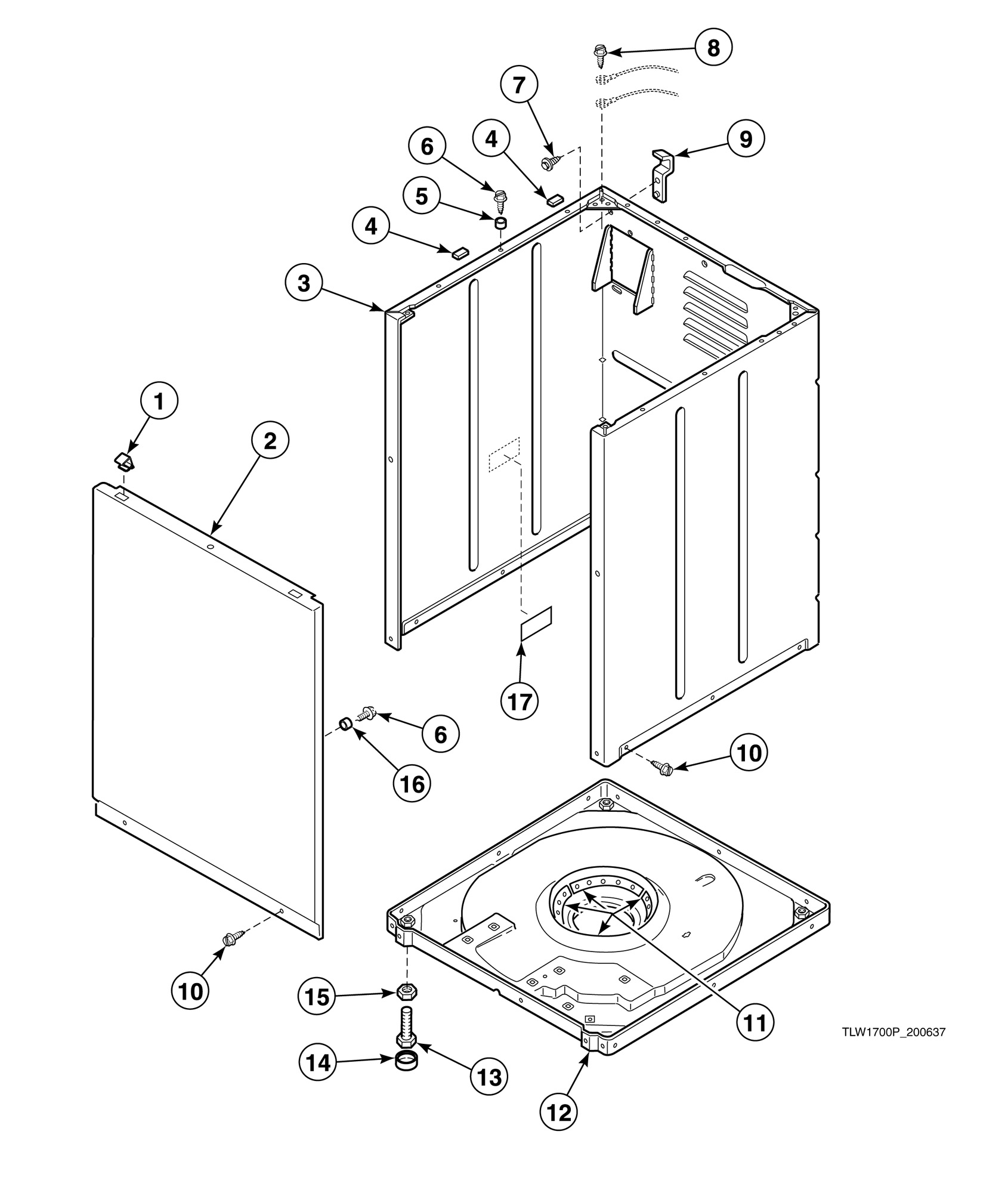

AA9231 Front Panel, Cabinet and Base

Products

Position	Product
NA	Silicone Grease (Comment: For pads in base)
1	Speed Clip
2	Front Panel (Comment: White)
2	Front Panel (Comment: Almond)
3	Service Cabinet Kit (Comment: Almond)
3	Service Cabinet Kit (Comment: White)
4	Bumper Pad
5	Panel Locator
6	Screw
7	Screw
8	Screw
9	Hold-Down Lug Hinge
10	Screw
11	Snubber Pad Kit (Comment: Includes 4 pads)
12	Base Assembly (Comment: Includes snubber pads and leveling legs)
13	Leveling Leg
14	Rubber Foot
15	Nut
16	Panel Locator
17	Double-Sided Tape
