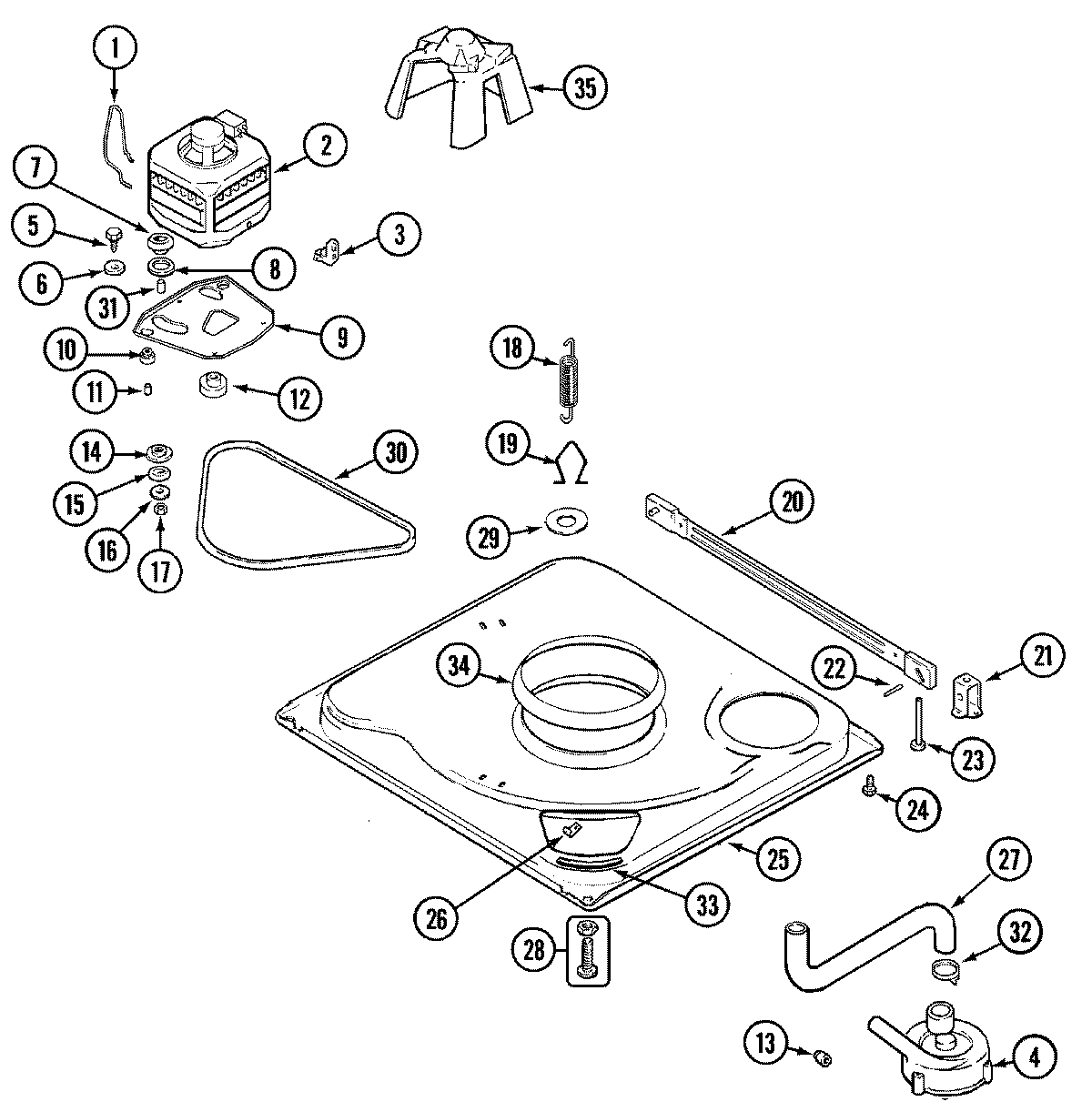

AAV1000AWW 01 – BASE

Products

Position	Product
1	WP22004376 Whirlpool Spring Motor
3	MAY 21001109
4	MAY 35-2099
5	MAY 25-7833
6	MAY 25-7834
7	WP33-9946 Whirlpool Isolator
8	MAY 35-3570
9	MAY 21001111
10	WP35-3646 Whirlpool Isolator
11	MAY 25-7831
12	WP21001950 Whirlpool Drive Motor
12	MAY 25-7117
13	MAY 35-2344
14	SLIDE, MOTOR
15	WP33-9967 Whirlpool Washer Assembly
16	MAY 25-7047
17	WPY707702 Whirlpool Locknut
18	WP21001598 Whirlpool Suspension Spring
19	WP21001166 Whirlpool Hook
20	MAY 35-2049
21	MAY 35-2046
22	MAY 35-2052
23	WP22004469 Whirlpool Leg Foot
24	WP308685 Whirlpool Microwave Screw
25	MAY 21001169
26	SPEEDNUT, MOTOR
27	WP21001915 Whirlpool Hose Tub
28	FOOT & PAD ASSEMBLY (FRONT)
29	MAY Y25-7951
30	MAY 35-2279
30	MAY 35-2512
31	MAY 25-7830
32	WP285655 Whirlpool Hose Clamp
33	MAY 35-2065
34	WP21002026 Whirlpool Snubber Assembly
35	MAY 22002721
