AAV1200AJW 08 – TRANSMISSION (SERIES 17)

AAV1200AJW 08 – TRANSMISSION (SERIES 17)

Written by

in

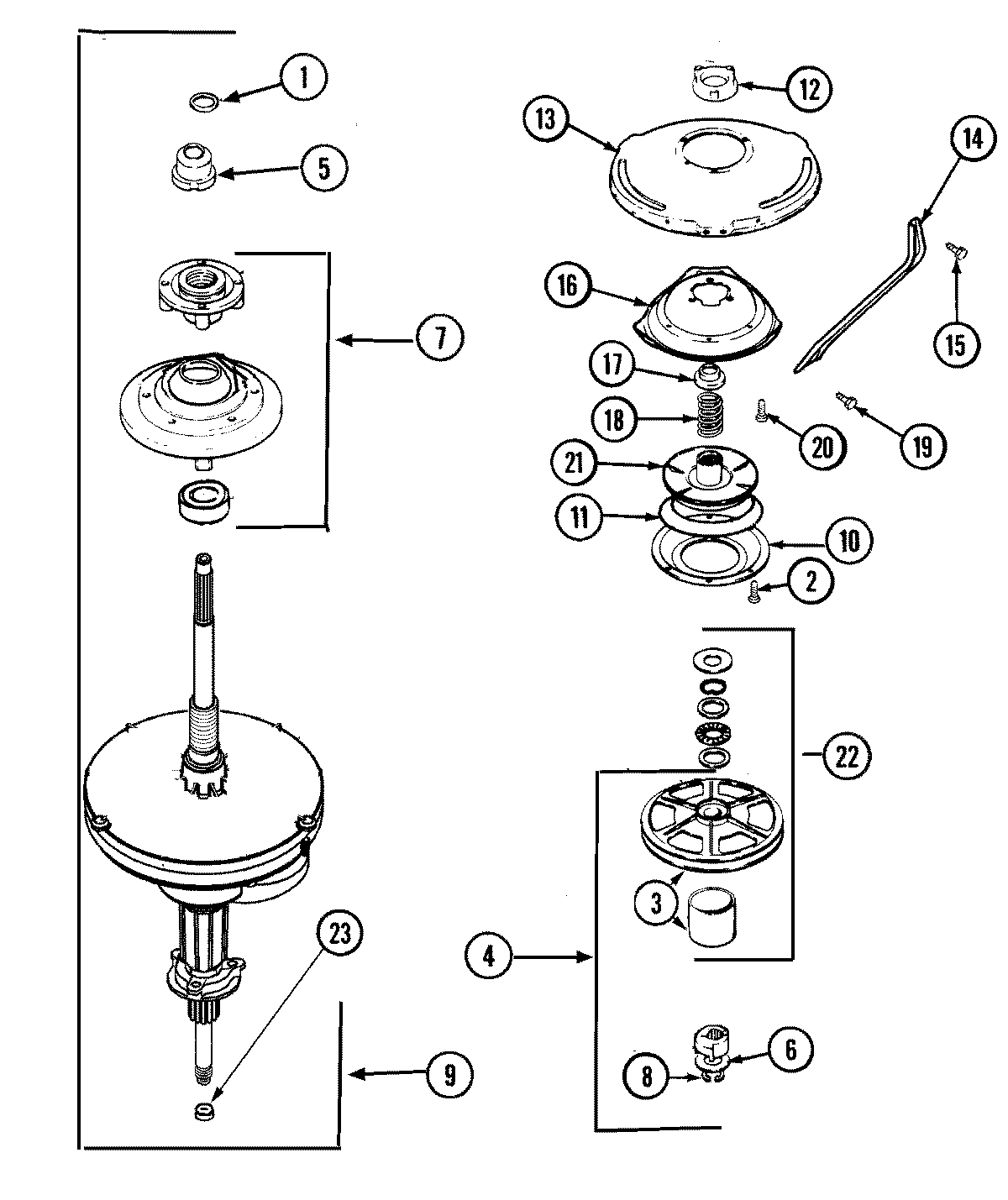

AAV1200AJW 08 – TRANSMISSION (SERIES 17)

Products

PositionProduct
1MAY 25-7941
2WP21001065 Whirlpool Screw
312002213 Whirlpool Washer Pulley and Thrust Bearing Kit
5MAY 21001533
6MAY 35-2132
6MAY 35-2082
7MAY 21001868
8WP25-7854 Whirlpool Clip
9MAY 21001867
10MAY 35-2018
11WP21002026 Whirlpool Snubber Assembly
12MAY 21001511
12MAY 35-2205
13MAY 21001518
14MAY 21001532
15MAY 21001858
16MAY 21001163
17MAY 35-2017
18WP21001910 Whirlpool Spring
19MAY 25-7930
20WP21001509 Whirlpool Screw
21MAY 35-2948
23MAY 35-2010
