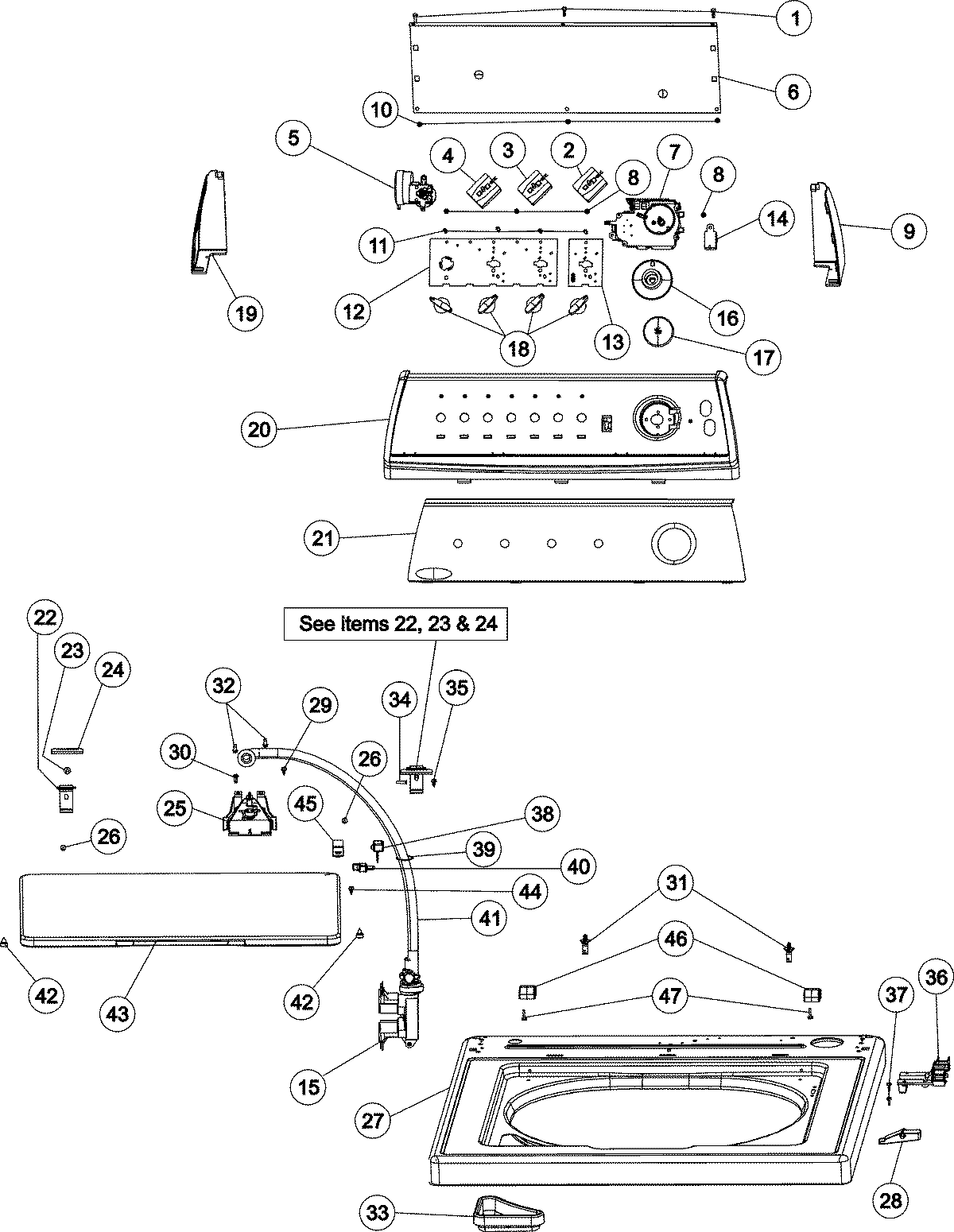

AAV8000AGW 03 – CONTROL PANEL & TOP (8000)

Products

Position	Product
1	MAY 21002224
2	MAY 31001443
3	MAY 21001491
4	MAY 21001673
5	MAY Y2201474
6	MAY 21001527
7	MAY 21001701
9	MAY 21001636
12	MAY 21002067
13	MAY 21001517
14	MAY 33002252
15	WP22001196 Whirlpool Valve Water
16	MAY 21001520
17	MAY 21001526
18	MAY 21001544
19	MAY 21001629
20	MAY 21001552
21	MAY 21002155
22	35-2846 Whirlpool Hinge
23	SCREW
24	MAY 35-4128
25	MAY 21002032
27	MAY 21001602
28	MAY 21001744
29	WP90767 Whirlpool Screw
30	MAY 31001560
31	MAY 21001857
33	MAY 21001597
34	MAY 25-7438
36	WP21001135 Whirlpool Housing
37	MAY 21001136
38	WP43-0057 Whirlpool Lid Switch Actuator
39	MAY 25-7430
40	WP35-2045 Whirlpool Hinge Pin
41	12002749 Whirlpool Flume Hose Kit
42	MAY 35-0581
43	MAY 35-2026
45	MAY 21001148
46	HINGE-LID
47	WP25-7893 Whirlpool Screw
