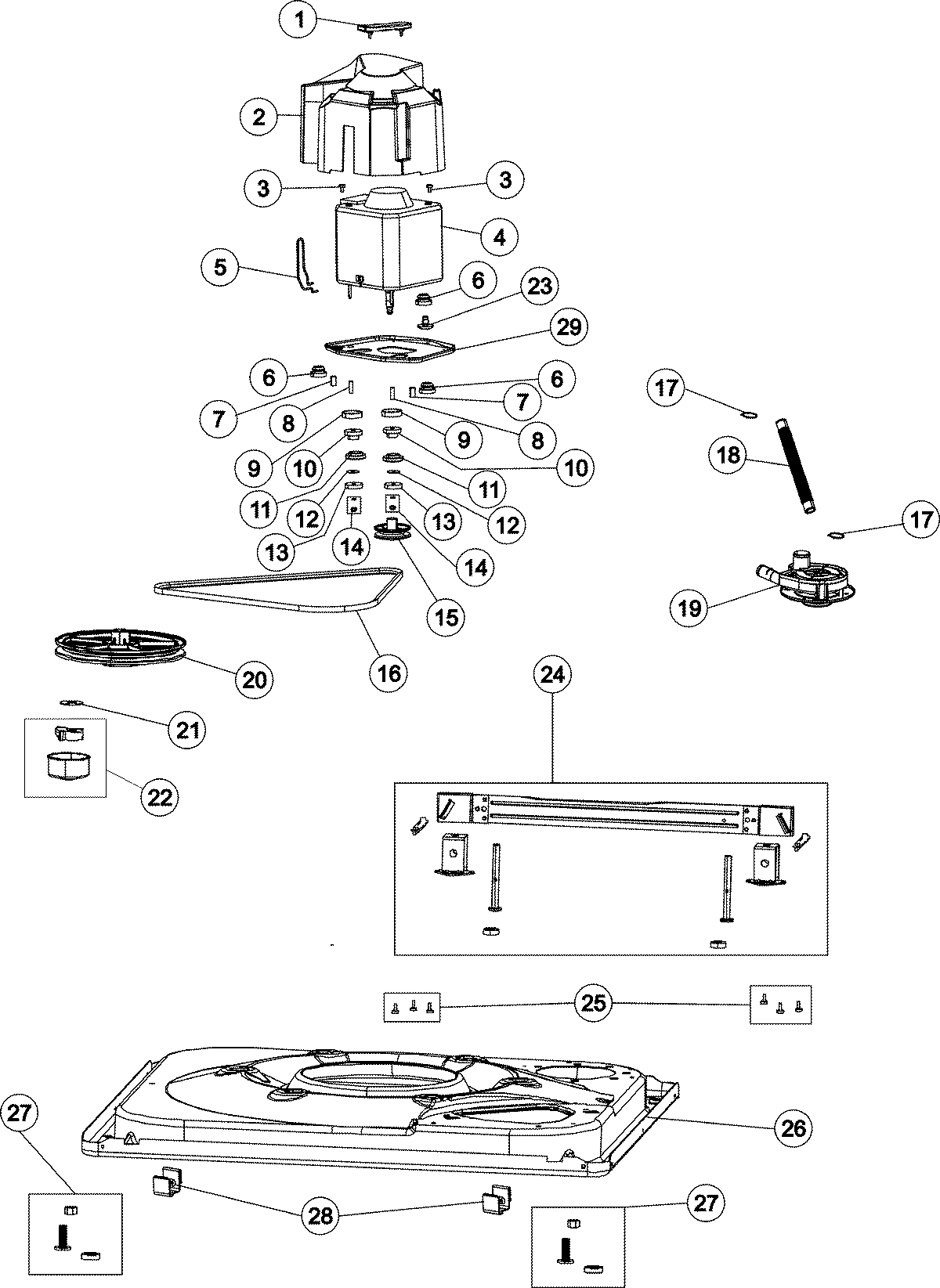

AAV8000AKW 01 – BASE & MOTOR

Products

Position	Product
1	MAY 35-2065
2	MAY 22002721
3	MAY 25-7733
4	MAY 21001632
5	WP22004376 Whirlpool Spring Motor
6	WP35-3646 Whirlpool Isolator
7	MAY 25-7831
8	MAY 25-7830
9	MAY 35-3570
10	WP33-9946 Whirlpool Isolator
11	SLIDE, MOTOR
12	MAY 25-7047
13	WP33-9967 Whirlpool Washer Assembly
14	WPY707702 Whirlpool Locknut
15	W10143344 Whirlpool Pulley Assembly
16	WP21352320 Whirlpool Washer Drive Belt
17	WP285655 Whirlpool Hose Clamp
18	WP21001915 Whirlpool Hose Tub
19	MAY 21002219
20	MAY 21001733
21	MAY 35-2132
22	12002213 Whirlpool Washer Pulley and Thrust Bearing Kit
23	FOOT SLIDE, ISOLATOR
24	MAY 21002221
25	WP489483 Whirlpool Screw
26	MAY 21001893
27	MAY 25001119
28	WP53-0120 Whirlpool Clip
29	MAY 21001366
