AAV8005EWW 02 – CABINET & FRONT PANEL – Aparts

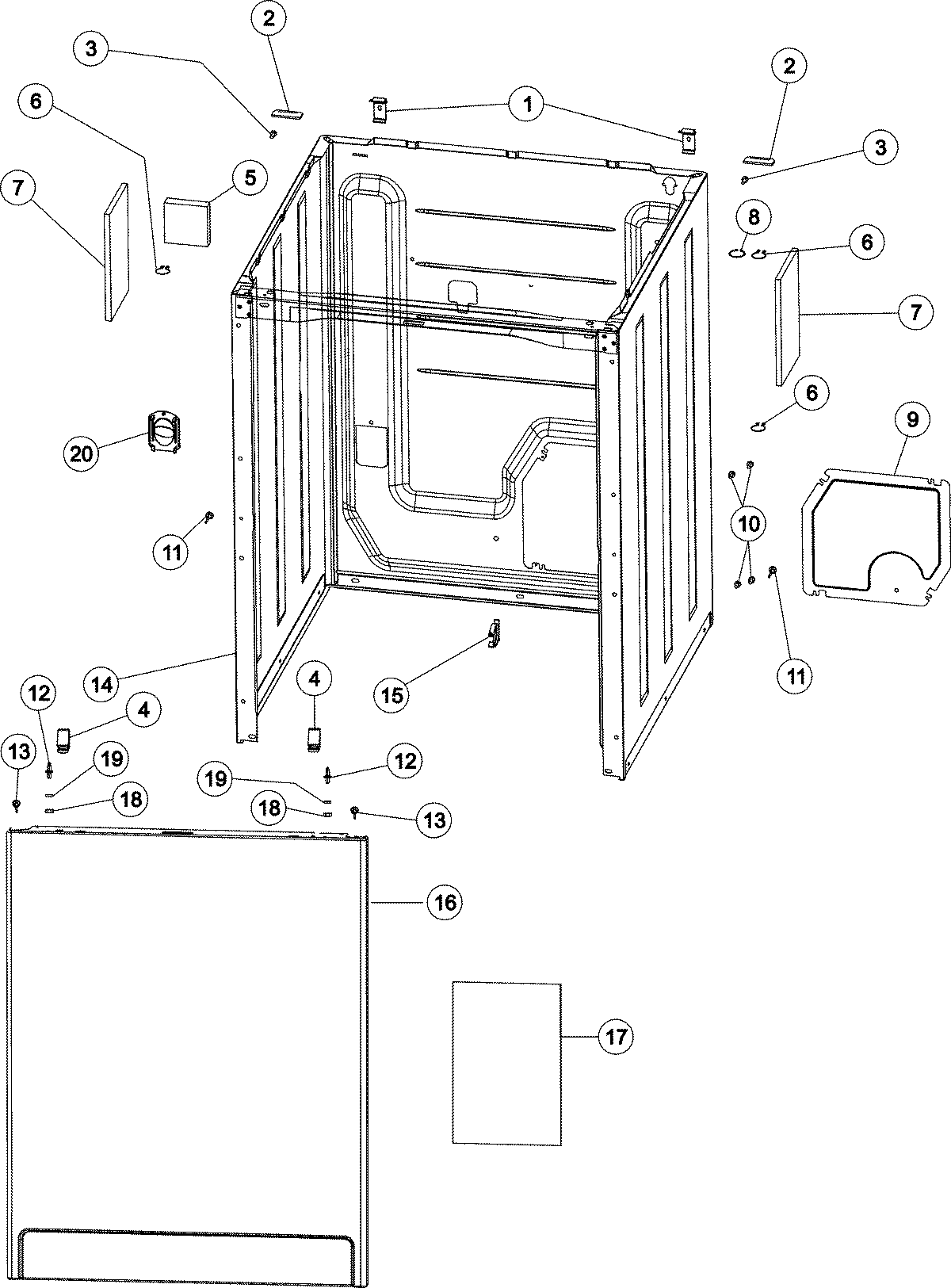

AAV8005EWW 02 – CABINET & FRONT PANEL

Products

Position	Product
1	35-2846 Whirlpool Hinge
2	MAY 35-4128
4	WP25-7220 Whirlpool Cabinet Clip
5	MAY 35-0706
6	16515 Whirlpool Clip
7	MAY 21002011
8	MAY 25-7430
9	MAY 21001876
10	MAY 25-7733
11	MAY 21001829
12	MAY 53-0643
13	SCREW
14	MAY 21001871
15	WP22002765 Whirlpool Hose Clip
16	MAY 35-2084
17	MAY 21001281
18	MAY 25-0224
19	MAY 35-4129
20	MAY 21001874
