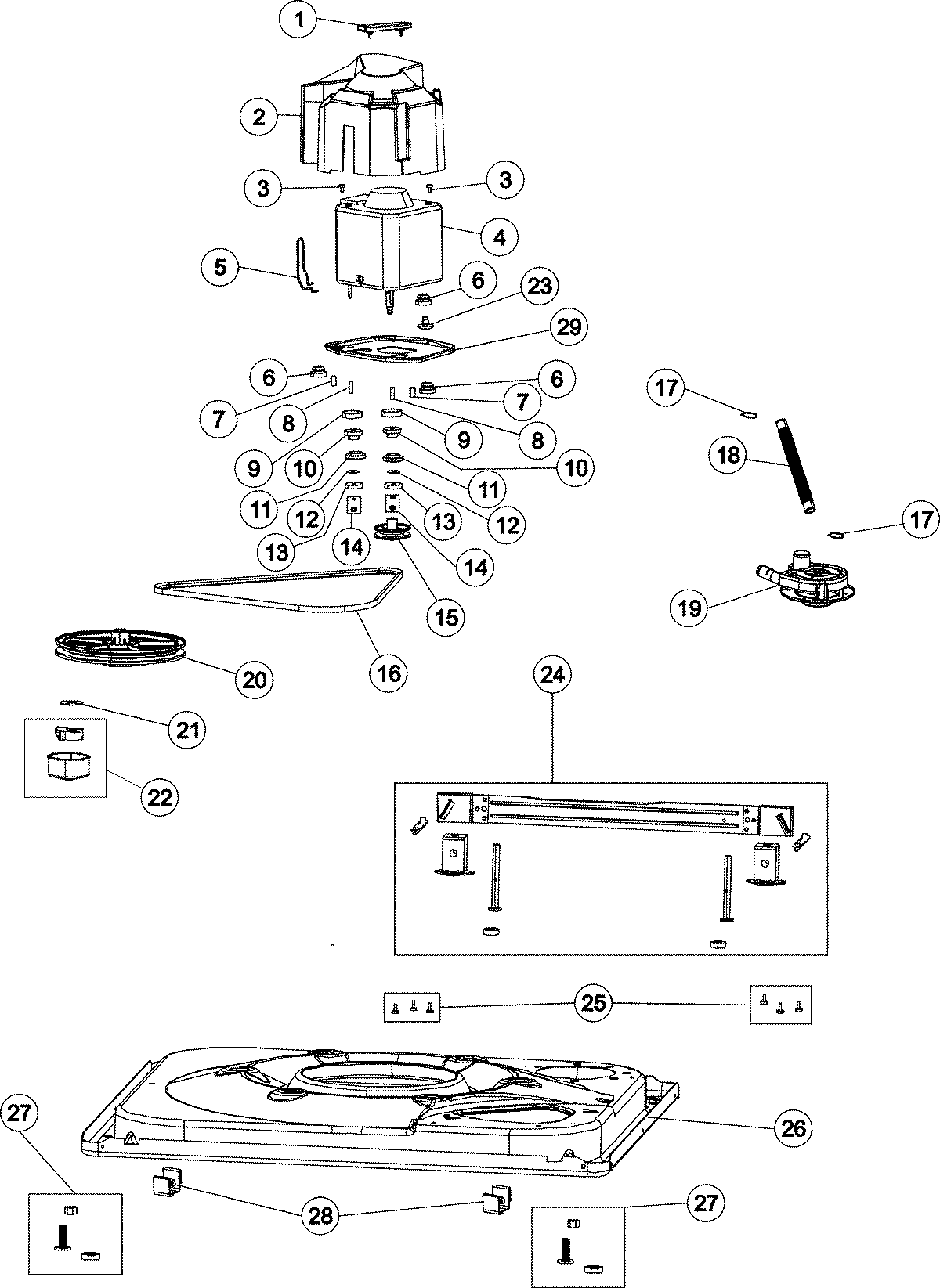

AAV9000AGW 01 – BASE & MOTOR

Products

Position	Product
1	MAY 35-2065
2	MAY 22002721
3	MAY 25-7733
4	MAY 21002235
5	WP22004376 Whirlpool Spring Motor
6	WP35-3646 Whirlpool Isolator
7	MAY 25-7831
8	MAY 25-7830
9	MAY 35-3570
10	WP33-9946 Whirlpool Isolator
11	SLIDE, MOTOR
12	MAY 25-7047
13	WP33-9967 Whirlpool Washer Assembly
14	WPY707702 Whirlpool Locknut
15	MAY 21001833
16	MAY 35-2279
17	WP285655 Whirlpool Hose Clamp
18	WP21001915 Whirlpool Hose Tub
19	MAY 21002219
20	MAY 21001733
21	MAY 35-2132
22	12002213 Whirlpool Washer Pulley and Thrust Bearing Kit
23	FOOT SLIDE, ISOLATOR
24	MAY 21002221
25	WP489483 Whirlpool Screw
26	MAY 21001893
27	MAY 25001119
28	WP53-0120 Whirlpool Clip
29	MAY 21001366
