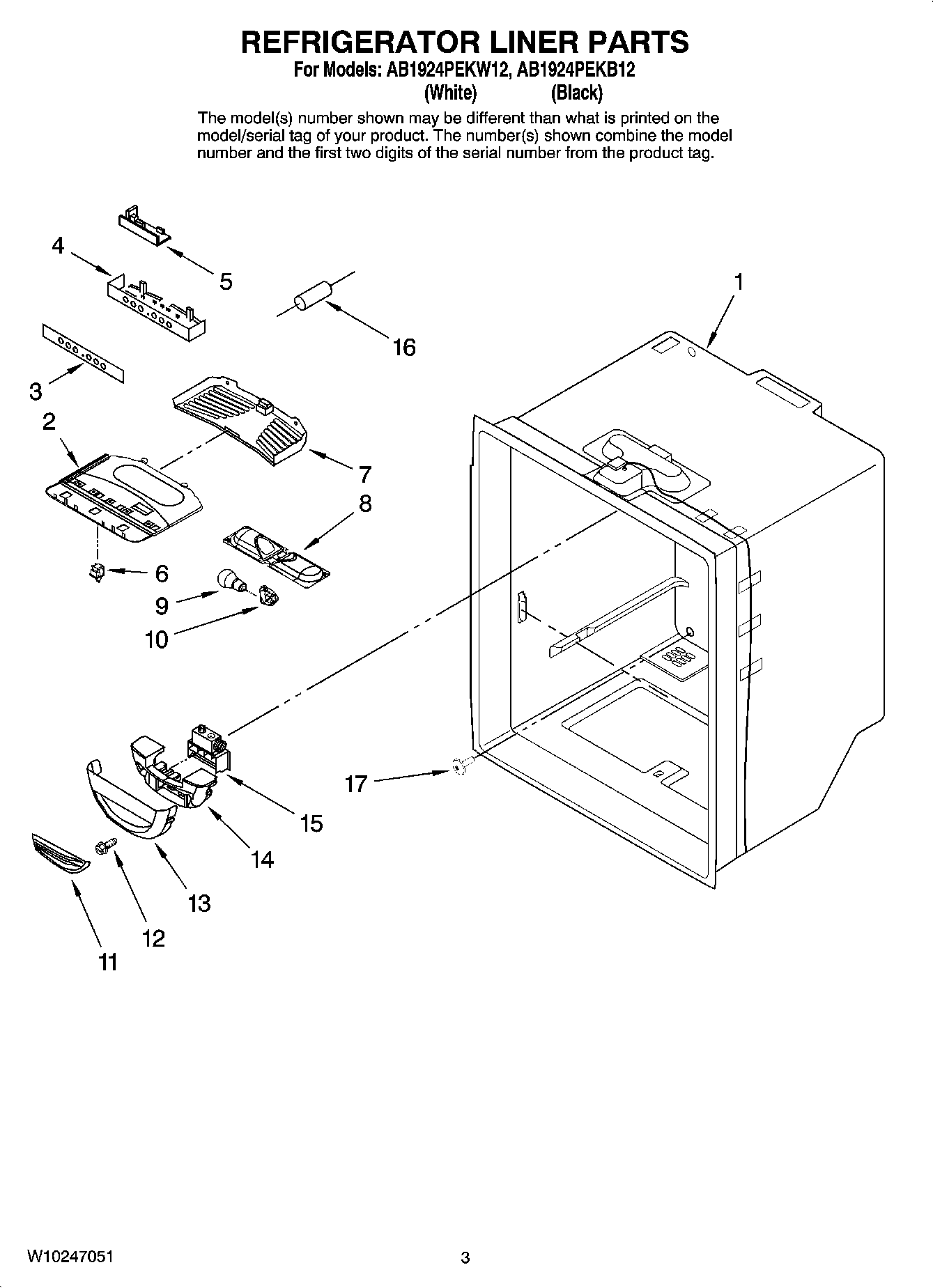

AB1924PEKB12 02 – REFRIGERATOR LINER PARTS

AB1924PEKB12 02 – REFRIGERATOR LINER PARTS

Written by

in

AB1924PEKB12 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
NIHarness, Controls (Refrigerator)
2MAY Y67003896
3MAY 67005078
4WPW10464769 Whirlpool Refrigerator Housing
5MAY W10206638
6Switch, Light (2)
7W11284721 Whirlpool Refrigerator Cover
812806601 Whirlpool Refrigerator Light Housing
9WP67002552 Whirlpool Refrigerator Light Bulb
10MAY 12570705
1167003900 Whirlpool Refrigerator Insert Damper Cover
12MAY 67006602
13WP12806701 Whirlpool Refrigerator Box Cover
14MAY 67006604
15MAY W10127430
1612002355 Whirlpool Refrigerator Thermistor Kit
17PLUG, BUTTON
